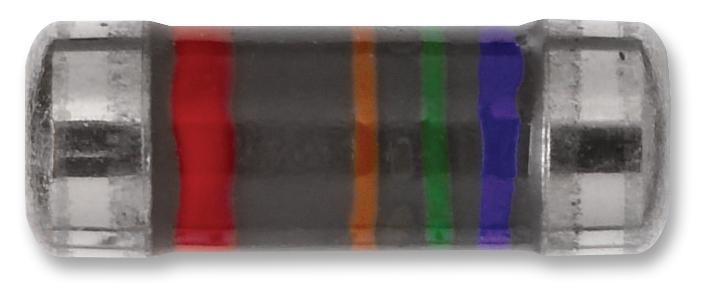

Vishay CMB02070X6809GB200 High Pulse Load Carbon Film Resistor
CMB 0207 high pulse load MELF resistors are precision, carbon film resistors designed for surge protection in automotive, telecommunication, industrial, and medical circuits. Utilizing advanced carbon film technology, these resistors withstand single pulse loads up to 3 kW and surge voltages up to 10 kV. Suitable for automatic SMD assembly, they feature excellent thermal stability, sulfur resistance, and compliance with RoHS standards. Derived from strict production controls on high-grade ceramic bodies, these resistors offer reliable performance in environments with electromagnetic interference and electro-static discharge, ensuring durability over extensive operational hours.
Vishay CMB02070X6809GB200 High Pulse Load Carbon Film Resistor Specifications:
- Resistance range: 2.2 Ω to 1.5 MΩ
- Resistance tolerance: ±5 %, ±2 %
- Rated dissipation: 1.0 W at 155°C film temperature
- Operating voltage: 500 V (AC/DC)
- Maximum film temperature: 155°C
- Operating temperature range: -85°C to 155°C
- Pulse load capability: up to 3 kW
- Surge voltage: up to 10 kV 1.2/50 μs pulse
- Durability: 8000 hours at maximum film temperature
- Dimensions: Length 5.8 mm ±0.15, Diameter 2.2 mm +0/-0.2
- Material: Dense carbon film on high-grade ceramic (Al2O3)
- Termination: Nickel-plated steel caps with matte tin finish
- Compliance: RoHS, IEC, and AEC-Q200 qualified
Buy the Vishay Series CMB 0207 High Pulse Load Carbon Film Resistor: CMB02070X6809GB200
Enhance your circuits' surge protection with Vishay Series CMB 0207 resistors. Designed for high pulse load up to 3 kW, these durable resistors are ideal for automotive, industrial, and telecommunication applications. They feature advanced carbon film technology on high-grade ceramic bodies, ensuring stability under extreme conditions. Suitable for automatic SMD assembly and reflow soldering, they comply with industry standards and RoHS regulations. Order online today to secure dependable surge protection your projects deserve, backed by Vishay’s proven reliability and quality.
Order your Vishay Series CMB 0207 high pulse load resistors today and ensure reliable surge protection in your automotive, telecommunication, or industrial electronics.
Frequently Asked Questions
Where can I buy Vishay CMB02070X6809GB200?
You can click on the BUY or RFQ button to purchase CMB02070X6809GB200 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part CMB02070X6809GB200?
You can download the CMB02070X6809GB200 datasheet or visit the Vishay website for support.
Who is the manufacturer of CMB02070X6809GB200?
Vishay
