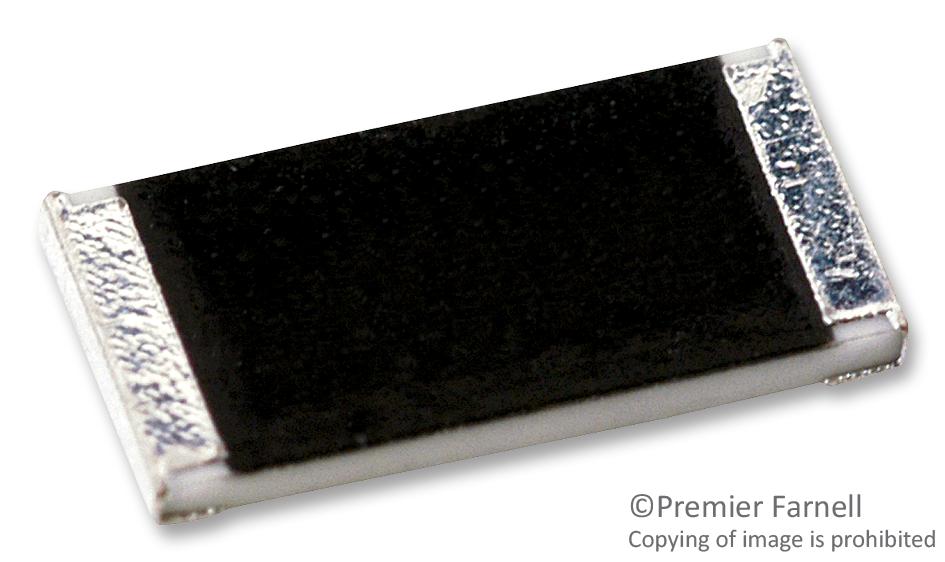

Vishay CRCW120610M0JNTA Surface-Mount Thick Film Resistor
This lead-free thick film rectangular resistor features high stability and RoHS compliance, suitable for commercial applications. It offers excellent resistance stability (AR/R < 1%) for up to 1000 hours at 70°C, with protective overglaze and nickel barrier contacts for reliable soldering. Available in standard surface-mount packages such as 0402, 0603, 0805, and 1206, it exhibits rated power dissipation from 0.068 W to 0.25 W, voltage ratings up to 200 V, and resistance ranges from 1Ω to 10MΩ. These resistors are temperature rated from -55°C to +185°C, with low failure rates and robust environmental resistance suitable for various industrial electronics and circuit protection applications.
Vishay CRCW120610M0JNTA Surface-Mount Thick Film Resistor Specifications:
- Power Ratings: 0.068 W to 0.25 W depending on case size
- Voltage Ratings: 50 V to 200 V, maximum operating voltage varies with size
- Resistance Range: 1Ω to 10MΩ, E24/E96 series
- Case Sizes: 0402, 0603, 0805, 1206 inches and millimeters
- Temperature Range: -55°C to +185°C
- Resistance Tolerance: ±1%, ±5%
- Temperature Coefficient: Up to 200 ppm/K
- Durability: Stable resistance (AR/R < 1%) for 1000 hours at 70°C
- Construction: Metal glaze on ceramic, protective overglaze, Ni barrier contacts
- Environmental Resistance: High humidity, thermal cycling, and soldering heat resistant
- Failure Rate: 0.3×10^9 hours MTBF
- Standards compliance: RoHS, IEC, EN specifications
Buy the Vishay CRCW120610M0JNTA – Reliable Thick Film Resistor for Industrial Applications
Order the Vishay CRCW120610M0JNTA surface-mount thick film resistor today to ensure high stability and durability in your industrial electronics. This RoHS-compliant component offers excellent resistance stability over time, with a wide resistance range and robust construction suitable for demanding environments. Easy to integrate into your designs, it provides reliable performance under thermal stress, humidity, and soldering processes. Purchase online now and enhance the durability and reliability of your electronic assemblies with this high-quality resistor.
Buy Vishay CRCW120610M0JNTA now and experience unmatched reliability and performance in your industrial electronic designs.
