Vishay CRHA1206AF22M0FKEF High Voltage Thick Film Chip Resistor
High voltage thick film chip resistor designed for demanding electronic applications, featuring excellent stability less than 0.5%, and qualified for AEC-Q200 standards. With models available in various sizes such as 1206, 1210, 2010, 2510, and 2512, these resistors offer resistance values from 2MΩ up to 500MΩ, and voltage ratings up to 3000 V. They are encapsulated with ruthenium oxide on a glass substrate, terminated with solder-coated nickel barriers. Ideal for high-power, high-voltage, and temperature environments, they provide outstanding electrical performance and reliability.
Vishay CRHA1206AF22M0FKEF High Voltage Thick Film Chip Resistor Specifications:
- Size: 1206, Resistance range: 2M to 100MΩ; 250M to 500MΩ for larger sizes
- Voltage: Up to 3000 V for 2512 model
- Power Rating: 0.30 W (1206), 0.45 W (1210), 0.50 W (2010), 0.60 W (2510), 1.0 W (2512)
- Resistance Tolerance: 0.5%, 1%, 2%, 5%, 10%, 20%
- Temperature Range: -55°C to +155°C
- Environmental Stability: Less than 0.5% change under life and overload conditions
- Material: Ruthenium oxide resistive element, glass encapsulation, nickel barrier termination, tin-plated finish
- Size Dimensions: 1206: 0.125 x 0.063 inches, 1210: 0.125 x 0.100 inches, 2010: 0.200 x 0.100 inches, 2510: 0.250 x 0.100 inches, 2512: 0.250 x 0.126 inches
- Operating Temperature: -55°C to +155°C
- VCR (Voltage Coefficient of Resistance): Up to 25 ppm/V for sizes up to 2010, 15 ppm/V for 2510, 10 ppm/V for 2512
- Certification: AEC-Q200 qualified, RoHS compliant
- Packaging: Tape and reel or bulk options available

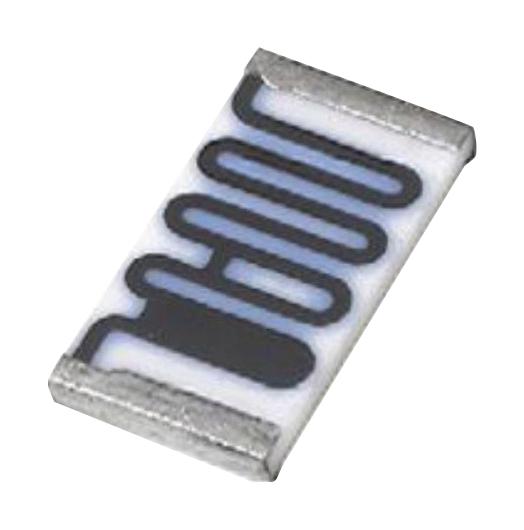

Buy the Vishay Series CRHA High Voltage Chip Resistor: CRHA1206AF22M0FKEF
Purchase the Vishay CRHA1206AF22M0FKEF high voltage thick film chip resistor online today and enjoy superior stability, high voltage handling up to 3000V, resistance up to 500MΩ, and temperature tolerance from -55°C to +155°C. Perfect for industrial, automotive, and aerospace applications needing dependable performance in demanding environments. With flexible packaging options, long-term stability, and RoHS compliance, this resistor ensures your projects meet quality standards efficiently. Order now to enhance your electronic designs with durable, high-performance resistors.
Buy Vishay CRHA1206AF22M0FKEF high-voltage thick film resistor now and experience unmatched reliability and thermal stability for your demanding electronic projects.
Frequently Asked Questions
Where can I buy Vishay CRHA1206AF22M0FKEF?
You can click on the BUY or RFQ button to purchase CRHA1206AF22M0FKEF from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part CRHA1206AF22M0FKEF?
You can download the CRHA1206AF22M0FKEF datasheet or visit the Vishay website for support.
Who is the manufacturer of CRHA1206AF22M0FKEF?
Vishay
