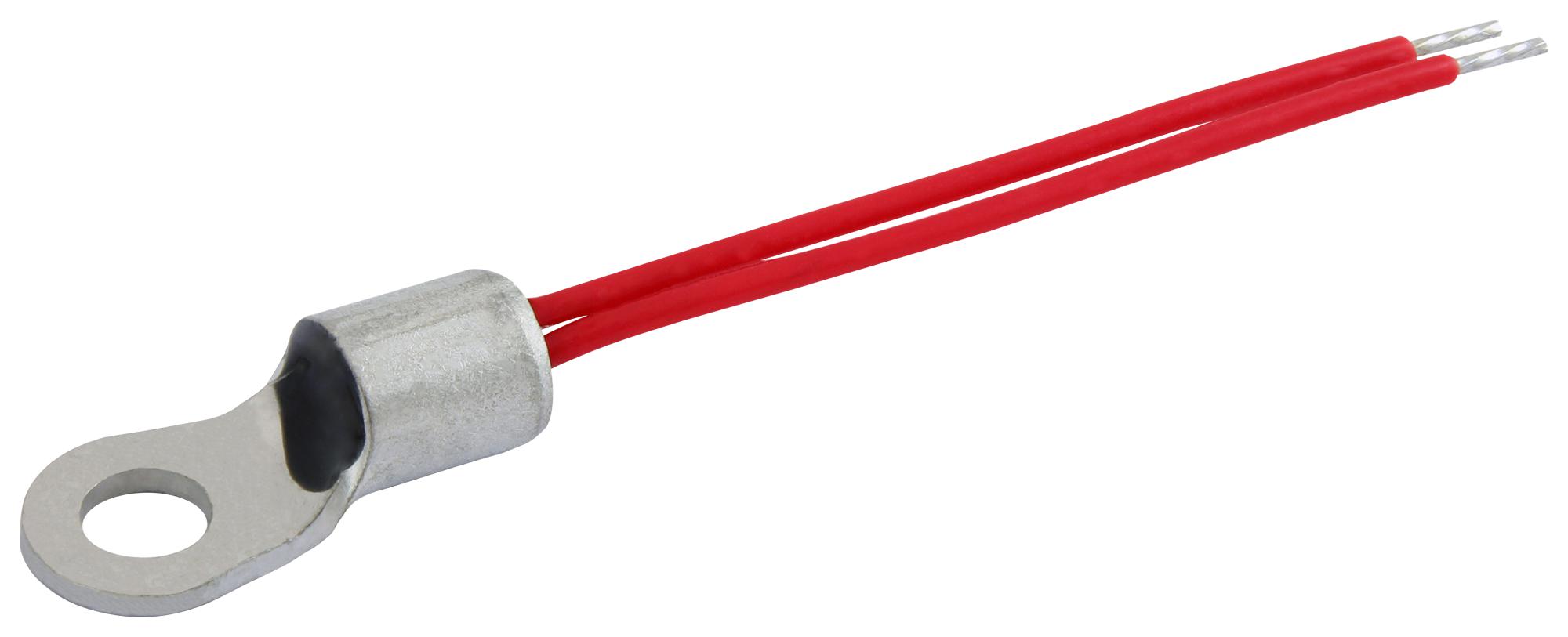

Vishay NTCALUG54A103H151A Temperature Sensor
The NTCALUG54A103H151A is a rugged, M5 mounted NTC thermistor sensor designed for surface sensing and thermal contact applications. Featuring a 10K resistance at 25°C, it is soldered to silver-plated copper leads with PTFE insulation and attached to a tin-plated copper ring lug, ensuring durability and reliable electrical insulation. Suitable for use in harsh environments, it is RoHS compliant, UL recognized, and qualified under the AEC-Q200 standard. The device is ideal for electrical and electronic applications requiring accurate temperature measurement and excellent thermal contact.
Vishay NTCALUG54A103H151A Temperature Sensor Specifications:
- Resistance value at 25 °C: 10K ohms
- Tolerance on Resistance: ±2%
- B parameter at 25/85°C: 3435 to 3084 K
- Tolerance on B parameter: +0.5 to -1 %
- Operating temperature range: -40 to +150 °C
- Dissipation factor at 23 mW/K
- Thermal time constant: 275 s
- Voltage between terminals: 1800 Vac
- Material: PTFE insulation, copper leads, epoxy coating
- Mounting: M5 stud screw
- Cable length options: 38 mm, 150 mm, 350 mm
- RoHS and UL compliant, AEC-Q200 Grade 1
- Ideal for surface sensing and thermally contacting applications
- Operating in electrical environments up to 600 V
Buy the Vishay Series NTC Thermistors: NTCALUG54A103H151A
Purchase the Vishay NTCALUG54A103H151A today and ensure precise temperature measurement with rugged construction and easy mounting. Perfect for surface sensing in demanding environments, this sensor features a 10K resistance at 25°C, PTFE insulation, and a durable copper ring lug. Its RoHS compliance and UL recognition guarantee safety and quality. Enhance your electronic or industrial systems by ordering this reliable, high-performance NTC thermistor online, ensuring fast delivery and excellent support for your thermal management needs.
Buy Vishay NTCALUG54A103H151A now and experience unmatched reliability and performance in surface sensing temperatures.
Frequently Asked Questions
Where can I buy Vishay NTCALUG54A103H151A?
You can click on the BUY or RFQ button to purchase NTCALUG54A103H151A from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part NTCALUG54A103H151A?
You can download the NTCALUG54A103H151A datasheet or visit the Vishay website for support.
Who is the manufacturer of NTCALUG54A103H151A?
Vishay
