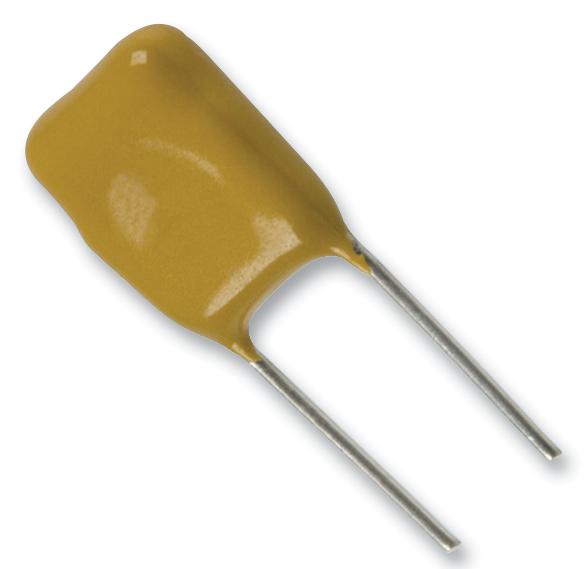

Vishay K103K15X7RF5UL2 Radial Leaded Ceramic Capacitor
The Vishay K103K15X7RF5UL2 is a radial leaded multilayer ceramic capacitor suitable for a wide range of general-purpose applications. This capacitor features high capacitance in a compact size, ensuring efficient performance in space-constrained designs. It exhibits high reliability and is available with different dielectric options (C0G, X7R, Y5V) to meet diverse application requirements. The capacitor's construction includes a general-purpose MLCC and tinned copper clad steel wire leads, offering excellent conductivity and durability. It is commonly used in temperature compensation circuits, coupling and decoupling applications, and other electronic devices.
Vishay K103K15X7RF5UL2 Radial Leaded Ceramic Capacitor Specifications:
- Description: Radial Leaded Multilayer Ceramic Capacitors
- Features: High capacitance with small size, High reliability, Crimp and straight leadstyles
- Applications: Temperature compensation, Coupling and decoupling
- Ceramic Class: 1, 2, 3
- Ceramic Dielectric: C0G, X7R, Y5V
- Voltage (VDC): 50, 100, 200, 500
- Min. Capacitance (pF): 10, 33
- Max. Capacitance (pF): 10000, 5600, 3900, 1800
- Mounting: Radial
- Capacitance Range: 10 pF to 1 μF
- Tolerance on Capacitance: ± 5 %, ± 10 %, ± 20 %, + 80 %/- 20 %
- Operating Temperature Range: - 55 °C to + 125 °C (C0G, X7R), - 30 °C to + 85 °C (Y5V)
- Rated Voltage: 50 VDC, 100 VDC, 200 VDC, 500 VDC
- Temperature Characteristics: Class 1: C0G, Class 2: X7R, Class 3: Y5V
- Test Voltage: 50 VDC and 100 VDC: 250 % of rated voltage, 200 VDC: 150 % of rated voltage + 100 VDC, 500 VDC: 130 % of rated voltage + 100 VDC
- Climatic category: Class 1 and 2: 55/125/21, Class 3: 30/85/21
- Approvals: EIA 198, IEC 60384-9
- Lead Wires: 0.5 mm tinned copper clad steel wire
- Lead Spacing: 2.5 mm, 5.0 mm
- Insulation Resistance at 500 VDC: 50 VDC and 100 VDC: 100 G or 1000 F, 200 VDC and 500 VDC: 10 G or 100 F
- Dissipation Factor: Class 1: 0.1 % max., Class 2: 2.5 % max., Class 3: 5 % max.
- Coating: Yellow colored flame retardant epoxy resin (UL 94 V-0)
Buy the K103K15X7RF5UL2 VISHAY Radial Leaded Ceramic Capacitor | myMectronic
Purchase the Vishay K103K15X7RF5UL2 radial leaded ceramic capacitor securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Vishay K103K15X7RF5UL2?
You can click on the BUY or RFQ button to purchase K103K15X7RF5UL2 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part K103K15X7RF5UL2?
You can download the K103K15X7RF5UL2 datasheet or visit the Vishay website for support.
Who is the manufacturer of K103K15X7RF5UL2?
Vishay
