Vishay CRHA1206AF50M0FKEF High Voltage Chip Resistor
High voltage thick film chip resistor designed for industrial applications, qualified to AEC-Q200 standards. Features stable resistance up to 3000 V with outstanding stability below 0.5%. Constructed with ruthenium oxide resistive element, nickel barrier termination, and glass encapsulation on a 96% alumina substrate. Available in standard sizes like 1206, 1210, 2010, 2510, and 2512, with various resistance values from 2M to 500M. Durable for demanding environments with operating temps from -55°C to +155°C and tested for thermal shock, humidity, and voltage overload.
Vishay CRHA1206AF50M0FKEF High Voltage Chip Resistor Specifications:
- Resistive element: Ruthenium oxide
- Termination: Nickel barrier with solder-coating, standard in glass encapsulation
- Substrate: 96% alumina
- Operating temperature: -55°C to +155°C
- Life stability: Less than 0.5% change at full rated power
- Resistance range: 2M to 500M ohms
- Maximum working voltage: 1500V to 3000V depending on size
- Resistance tolerance: 0.5%, 1%, 2%, 5%, 10%, 20%
- Dimensions vary by size: 1206, 1210, 2010, 2510, 2512; typical length 0.125-0.250 inches
- Size-specific electrical specs: e.g., CRHA1206, 0.30 W power, 1500V, and ppm VCR up to 25

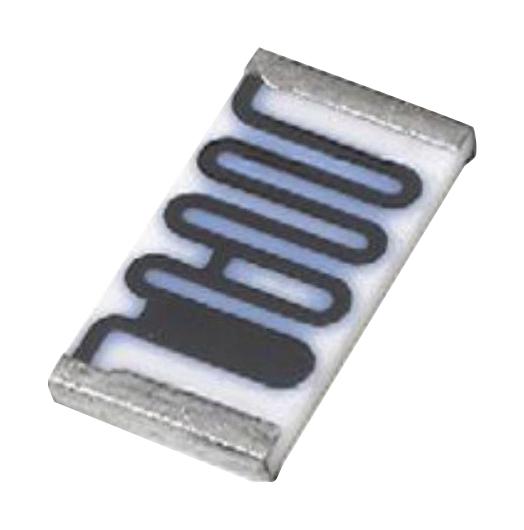

Buy the VISHAY CRHA1206 U–2013 Reliable High Voltage Resistor for Industrial Applications
Experience superior reliability with the VISHAY CRHA1206 high voltage chip resistor, expertly designed for industrial use. Capable of handling up to 3000V, this resistor offers excellent stability below 0.5% over its lifetime. Its Ruthenium oxide element and nickel barrier termination ensure durability, even in harsh conditions. Featuring a broad resistance range from 2M to 500M, it suits a wide variety of projects. Buy online now for dependable performance in critical electronic and industrial applications.
Get VISHAY CRHA1206 today—built for high voltage resilience and lasting stability in demanding industrial environments.
Frequently Asked Questions
Where can I buy Vishay CRHA1206AF50M0FKEF?
You can click on the BUY or RFQ button to purchase CRHA1206AF50M0FKEF from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part CRHA1206AF50M0FKEF?
You can download the CRHA1206AF50M0FKEF datasheet or visit the Vishay website for support.
Who is the manufacturer of CRHA1206AF50M0FKEF?
Vishay
