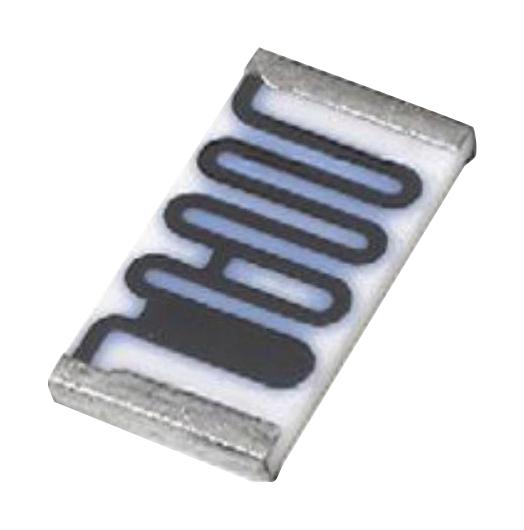

Vishay CRHA2010AF100MFKEF High Voltage Resistor
The CRHA2010 high-voltage thick film chip resistor features a Ruthenium oxide resistive element with a glass encapsulation and alumina substrate. It offers resistance values from 6M to 100M, withstands voltages up to 2000V, and has an operating temperature range of -55°C to +155°C. Designed for high stability with less than 0.5% change under full rated power, it includes a nickel barrier termination with a pure tin finish. Suitable for applications demanding high voltage and reliability in industrial and electronic circuits.
Vishay CRHA2010AF100MFKEF High Voltage Resistor Specifications:
- Resistive element: Ruthenium oxide
- Encapsulation: Glass
- Substrate material: Alumina 96%
- Termination: Nickel barrier with solder-coated finish
- Resistance range: 6M to 100M
- Maximum Voltage: 2000 V
- Operating temperature: -55°C to +155°C
- Life stability: Less than 0.5% change at full rated power
- Short time overload: Less than 0.5% resistance change
- Size: 2010 (0.200 x 0.100 inches)
- Temperature coefficient: 15 ppm/°C
- VCR: 15 ppm/v
- Mechanical robustness: Meets environmental and electrical standards
Buy the Vishay Series CRHA High Voltage Resistor: CRHA2010
Purchase the Vishay Series CRHA2010 high voltage resistor online now for reliable performance up to 2000 volts. Designed with Ruthenium oxide for stability, it withstands extreme temperatures from -55°C to +155°C. Perfect for industrial applications requiring high stability and reliability. Its robust construction includes a glass encapsulation, alumina substrate, and premium nickel barrier termination with solder coating. Secure your electronic system's performance with this durable resistor—order today for fast delivery and expert support to meet your high-voltage needs.
Order your Vishay Series CRHA2010 high voltage resistor today and ensure your circuits operate reliably under demanding high-current conditions.
Frequently Asked Questions
Where can I buy Vishay CRHA2010AF100MFKEF?
You can click on the BUY or RFQ button to purchase CRHA2010AF100MFKEF from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part CRHA2010AF100MFKEF?
You can download the CRHA2010AF100MFKEF datasheet or visit the Vishay website for support.
Who is the manufacturer of CRHA2010AF100MFKEF?
Vishay
