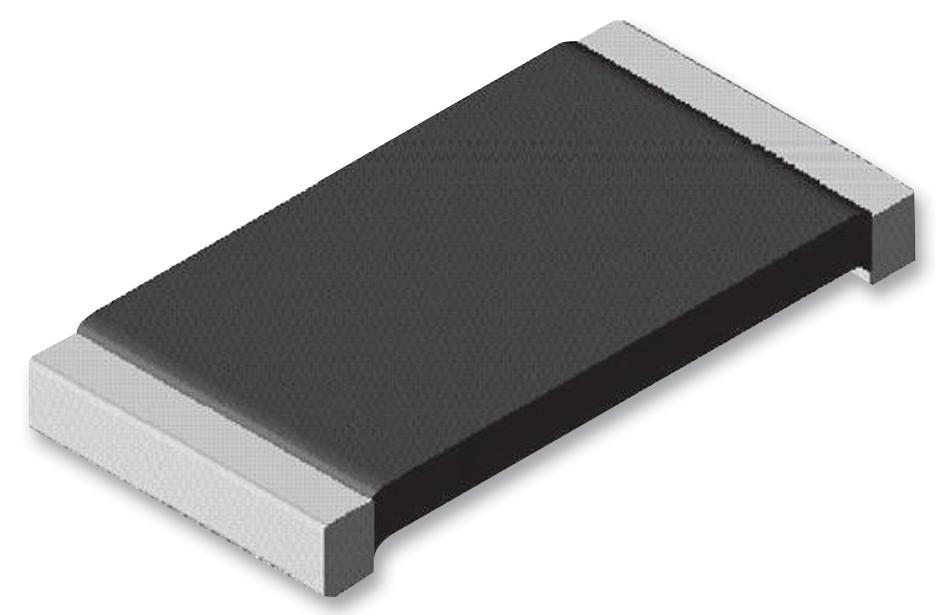

Vishay WSLP25121L000FEA High Power Surface Mount Resistor
Vishay Dale WSLP series power metal strip resistors deliver very high power ratings across small surface-mount packages, such as 2512. Designed for current sensing, pulse applications, switching, and linear power supplies, these resistors feature low resistance values down to 0.0005 Ω, low TCR below 20 ppm/°C, low inductance, and excellent frequency response up to 50 MHz. All welded construction with solid nickel-chrome or manganese-copper alloy resistive elements ensures durability and stability for demanding electronic projects.
Vishay WSLP25121L000FEA High Power Surface Mount Resistor Specifications:
- Power Rating: 3 W in 2512 package, 2 W in 2010, 1 W in 1206, 0.5 W in 0805, 0.4 W in 0603
- Resistance Range: 0.0005 Ω to 0.1 MΩ, low resistance values down to 0.0005 Ω
- Resistance Tolerance: ±0.5%, ±1.0%
- Temperature Coefficient of Resistance (TCR): < 20 ppm/°C
- Operating Temperature Range: -65°C to +170°C
- Maximum Working Voltage: specified per model
- Low Inductance: 0.5 nH to 5 nH
- Frequency Response: up to 50 MHz
- Material: Nickel-chrome or manganese-copper alloy
- Construction: Welded resistor element
- RoHS and halogen free
- Packaging: Embossed plastic or punched paper tape
Buy the Vishay Series WSLP High Power Surface Mount Resistors: WSLP25121L000FEA
Enhance your electronic projects with Vishay WSLP series high power surface mount resistors. These durable devices deliver up to 3 W power rating in a compact 2512 package, with low resistance down to 0.0005 Ω and low TCR below 20 ppm/°C. Perfect for current sensing, switching, and power supplies, they feature welded construction, excellent frequency response, and RoHS compliance. Buy online now to ensure your designs are built with reliable, high performance resistors designed for demanding applications.
Order your Vishay Series WSLP 2512 resistor today and ensure reliable, high-power performance for your current sensing and pulse applications.
Frequently Asked Questions
Where can I buy Vishay WSLP25121L000FEA?
You can click on the BUY or RFQ button to purchase WSLP25121L000FEA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part WSLP25121L000FEA?
You can download the WSLP25121L000FEA datasheet or visit the Vishay website for support.
Who is the manufacturer of WSLP25121L000FEA?
Vishay
