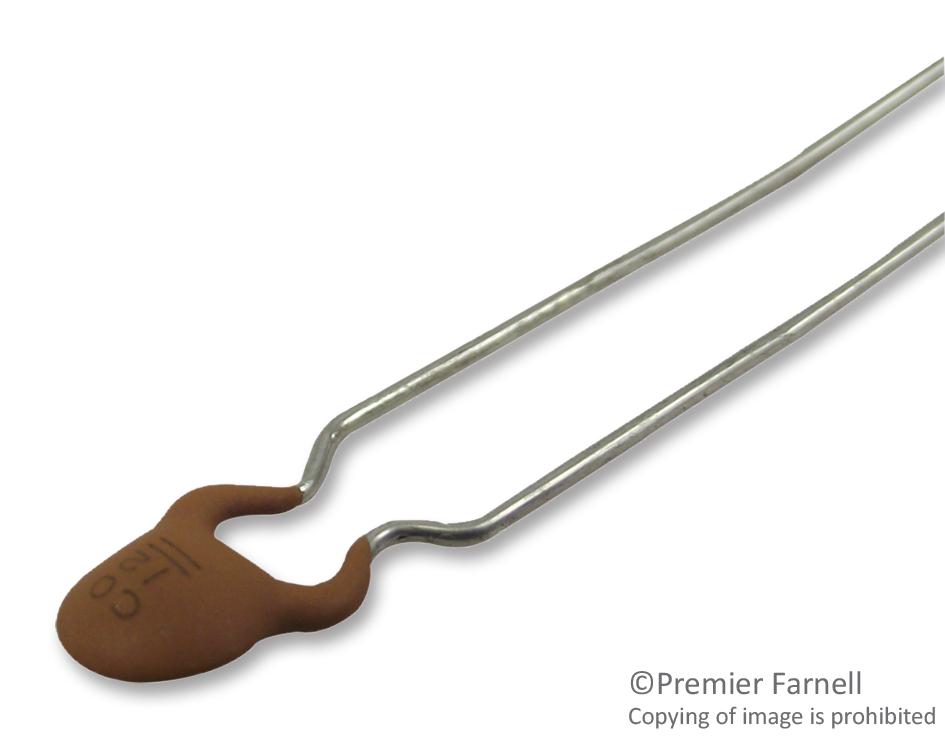

Vishay D221G39U2JH63J5R Ceramic Disc Capacitor
The ceramic disc capacitor is a Class 1, high-stability component rated at 100 Vdc with a narrow tolerance, suitable for bypassing, coupling, and resonant circuits. Featuring inward kinked leads with 5 mm or 2.5 mm spacing and encapsulated in phenolic resin, it offers low Loss (), high stability, and compact size for industrial applications. Capacitance ranges from 1.5 pF to 330 pF at 1 MHz, with high insulation resistance of 210,000 MQ, making it ideal for precision filtering and tuning in electronic circuits operating between -55°C and +125°C.
Vishay D221G39U2JH63J5R Ceramic Disc Capacitor Specifications:
- Capacitance range: 1.5 pF to 330 pF at 1 MHz, 1.2 Vams
- Rated voltage: 100 Vdc
- Insulation resistance: 210,000 MQ at 100 V
- Operating temperature: -55°C to +125°C
- Dielectric strength: 250% of rated voltage
- Lead spacing: 2.5 mm or 5 mm
- Lead diameter: 0.6 mm + 0.05 mm
- Body diameter: 11.0 mm max
- Lead length: 4 mm to 30 mm
- Encapsulation: Phenolic resin
- Tolerance: ±2%, +0.25 pF, +0.5 pF
- Temperature coefficient: in accordance with RS198
- Climatic category: 55/125/56
- Compliance: RoHS
- Mounting: Through hole
- Marking: Capacitance value and tolerance as per EIA 198
- Application: Bypassing, coupling, resonant circuits
Buy the Vishay D221G39U2JH63J5R – Reliable Ceramic Capacitor for Industrial Applications
Enhance your electronic designs with the Vishay ceramic disc capacitor, rated at 100 Vdc with narrow tolerance and high stability. Ideal for bypassing, coupling, and resonant circuits, it ensures reliable performance over a temperature range of -55°C to +125°C. Featuring small size, low losses, and RoHS compliance, this component offers excellent insulation resistance and capacitance accuracy at a frequency of 1 MHz. Perfect for precision filtering, tuning, and high-frequency applications where stability and compactness are critical.
Order your Vishay Series D221G39U2JH63J5R ceramic capacitor today and ensure high stability and precision in your electronic projects.
Frequently Asked Questions
Where can I buy Vishay D221G39U2JH63J5R?
You can click on the BUY or RFQ button to purchase D221G39U2JH63J5R from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part D221G39U2JH63J5R?
You can download the D221G39U2JH63J5R datasheet or visit the Vishay website for support.
Who is the manufacturer of D221G39U2JH63J5R?
Vishay
