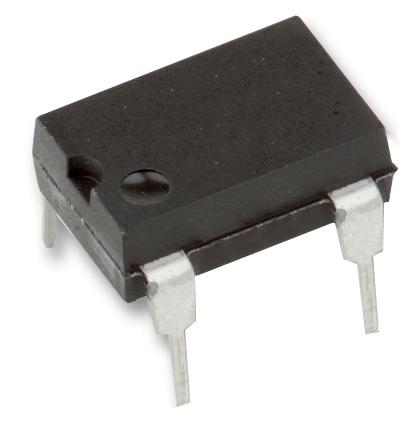

Vishay DF01ME345 Bridge Rectifier
The DF01ME345 is a miniature glass passivated single-phase bridge rectifier suitable for general purpose AC/DC conversion. Designed for printed circuit boards and automative insertion, it features high surge current capability and RoHS compliance. With a case style of DFM, it provides reliable full-wave rectification for power supplies, lighting ballasts, and telecommunications. Its industry-standard construction ensures stable performance in diverse electronic applications, with high surge current handling and UL recognition for safety and compliance. The product is ideal for various low to moderate current rectification tasks in industrial electronics and consumer devices.
Vishay DF01ME345 Bridge Rectifier Specifications:
- Device marking code: DF01M
- Maximum repetitive peak reverse voltage: 100 V
- Maximum RMS voltage: 70 V
- Maximum DC blocking voltage: 100 V
- Maximum average forward rectified current: 1.0 A at 40°C
- Peak forward surge current: 50 A
- Operating junction and storage temperature: -55°C to +150°C
- Thermal resistance junction to ambient: 15 °C/W
- Diode forward voltage drop: approximately 1.04 V at 1 A
- Reverse current: 5.0 μA at rated voltage, 125°C
- Junction capacitance: 25 pF
- Package: DFM case style
- Lead material: Matte tin plated, solderable up to 275°C for 10 seconds
- UL Recognized, RoHS compliant, suitable for automative applications
- Mounted on 0.51 x 0.51 inch copper pads, lead length approx. 0.06 inch
- Dimensions: 0.335 inches (8.51 mm) length, 0.245 inches (6.2 mm) width, height approx. 0.130 inches (3.30 mm)
Buy the Vishay Series DFM DF01M: Miniature Glass Passivated Single-Phase Bridge Rectifier
Purchase the Vishay Series DFM DF01M online now to benefit from its high surge current capacity, compact size, and industry-standard reliability. Ideal for general purpose AC/DC conversion in power supplies, lighting, and telecommunication equipment, this miniature glass passivated bridge rectifier ensures safe and efficient operation. Its RoHS compliance and UL recognition guarantee safety and environmental standards, making it perfect for automotive, industrial, and consumer electronics. Order today to enhance your circuit designs with a trusted and durable rectification solution.
Order your Vishay Series DFM DF01M today and ensure reliable AC/DC power conversion for your electronic projects with high surge current capability.
