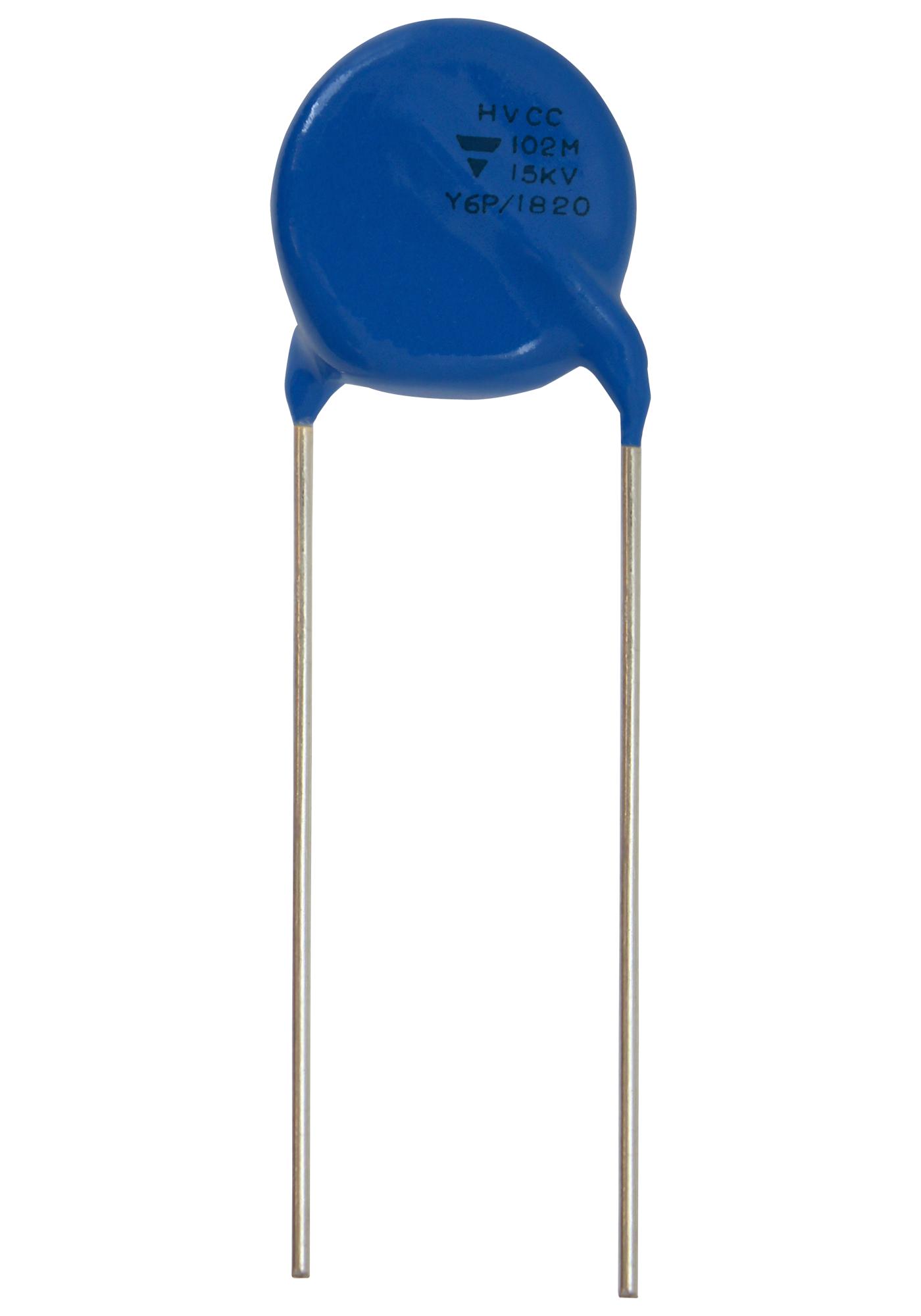

Vishay HVCC153Y6P471MEAX High Voltage Ceramic Capacitor
The HVCC Series high voltage ceramic capacitors are radial-leaded, single-layer disc capacitors designed for high reliability applications such as power supplies for x-ray sources, pulsed lasers, baggage scanners, and medical x-ray equipment. Constructed with ceramic dielectric Y6P and silver-plated ceramic discs, these capacitors offer high capacitance values up to 2 nF, low losses, and withstand voltages up to 15,000 V. They feature flame retardant epoxy coating and are suitable for both AC and DC high voltage applications with operating temperatures from -30°C to +105°C.
Vishay HVCC153Y6P471MEAX High Voltage Ceramic Capacitor Specifications:
- Ceramic dielectric: Y6P
- Voltage ratings: 10,000 V and 15,000 V
- Capacitance range: 100 pF to 2000 pF
- Capacitance tolerance: +20%
- Max. dissipation factor: 1.0% to 1.5%
- Insulation resistance: Min. 200 GΩ at 500 V
- Operating temperature: -30°C to +105°C
- Dimensions: Diameter 8-18 mm, Lead length 8-18 mm, Thickness approximately 0.21 mm to 0.15 mm
- Lead material: Tinned copper clad steel wire, diameters 0.02'' (0.6 mm) or 0.03'' (0.8 mm)
- Coating: Flame retardant epoxy resin (UL 94 V-0)
Buy the Buy Vishay HVCC Series High Voltage Ceramic Capacitors Part Number HVCC153Y6P471MEAX Online
Purchase the Vishay HVCC Series high voltage ceramic capacitor online today, designed for high reliability in power supplies, pulsed lasers, and medical x-ray equipment. With voltage ratings up to 15 kV, capacitance values up to 2 nF, and a robust ceramic dielectric Y6P, these radial-leaded capacitors ensure excellent performance across a temperature range from -30°C to +105°C. Available with flame retardant epoxy coating, they are ideal for industrial and medical high voltage applications, providing durable, low-loss operation and easy installation.
Buy Vishay HVCC153Y6P471MEAX high voltage ceramic capacitor now and experience reliable performance for demanding high voltage applications.
Frequently Asked Questions
Where can I buy Vishay HVCC153Y6P471MEAX?
You can click on the BUY or RFQ button to purchase HVCC153Y6P471MEAX from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part HVCC153Y6P471MEAX?
You can download the HVCC153Y6P471MEAX datasheet or visit the Vishay website for support.
Who is the manufacturer of HVCC153Y6P471MEAX?
Vishay
