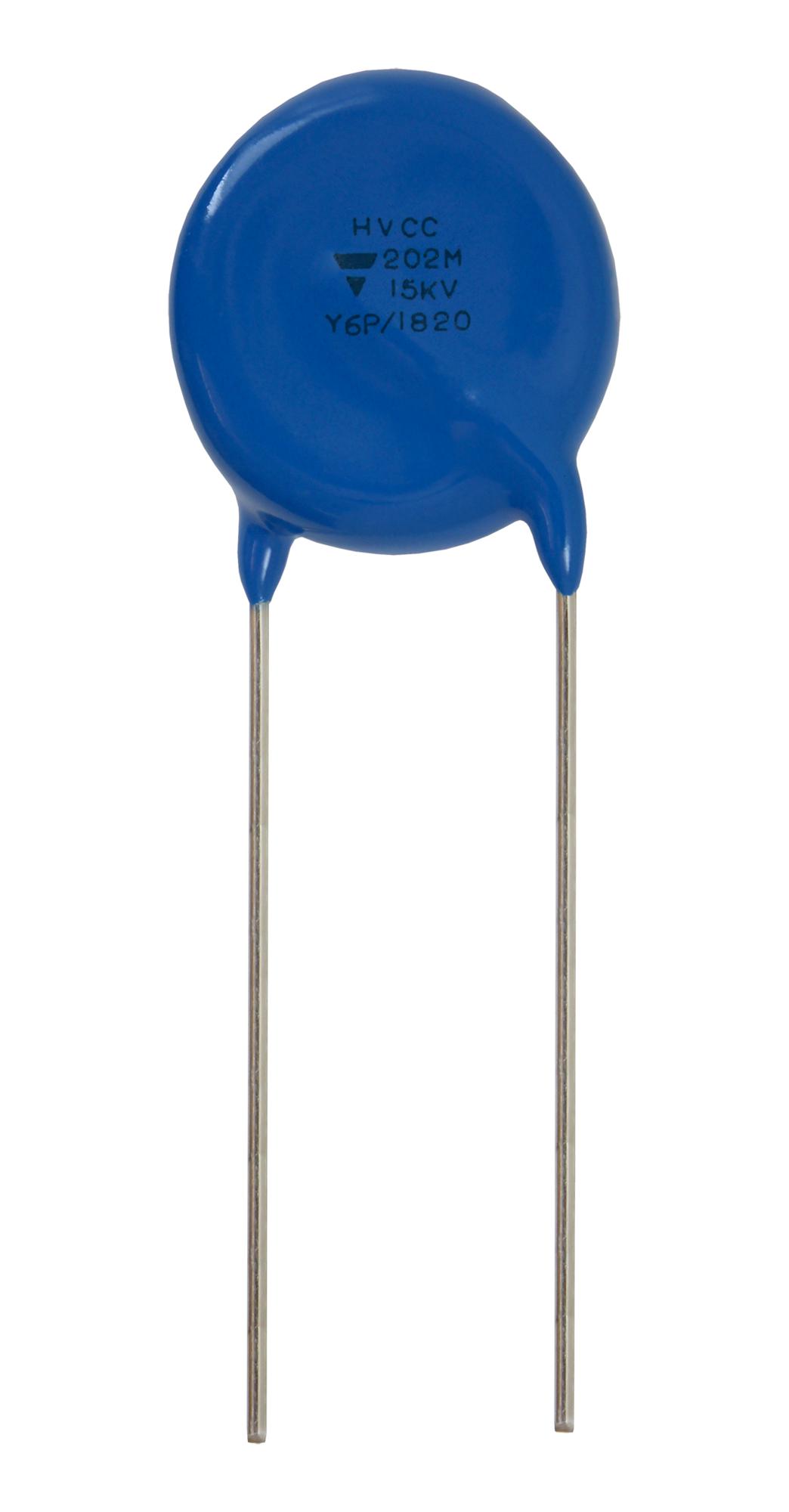

Vishay HVCC203Y6P101MEAX High Voltage Ceramic Capacitor
High voltage ceramic capacitors designed for reliable performance in high voltage power supplies, x-ray sources, pulsed lasers, and medical imaging equipment. These radial-leaded discs feature a ceramic dielectronic Y6P, with capacitance values up to 2 nF, voltage ratings up to 20,000 V, and a temperature range of -30°C to +105°C. Built with tinned copper-clad steel leads, epoxy coating, and RoHS compliance, they offer low-loss operation, high insulation resistance, and excellent dielectric strength suitable for industrial, medical, and aerospace applications.
Vishay HVCC203Y6P101MEAX High Voltage Ceramic Capacitor Specifications:
- Ceramic class 2
- Ceramic dielectric Y6P
- Voltage (Uratea, ac): 7000 V to 20,000 V depending on rated voltage
- Capacitance range: 100 pF to 2000 pF
- Capacitance tolerance: ±20%
- Max. dissipation: 1.5%
- Min. insulation resistance: 200 MΩ at 500 V
- Operating temperature: -30°C to +105°C
- Dissipation factor: Max. 1.5%
- Body dimensions vary with capacitance, lead spacing 9.5 mm or 12.5 mm, lead diameter 0.65 mm or 0.80 mm
- Material: Ceramic Y6P, tinned copper steel leads, epoxy coating
Buy the Vishay Series HVCC High Voltage Ceramic Capacitors: HVCC203Y6P101MEAX
Purchase the Vishay HVCC203Y6P101MEAX ceramic capacitor online today to ensure reliable high-voltage performance in your power supply, medical, industrial, or aerospace systems. These radial-leaded discs provide excellent insulation resistance, low dissipation factor, and high dielectric strength, making them ideal for pulsed lasers, X-ray sources, baggage scanners, and critical control equipment. With a voltage rating up to 20,000 V and capacitance up to 2 nF, these RoHS-compliant capacitors ensure long-term stability, easy installation, and high reliability for diverse electronic applications.
Get Vishay HVCC203Y6P101MEAX high voltage ceramic capacitor today—built for precision and long-lasting durability in demanding applications.
Frequently Asked Questions
Where can I buy Vishay HVCC203Y6P101MEAX?
You can click on the BUY or RFQ button to purchase HVCC203Y6P101MEAX from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part HVCC203Y6P101MEAX?
You can download the HVCC203Y6P101MEAX datasheet or visit the Vishay website for support.
Who is the manufacturer of HVCC203Y6P101MEAX?
Vishay
