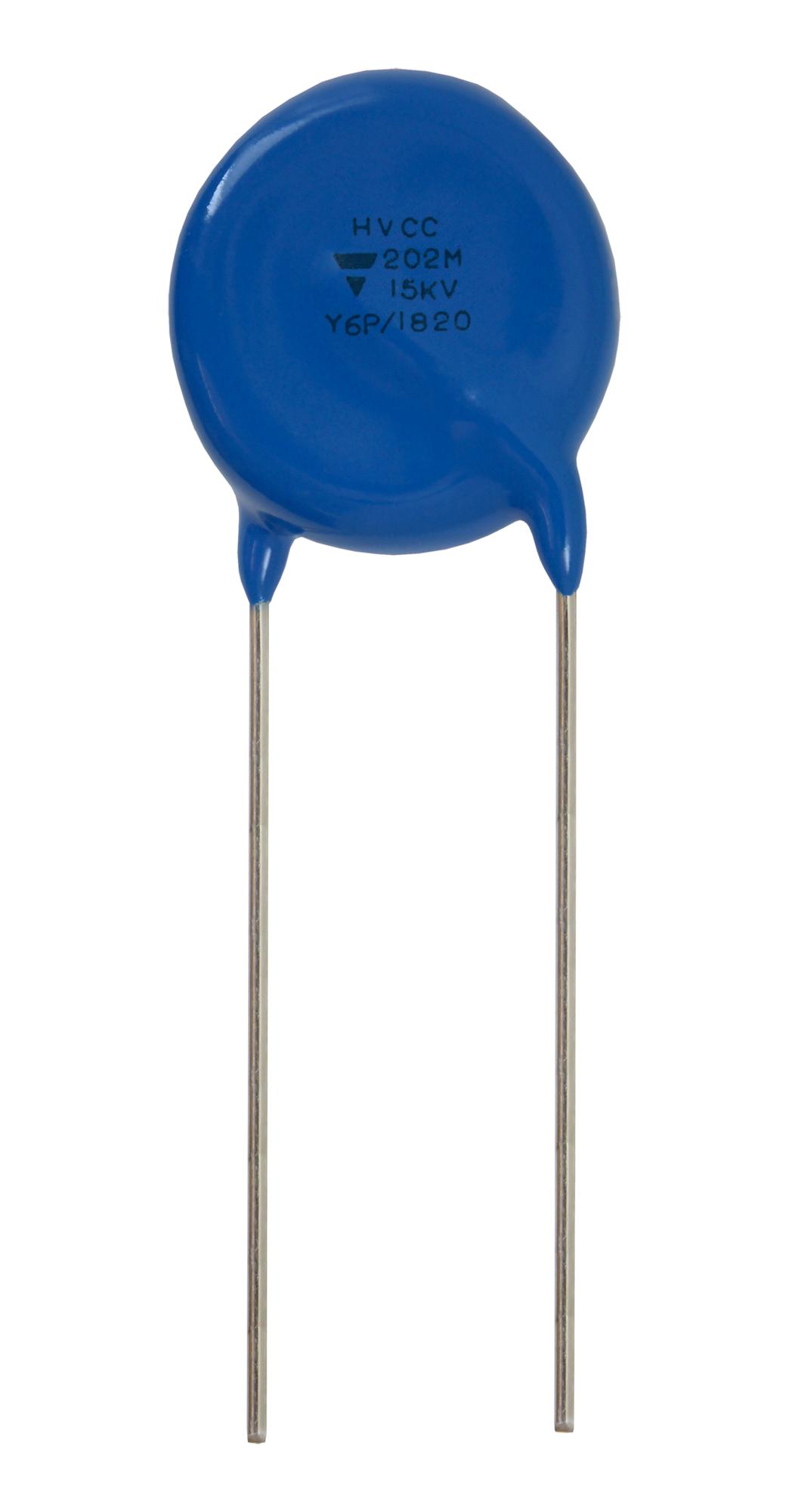

Vishay HVCC203Y6P331MEAX High Voltage Ceramic Capacitor
The Vishay HVCC Series high voltage ceramic capacitors are radial-leaded single-layer discs designed for high reliability and performance in demanding applications such as power supplies for x-ray sources, pulsed lasers, and medical equipment. Made with ceramic Y6P dielectric, these capacitors feature a capacitance range from 100 pF to 2000 pF, voltage ratings up to 20 kV, and operating temperatures from -30°C to +105°C. Their robust epoxy coating and radial leads ensure durability and ease of assembly in high-voltage environments, complying with RoHS standards.
Vishay HVCC203Y6P331MEAX High Voltage Ceramic Capacitor Specifications:
- Ceramic dielectric: Y6P
- Capacitance range: 100 pF to 2000 pF
- Rated voltage: up to 20,000 V
- Operating temperature: -30°C to +105°C
- Capacitance tolerance: ±20%
- Dissipation factor: max. 1.5%
- Insulation resistance: min. 200,000 MΩ at 500 V
- Physical size: diameter varies from 5.3 mm to 12.5 mm, thickness from 2.0 mm to 4.7 mm
- Lead material: tinned copper clad steel wire
- Lead spacing: 9.5 mm to 12.5 mm
- Coating: flame-retardant epoxy resin (UL 94 V-0)
- Applications: high voltage power supplies, x-ray sources, pulsed lasers, medical and industrial equipment
- Compliance: RoHS
Buy the Buy Vishay HVCC Series High Voltage Ceramic Capacitor Part Number HVCC203Y6P331MEAX Online
Secure your high voltage requirements today with Vishay HVCC ceramic capacitor. Designed for high reliability and rugged environments, it features Y6P dielectric, capacitance from 100 pF to 2000 pF, voltage ratings up to 20 kV, and temperature range from -30°C to +105°C. Its epoxy coating and radial leads simplify assembly and enhance durability. Ideal for x-ray power supplies, pulsed lasers, and industrial equipment, this RoHS-compliant capacitor ensures consistent performance and safety in demanding applications.
Buy Vishay HVCC203Y6P331MEAX high voltage ceramic capacitor now and experience reliable performance in critical high-voltage applications.
Frequently Asked Questions
Where can I buy Vishay HVCC203Y6P331MEAX?
You can click on the BUY or RFQ button to purchase HVCC203Y6P331MEAX from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part HVCC203Y6P331MEAX?
You can download the HVCC203Y6P331MEAX datasheet or visit the Vishay website for support.
Who is the manufacturer of HVCC203Y6P331MEAX?
Vishay
