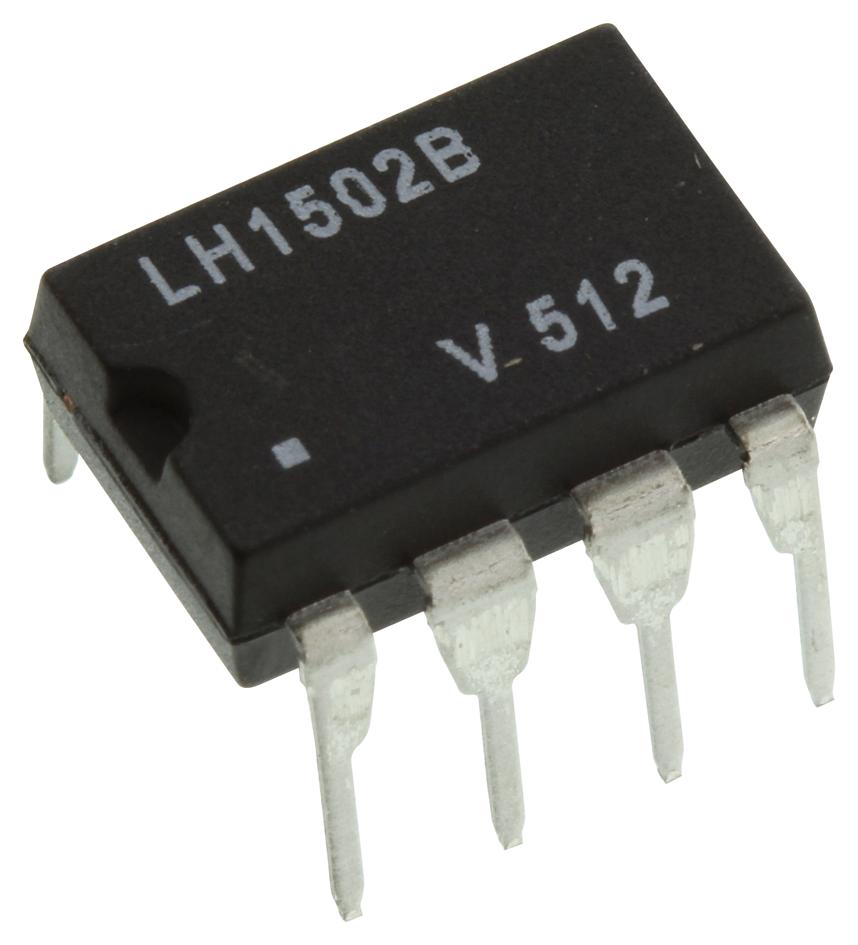

Vishay LH1502BB Solid State Relay
The LH1502BB is a through-hole solid-state relay designed as a multi-chip hybrid device. It features normally-open and normally-closed switches that operate independently as 1-Form-A and 1-Form-B relays or together as a 1-Form-C relay. The output switch combines a photodiode array with MOSFET switches and control circuitry, actuated via an infrared LED. It offers high surge capability, current limit protection, clean bounce-free switching, low power consumption, and is suitable for industrial, communication, and instrumentation applications. Delivery times may fluctuate due to market demand.
Vishay LH1502BB Solid State Relay Specifications:
- Input LED forward current: 50 mA
- Input reverse voltage: 8 V
- Output load voltage: 350 V
- Maximum load current: 150 mA
- Peak load current (Form B): 350 mA
- Isolation test voltage: 3750 V
- Operating temperature range: -40 to +85°C
- Storage temperature: -40 to +125°C
- Pin soldering temperature: 260°C for 10 seconds
- Output power dissipation: 600 mW
- Off-state leakage current: 0.02 to 0.07 nA
- Off-resistance (NO): 0.35 to 5000 Ω
- Relay type: 1-Form-A, 1-Form-B, 1-Form-C hybrid
- Built-in current limit protection for load
- Package options: DIP-8, SMD-8 with tape or tubes
- Agency approvals: UL, CSA, FIMKO, DIN EN standards
