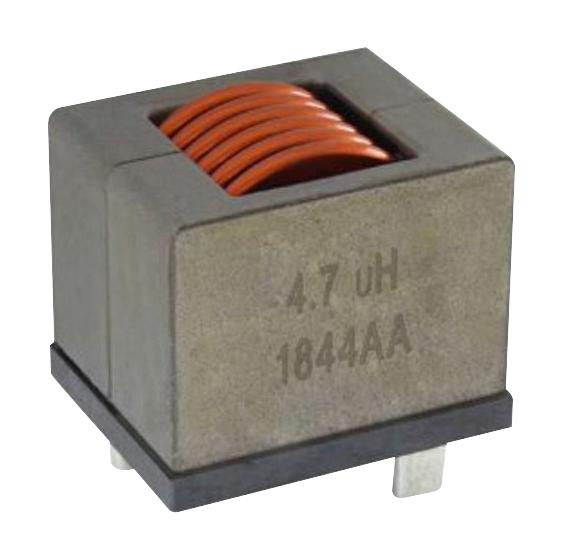

Vishay IHDM1008BCEV2R2M3A High Current Inductor
The IHDM-1008BC-3A is a high-current, through-hole inductor designed for demanding applications like DC/DC converters, motor control, and high-temperature environments. Featuring a powdered iron alloy core, it offers low DCR, soft saturation, and robust performance up to 180 °C. Stripped, tinned terminals facilitate easy through-hole mounting, while optional configurations include bare copper, SMD, or press-fit pins. Its RoHS-compatible materials ensure stability, reliability, and minimal core loss, making it suitable for industrial, automotive, and switch-mode power supplies needing high current and temperature resilience.
Vishay IHDM1008BCEV2R2M3A High Current Inductor Specifications:
- Inductance: 1.2 uH ±20%
- Temperature Range: -40 °C to +180 °C
- Operating temperature: up to 180 °C with no aging
- Core Material: Powdered iron alloy
- DCR (at 25 °C): 0.016 Ω to 0.035 Ω, depending on model
- Saturation Current: 150-175 A, depending on inductance
- Isolation Voltage: 350 V per cycle, 60 s, 5 MA max
- Package: Through-hole, available with optional bare copper, SMD, or press-fit pins
- Terminals: Stripped and tinned, hot dipped Sn plating
- Dimensions: Approximately 0.85 inches (21.75 mm) length, 0.86 inches (21.75 mm) width, height varies per model
- RoHS compliant, custom options available
- Minimize losses with soft saturation and stable inductance over temperature
Buy the Vishay Series IHDM-1008BC High Current Inductor: IHDM1008BC-3A
Purchase the Vishay Series IHDM-1008BC high-current through-hole inductor online today. Designed for demanding applications such as DC/DC converters, motor controls, and high-temperature environments, this inductor offers low DCR, soft saturation, and RoHS compliance. Its robust powdered iron core ensures stability up to 180 °C with minimal losses, making it ideal for industrial, automotive, and high-power switch-mode power supplies. Easy to mount with standard or optional terminals, it guarantees reliable and efficient high-current operation in your projects.
Order your Vishay Series IHDM-1008BC high-current inductor today and give your power systems the dependable high-temperature performance they need.
Frequently Asked Questions
Where can I buy Vishay IHDM1008BCEV2R2M3A?
You can click on the BUY or RFQ button to purchase IHDM1008BCEV2R2M3A from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part IHDM1008BCEV2R2M3A?
You can download the IHDM1008BCEV2R2M3A datasheet or visit the Vishay website for support.
Who is the manufacturer of IHDM1008BCEV2R2M3A?
Vishay
