Vishay SFH62063T Optocoupler Signal Transmitter
The SFH620A and SFH6206 are high-performance optocouplers with a phototransistor output, designed for signal transmission between electrically isolated circuits. Featuring a GaAs infrared diode emitter and silicon planar phototransistor detector, these devices offer high current transfer ratios, low coupling capacitance, and high isolation voltage up to 5300 Vms. They are available in DIP-4 and SMD packages, compliant with IEC and UL safety standards, and are suitable for applications requiring reinforced insulation at operational voltages up to 400 V. Their fast switching times, temperature stability, and end-stackability make them ideal for industrial and safety-critical systems.
Vishay SFH62063T Optocoupler Signal Transmitter Specifications:
- Input: DC forward current +60 mA, Surge forward current 225 A, Power dissipation 100 mW
- Output: Collector emitter voltage 70 V, Emitter collector voltage 7 V, Collector current 100 mA, Power dissipation 150 mW
- Coupler: Total power dissipation 250 mW, Isolation test voltage 5300 Vms, Storage temperature -55°C to +150°C, Junction temperature 100°C
- Electrical characteristics include forward voltage 1.25-1.65 V at 60 mA, CTR ranging from 40% to 320% depending on model, and switching times in microseconds
- Insulation: Reinforced with creepage and clearance distances >8 mm, insulation thickness 20.4 mm, impedance testing at high voltages with UL and IEC approvals
- Physical dimensions: DIP-4 package with length max 10.16 mm, width ~6.60 mm, SMD options with 2.54 mm lead spacing, and recommended solder profiles for surface mounting

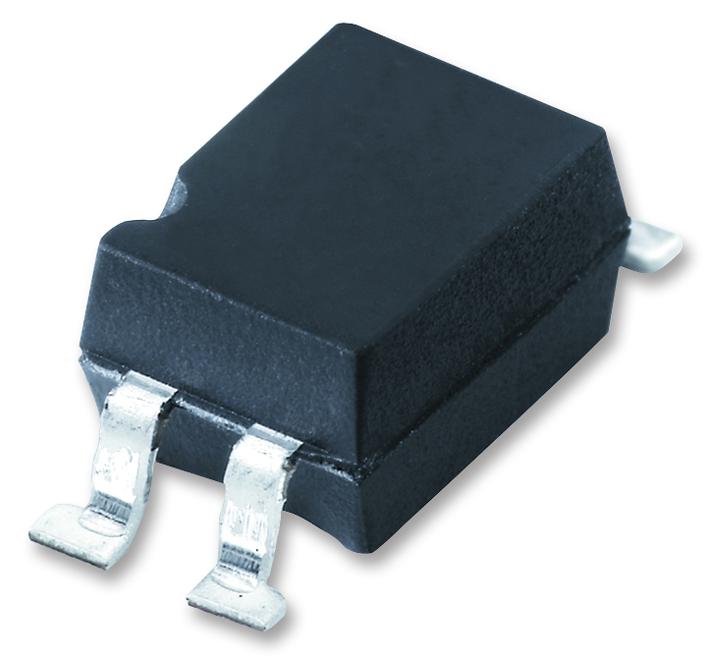

Buy the Vishay Series SFH620 Series Optocoupler: SFH62063T
Order the Vishay SFH62063T optocoupler online today for robust electrical isolation in industrial, automation, and safety-critical applications. Designed with high CTR, fast switching, and reinforced insulation, this device offers superior performance and reliability. It features multiple package options including DIP-4 and SMD variants, meeting stringent safety and operational standards. Easy to integrate into your system, ensuring efficient signal transfer across isolated circuits with high voltage tolerance. Purchase now to enhance your system’s safety and efficiency with these dependable optocouplers.
Buy Vishay SFH62063T high-isolation optocoupler now and experience reliable signal transmission with fast response times and high safety standards.
Frequently Asked Questions
Where can I buy Vishay SFH62063T?
You can click on the BUY or RFQ button to purchase SFH62063T from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part SFH62063T?
You can download the SFH62063T datasheet or visit the Vishay website for support.
Who is the manufacturer of SFH62063T?
Vishay
