Vishay IHPT1411AFEBR73AB0 Haptic Feedback Actuator

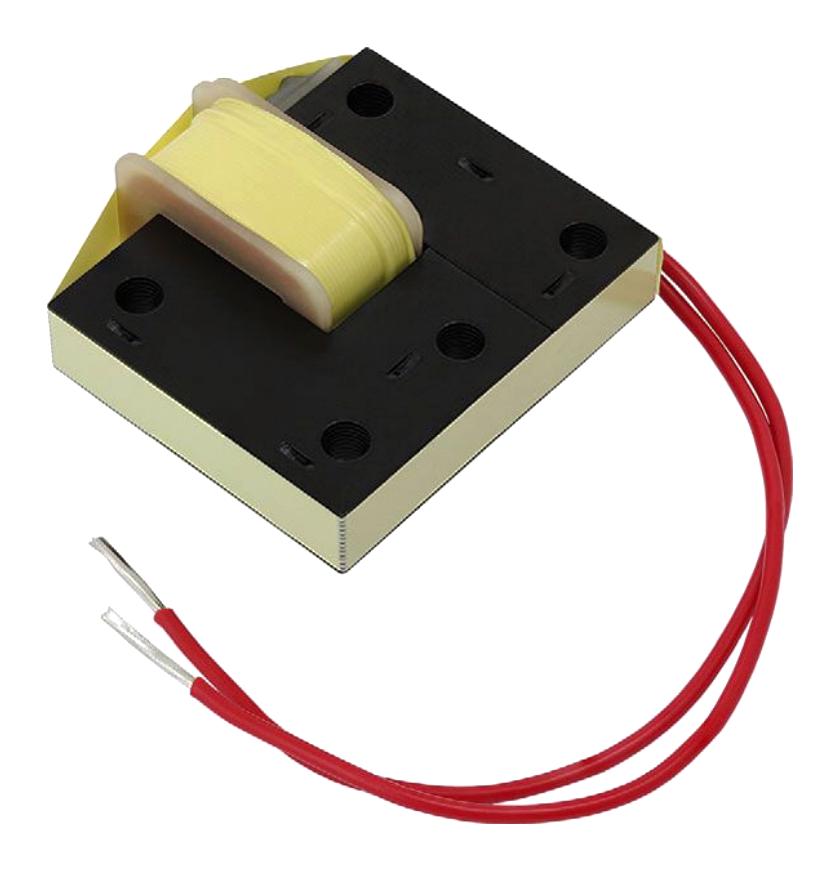

The Vishay IHPT-1411AF-ABO is a compact haptic feedback actuator designed with solenoid construction to deliver high impulse vibrations, providing clear tactile feedback in noisy environments. It can drive up to a 0.5 kg load and generate 6 g's of acceleration with a 12 V, 5 ms pulse. Its two-piece construction features a stationary U-core and moving I-bar, suitable for touch screens, medical interfaces, and industrial control panels. The device includes dipped tin lead terminations and operates reliably within -40°C to +105°C, making it ideal for touch feedback applications.
Vishay IHPT1411AFEBR73AB0 Haptic Feedback Actuator Specifications:
- Force Coefficient: 0.73 (1) at 25°C
- Response Time: 5.0 ms typical
- Inductance: 1.8 mH
- DCR: 0.95 ohms typical, 1.09 ohms max
- Dielectric Withstand Voltage: 150V
- Operating Temperature Range: -40°C to +105°C
- Rated Voltage: 16 V maximum
- Core Material: Laminated steel
- Wire Material: Copper, PU / PA insulated
- Solder Composition: Hot dip tin
- Dimensions: approximately 0.21 inches (5.40 mm) in diameter, 43 cm typical lead length
- Construction: Two-piece with mounted holes, stationary U-core and moving I-bar
- Peak Force Response: 140 g
Buy the Vishay Series Haptic Feedback: IHPT-1411AF-ABO
Purchase the Vishay IHPT-1411AF-ABO haptic feedback actuator online today to enhance your touch screen, medical, or industrial control solutions. This compact device offers high impulse vibrations with precise response times, making it ideal for creating clear tactile sensations even in noisy environments. Its durable construction, including dipped tin leads and a robust laminated steel core, ensures long-lasting operation across wide temperature ranges. Easy to install with mounting holes, it delivers consistent performance for industrial, healthcare, and automation applications. Order now to improve your user interface with proven Vishay technology.
Buy Vishay IHPT-1411AF-ABO now and experience unmatched reliability and performance in tactile feedback applications.
