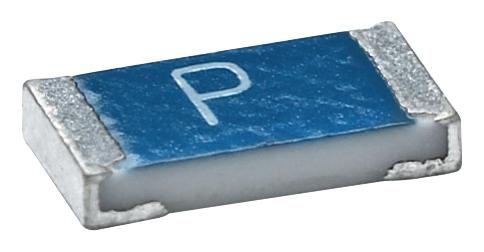

Vishay MFU1206FF03150P100 Chip Fuse
MFU 1206 thin film chip fuse offers very quick acting protection suitable for modern electronics including ICT, industrial, automotive, and audio/video applications. Manufactured with advanced thin film technology, these fuses provide outstanding stability, high breaking capacity, and RoHS compliance. They feature a ceramic body with protective coating, pure tin nickel-plated terminations, and are compatible with automatic SMD assembly, wave, reflow, or vapor phase soldering. Designed for high reliability and low self-heating, they meet IEC and UL standards for safety and performance.
Vishay MFU1206FF03150P100 Chip Fuse Specifications:
- Size: 1206
- H: 0.55 ± 0.1 mm
- L: 3.2 ± 0.1 mm
- W: 1.6 ± 0.15 mm
- Rated current range: 0.1 A to 6.3 A
- Rated voltage: 63 V DC
- Breaking Capacity: 50 A at 63 V
- Temperature Range: -55°C to 125°C
- Resistance at 0.1 x In: 660 mΩ to 1 Ω
- Material: Metal alloy film on ceramic body
- Termination: Pure tin nickel-plated
- Compliance: RoHS, IEC 60127-4, UL 248-14
- Storage Life: Up to 20 years
- Testing Standards: IEC 60127-1, IEC 60127-4, UL 248-14, IEC 60068 series
Buy the Vishay MFU1206 U+2013 Reliable Chip Fuses for Industrial Applications
Purchase Vishay MFU1206 chip fuse online today and ensure your electronic devices are protected with high-quality, quick-acting fuses. These small, robust fuses are compatible with automated SMD assembly and can be used in a wide range of applications, including automotive, industrial, and audio/video electronics. With a proven track record for stability, RoHS compliance, and adherence to IEC and UL standards, buying online guarantees fast delivery and dependable circuit protection, enhancing your product’s reliability.
Buy Vishay MFU1206 now and experience unmatched reliability and performance in circuit protection for industrial and electronic devices.
Frequently Asked Questions
Where can I buy Vishay MFU1206FF03150P100?
You can click on the BUY or RFQ button to purchase MFU1206FF03150P100 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MFU1206FF03150P100?
You can download the MFU1206FF03150P100 datasheet or visit the Vishay website for support.
Who is the manufacturer of MFU1206FF03150P100?
Vishay
