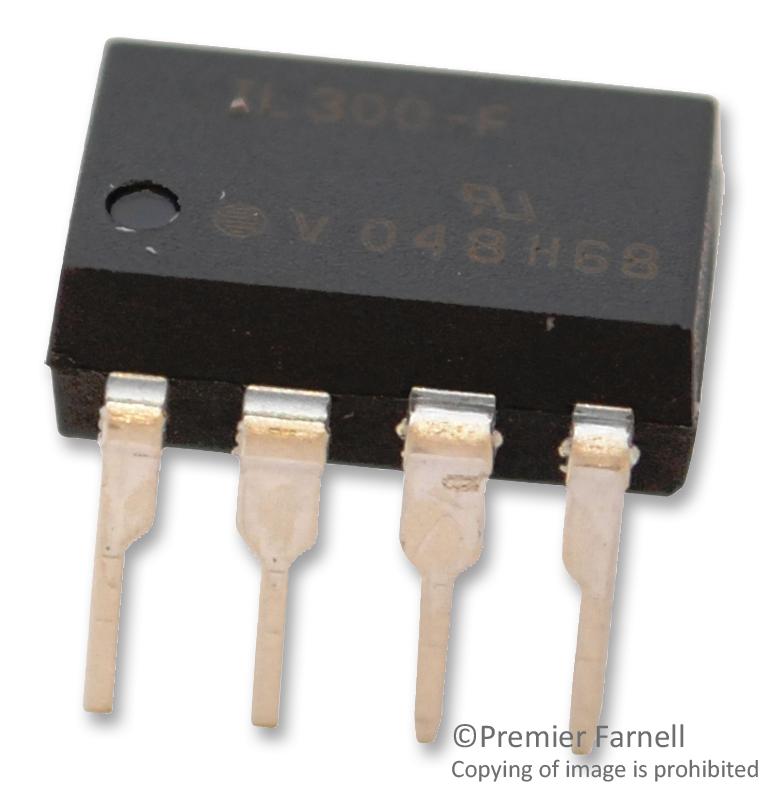

Vishay IL300EF Linear Optocoupler
The IL300 is a high-performance linear optocoupler featuring high gain stability, wide bandwidth exceeding 200 kHz, and excellent temperature stability of ±0.005%. It integrates an AlGaAs IR LED and a matched PIN photodiode array, providing accurate and stable feedback control for power supplies, medical sensors, and process control systems. The device offers galvanic isolation up to 5300 V, low power consumption below 15 mW, and RoHS compliance. Its applications include isolated voltage/current feedback, digital communication, and industrial transducer interfacing, making it ideal for demanding electronic control circuits requiring linearity and stability.
Vishay IL300EF Linear Optocoupler Specifications:
- Input Power Dissipation: 160 mW, derates 2.13 mW/°C from 25°C
- Forward Current: 60 mA, Surge Current: 250 mA (pulse <10 us)
- Reverse Voltage: 5 V, Thermal Resistance: 470 K/W
- Output Power Dissipation: 50 mW, Reverse Voltage: 50 V
- Coupler Power Dissipation: 210 mW, Derates 28 mW/°C from 25°C
- Isolation Test Voltage: > 5300 Vms, Isolation Resistance: > 10^7 Ω at 100°C
- Input Voltage (LED): Forward Voltage: 1.25-1.50 V at 10 mA, Reverse Current: 1 pA
- Output Photodiode: Dark Current: 25 nA, Open Circuit Voltage: 500 mV, Short Circuit Current: 70 μA
- Transfer Gain (K3): 0.56 to 1.65, Stability: ±0.15%/°C (at 10 mA)
- Bandwidth: > 200 kHz, Phase Shift: -45° at 200 kHz, Common-Mode Rejection Ratio: 130 dB at 60 Hz
