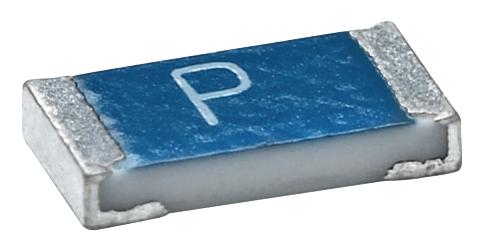

Vishay MFU1206FF01600P100 Thin Film Chip Fuse
MFU series thin film chip fuses feature advanced thin film technology, ensuring very quick acting response and exceptional stability. Suitable for a diverse range of modern electronic applications including IT, industrial, automotive, medical, and audio/video devices, these fuses are RoHS compliant and support lead-free soldering. Available in sizes from 0402 to 1206, they provide high breaking capacity, low voltage drop, and reliable performance under thermal and mechanical stress. Their production follows strict quality control and extensive testing per IEC and UL standards, making them ideal for compact, high-reliability electronic systems.
Vishay MFU1206FF01600P100 Thin Film Chip Fuse Specifications:
- Size: 1206 (3.2 x 1.6 mm)
- Rated Voltage: 63 V
- Breaking Capacity: 50 A at rated voltage
- Voltage Drop at 1 x In: 174 mV
- Cold Resistance at 0.1 x In: 660 mΩ
- Rated Current Range: 0.1 A to 6.3 A
- Operating Temperature Range: -55°C to 125°C
- Material: Metal alloy film, ceramic body, tin-plated nickel terminations
- Compliance: RoHS, UL recognition
- Test Standards: IEC 60127-1, IEC 60127-4, UL 248-14
- Shelf Life: 20 years storage
- Applicable for automatic SMD assembly, wave, reflow, vapor phase soldering
- Encapsulation resistant to common cleaning solvents
- Effective in high-density electronic circuit protection
- Low self-heating, high stability of fusing characteristics
Buy the Vishay MFU1206 – Reliable Thin Film Chip Fuse for Industrial Applications
Ensure your electronics are protected with the high-reliability Vishay MFU1206 thin film chip fuse. Engineered for quick acting and stability, it features RoHS compliance and supports lead-free soldering. Perfect for compact, high-density electronic systems in IT, automotive, medical, and audio/video applications, this fuse offers high breaking capacity, low voltage drop, and rigorous testing standards. Order online today to secure dependable circuit protection and improve your device's safety and longevity.
Buy Vishay MFU1206 now and experience unmatched reliability and performance in your electronic protection needs.
Frequently Asked Questions
Where can I buy Vishay MFU1206FF01600P100?
You can click on the BUY or RFQ button to purchase MFU1206FF01600P100 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MFU1206FF01600P100?
You can download the MFU1206FF01600P100 datasheet or visit the Vishay website for support.
Who is the manufacturer of MFU1206FF01600P100?
Vishay
