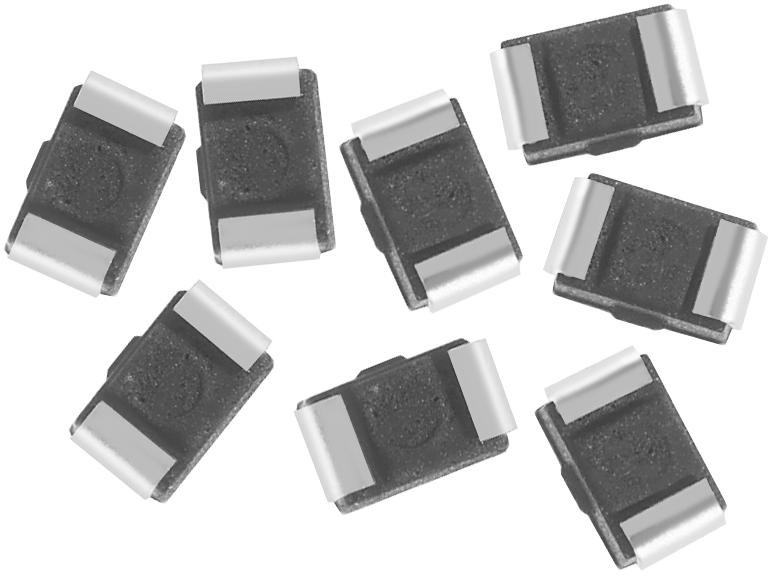

Vishay IMC0805ERR12J01 Surface Mount Inductor
The IMC-0805-01 is a high-quality surface mount inductor with a typical inductance of 10 nH and a ±5% tolerance, designed for compact electronic applications. It features high self-resonant frequency, high Q at elevated frequencies, and is RoHS compliant. Constructed with ceramic or ferrite core materials, the inductor operates across a temperature range of -40°C to +125°C, making it suitable for various high-performance, space-constrained circuits. Its tape-and-reel packaging facilitates automated assembly, ensuring reliable manufacturing and consistent performance in surface-mount technology (SMT) environments.
Vishay IMC0805ERR12J01 Surface Mount Inductor Specifications:
- Inductance: 10 nH with ±5% tolerance
- Model: IMC-0805-01
- Package code: 0805
- Package dimensions: 1.00 x 0.079 inches (25.4 x 2.0 mm)
- Operating temperature: -40°C to +125°C
- Core material: Ceramic from 2.2 nH to 390 nH, ferrite from 470 nH to 10,000 nH
- Inductance range: 2.2 nH to 10,000 nH
- Q factor: up to 1000 at 2.7 MHz
- Frequency (MHz): 2.7 to 10,000
- DC resistance: 0.08 to 5.00 ohms depending on inductance
- RoHS compliant, halogen-free as per IEC 61249-2-21
- Tape and reel packaging: 2000 units per reel
- Reel size: 0.8 inches (20.02 mm) diameter
- Application: High-frequency circuits, RF modules, compact electronic devices
Buy the Vishay Series IMC Inductors: 10 nH High-Frequency Surface Mount Inductor IMC-0805-01
Order the Vishay IMC-0805-01 surface mount inductor today and enhance your electronic circuits with its high Q, stable inductance, and space-saving design. Perfect for RF, high-speed, and precision applications, this compact 10 nH inductor offers excellent thermal stability from -40°C to +125°C. Its RoHS compliance and tape-and-reel packaging ensure easy handling and assembly in automated manufacturing processes. Improve your device's performance with this reliable, high-quality component, available now for quick online purchase.
Buy Vishay IMC-0805-01 now and experience unmatched reliability and high-frequency performance in your electronic designs.
Frequently Asked Questions
Where can I buy Vishay IMC0805ERR12J01?
You can click on the BUY or RFQ button to purchase IMC0805ERR12J01 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part IMC0805ERR12J01?
You can download the IMC0805ERR12J01 datasheet or visit the Vishay website for support.
Who is the manufacturer of IMC0805ERR12J01?
Vishay
