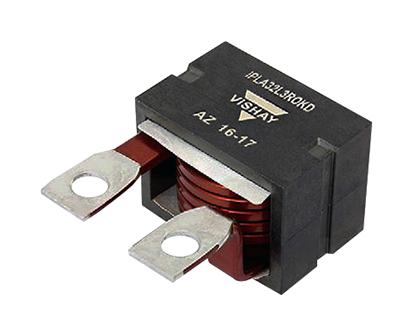

Vishay IPLA32L3R0KD High-Current Planar Choke Inductor
The IPLA 32L3R0KD is a high-current, compact planar choke inductor designed for high power density DC/DC converter applications, operating efficiently within a frequency range of 100 kHz to 800 kHz. It features a lead frame with smooth holes, with options for custom shapes and threaded nuts. With a temperature grade of 180°C, it offers excellent thermal stability, low EMI, high self-resonance, and reliable performance across a temperature range of -55°C to 125°C. Suitable for electronics requiring high current inductors with minimal size and weight.
Vishay IPLA32L3R0KD High-Current Planar Choke Inductor Specifications:
- Size (L x W x H): 31 mm x 43 mm x 22.2 mm
- Inductance range: 1 pH to 4 pH
- Frequency range: 100 kHz to 800 kHz
- Material temperature grade: 180°C
- Operating temperature: -55°C to 125°C
- Leadframe or wire terminals
- Thermal resistance: 10.5 W/mK (natural convection), 4 W/mK (heatsink 1 face), 2 W/mK (2 face heatsink)
- Custom designs available (holes, shapes, threaded holes)
- Peak current: 22 A to 75 A depending on model
- Maximum power dissipation: 75 W
Buy the Vishay Series IPLA Inductor: IPLA32L3R0KD
Enhance your electronic designs with the Vishay IPLA32L3R0KD high-current planar choke inductor, designed for robust DC/DC converters. This compact, magnetically shielded inductor offers excellent thermal stability, operates efficiently from 100 kHz to 800 kHz, and performs reliably across temperatures from -55°C to 125°C. Its versatile lead frame and custom options make it suitable for various high power density applications. Ensure your project’s success by ordering this high-performance inductor online today for fast delivery and dependable quality.
Order your Vishay Series IPLA32L3R0KD high-current planar choke inductor today and give your high power density converter projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy Vishay IPLA32L3R0KD?
You can click on the BUY or RFQ button to purchase IPLA32L3R0KD from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part IPLA32L3R0KD?
You can download the IPLA32L3R0KD datasheet or visit the Vishay website for support.
Who is the manufacturer of IPLA32L3R0KD?
Vishay
