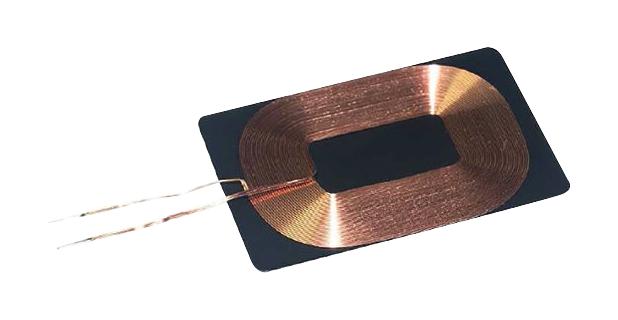

Vishay IWAS4832ABEB110JF1 Wireless Charging Coil
The Vishay Dale wireless charging receive coil features a compact design with an inductance of 10.8 µH and operates within a temperature range of -40°C to +105°C. Constructed from RoHS-compliant materials, it includes a shield for efficient power transfer and reliable performance in wireless charging applications. The coil measures approximately 48 mm in length and 46 mm in width, with a lead thickness of 1.20 mm. Ideal for consumer electronics, IoT devices, and wireless power systems, it offers high Q factor and low DCR for optimal energy efficiency.
Vishay IWAS4832ABEB110JF1 Wireless Charging Coil Specifications:
- Inductance: 10.8 µH
- Tolerance: ±5%
- Operating Temperature Range: -40°C to +105°C
- Dimensions: 48.0 mm length, 46.0 mm width (±2.0 mm)
- Lead Thickness: 1.20 mm max
- Material: RoHS-compliant, shield included
- Q Factor: 60 at 200 kHz
- DCR: 0.405 Ω
- Frequency: 200 kHz
- Type: Wireless charging receive coil
- Package: Standard oval
- Application: Wireless power transfer in consumer electronics and IoT devices
Buy the Vishay Series Wireless Charging Coil: IWAS4832ABEB110JF1
Experience reliable wireless power transfer with this high-quality Vishay wireless charging receive coil. Featuring a 10.8 µH inductance and operating within -40°C to +105°C temperature range, it’s ideal for consumer electronics, IoT devices, and other wireless charging applications. Its RoHS-compliant construction ensures safety and environmental standards are met. With a compact size of approximately 48 mm by 46 mm, this coil offers high Q factor and low DCR for optimal energy efficiency, making it essential for modern wireless power systems.
Get Vishay IWAS4832ABEB110JF1 today—built for precision, efficiency, and long-lasting durability in wireless charging systems.
