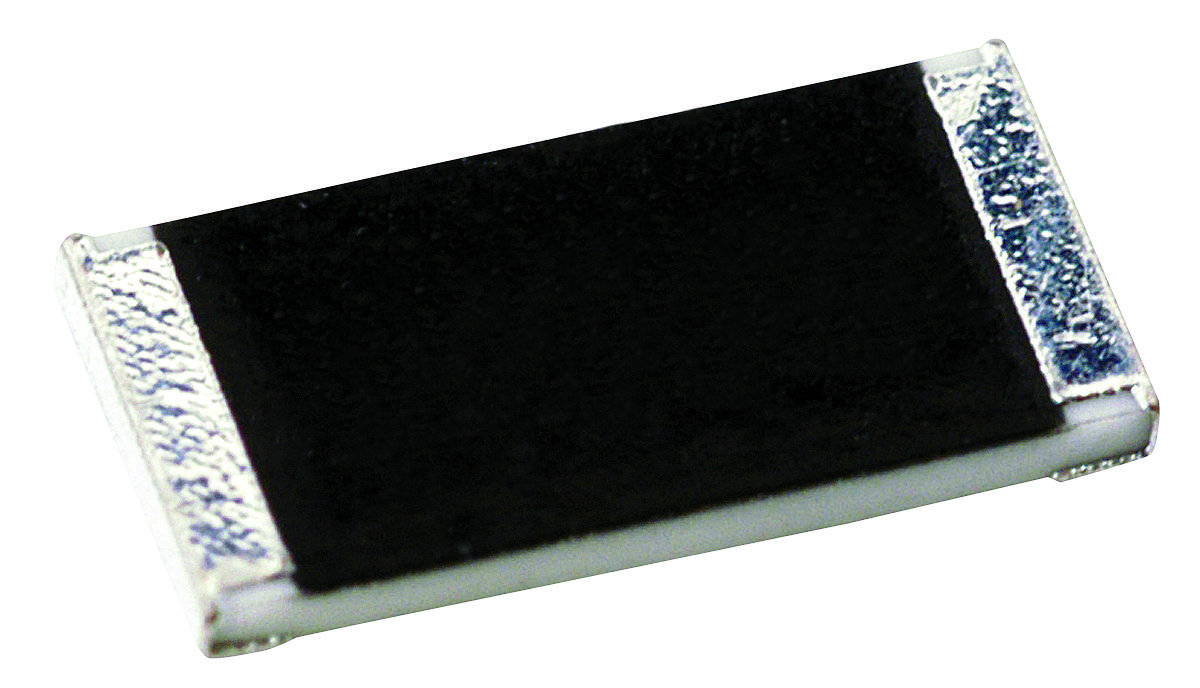

Vishay TNPW12062K00BEEN High Stability Thin Film Resistor
High stability thin film flat chip resistor suitable for precision applications in medical, industrial, and automotive electronics. Offers excellent moisture resistivity, stability under environmental conditions, and sulfur resistance. Available in sizes from 0402 to 1206, these resistors feature resistance ranges from 10 ohms to 100 kilo-ohms with tight tolerance options, and are qualified to meet RoHS and AEC-Q200 standards. Rated for high-temperature operation, they ensure reliable performance and durability in demanding environments, making them ideal for test equipment, medical devices, and automotive systems.
Vishay TNPW12062K00BEEN High Stability Thin Film Resistor Specifications:
- Size: 0402, 0603, 0805, 1206, 1210
- Resistance range: 10Ω to 100kΩ
- Resistance tolerance: ±1%, ±0.5%, ±0.1%
- Temperature coefficient: +50 ppm/K to +15 ppm/K
- Rated dissipation: 0.100 W to 0.500 W
- Operating voltage: 50 V to 200 V
- Max film temperature: 155°C
- Operating temperature: -85°C to 155°C
- Physical dimensions vary by size, e.g., 3.2mm length for 1206
- Compliance: RoHS, AEC-Q200, sulfur resistant per ASTM B 809
Buy the Vishay Series TNPW High Stability Thin Film Resistors: TNPW12062K00BEEN
Order Vishay TNPW12062K00BEEN online now and experience high reliability for your electronic projects. Perfect for medical, industrial, and automotive equipment, this high stability thin film resistor offers excellent moisture resistivity, sulfur resistance, and stability under harsh environmental conditions. With sizes from 0402 to 1206, resistance ranges from 10 ohms to 100 kilo-ohms, and compliance with RoHS and AEC-Q200 standards, you can trust this component for precision and durability in critical applications. Easy ordering ensures quick delivery for your manufacturing needs.
Get Vishay TNPW12062K00BEEN today—designed for precision and long-lasting durability in demanding electronic applications.
Frequently Asked Questions
Where can I buy Vishay TNPW12062K00BEEN?
You can click on the BUY or RFQ button to purchase TNPW12062K00BEEN from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part TNPW12062K00BEEN?
You can download the TNPW12062K00BEEN datasheet or visit the Vishay website for support.
Who is the manufacturer of TNPW12062K00BEEN?
Vishay
