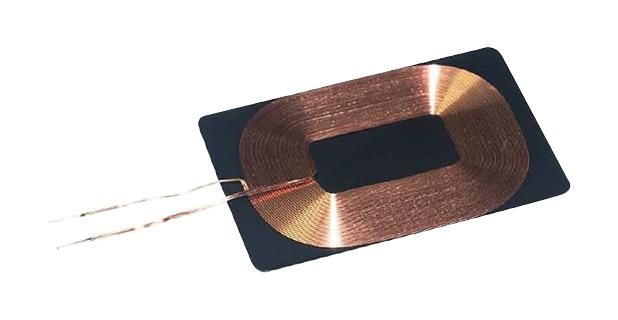

Vishay IWAS4832AEEB120KF1 Wireless Charging Coil
The wireless charging receiving coil is designed for efficient energy transfer in wireless charging applications, featuring a 12.0 µH inductance, RoHS compliance, and operation within -40 °C to +85 °C temperature range. Its compact dimensions of approximately 48 mm by 25 mm ensure versatile integration into various devices. The coil supports a maximum power rating of 5 W, meeting Qi standard requirements for reliable, safe, and efficient wireless power transfer, making it ideal for consumer electronics and IoT devices requiring stable inductive energy transfer with high efficiency.
Vishay IWAS4832AEEB120KF1 Wireless Charging Coil Specifications:
- Inductance: 12.0 µH ±10%
- DCR (Resistance): 33 mΩ typical, 145 mΩ max.
- Q factor: 145 at 100 kHz
- Operating temperature: -40 °C to +85 °C
- Storage temperature: -40 °C to +85 °C
- Dimensions: 48.0 mm ±0.5 mm x 25.0 mm ±2.0 mm
- Material: Standard PCB mount coil
- Power rating: 5 W
- Frequency: 100 kHz
- RoHS compliant
- Package: JEDEC lead (Pb)-free
- Model: IWAS4832AE-F1
- Model Inductance: 12 µH
- Tolerance: ±10%
Buy the Vishay Series Wireless Charging Coil: IWAS4832AEEB120KF1
Enhance your wireless charging projects with this high-quality coil, supporting up to 5 W power and designed for efficient energy transfer. Its 12.0 µH inductance, RoHS compliance, and operation from -40 to +85 °C make it ideal for consumer electronics, IoT devices, and smart gadgets. The compact dimensions of approximately 48 mm by 25 mm ensure easy integration into various designs. Designed to meet Qi standards, this reliable coil guarantees stable inductive power transfer for efficient, safe, and durable wireless charging applications.
Order your Vishay Series Wireless Charging Coil IWAS4832AEEB120KF1 today and enhance your wireless power transfer solutions with reliable, high-quality components.
Frequently Asked Questions
Where can I buy Vishay IWAS4832AEEB120KF1?
You can click on the BUY or RFQ button to purchase IWAS4832AEEB120KF1 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part IWAS4832AEEB120KF1?
You can download the IWAS4832AEEB120KF1 datasheet or visit the Vishay website for support.
Who is the manufacturer of IWAS4832AEEB120KF1?
Vishay
