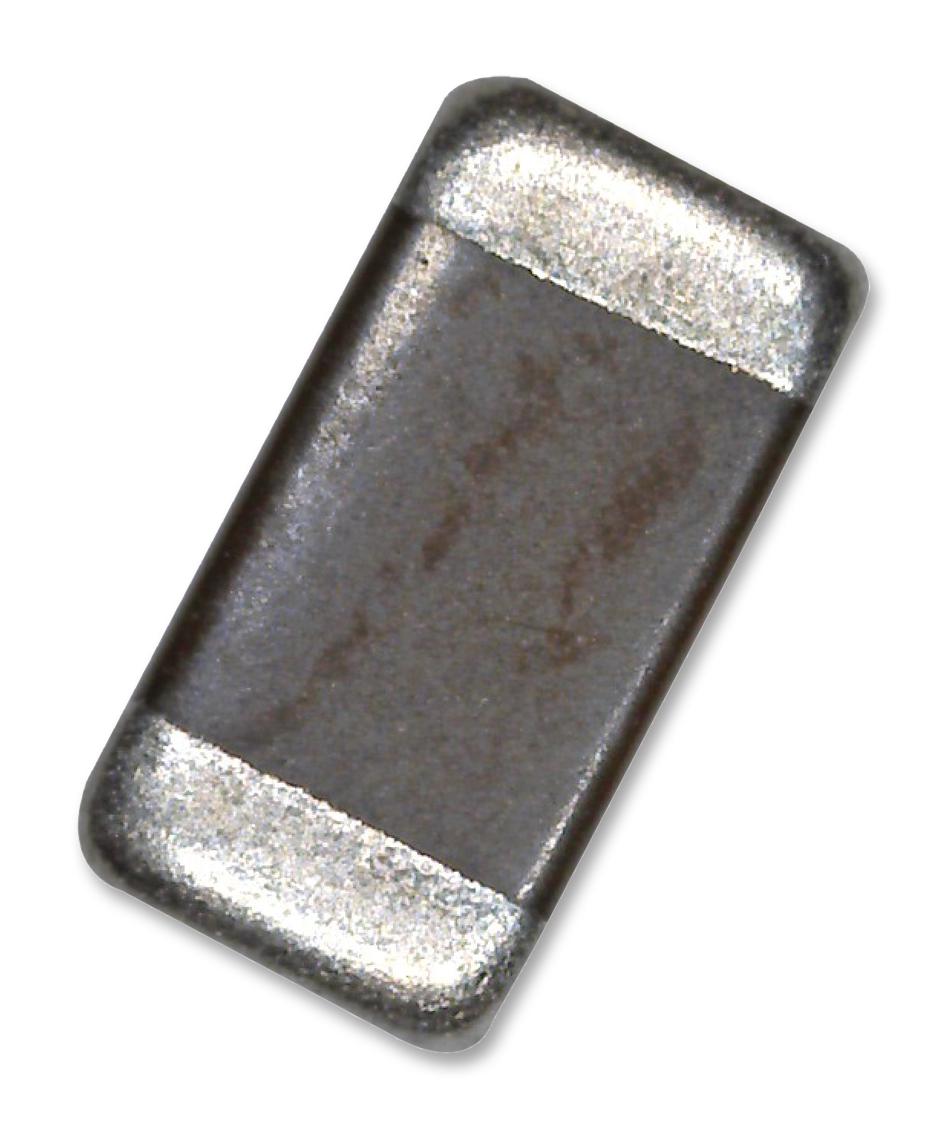

Vishay VJ0805Y105KXJTW1BC Ceramic Chip Capacitors
Surface mount multilayer ceramic chip capacitors from Vishay's Basic Commodity Series designed for consumer electronics, telecommunications, and data processing applications. Available in various dielectric types like COG, X5R, X7R, and YSV, these capacitors offer high stability, broad capacitance and voltage ranges, and RoHS compliance. They feature reliable performance across operating temperatures up to +125°C, with low leakage, high insulation resistance, and excellent aging characteristics. Suitable for high-frequency circuits, they utilize Ni-barrier, noble metal, and base metal electrode systems, ensuring durability and compatibility in modern electronic devices.
Vishay VJ0805Y105KXJTW1BC Ceramic Chip Capacitors Specifications:
- Ceramic material: BaTiO3 based
- Dielectric types: COG (NP0), X5R, X7R, YSV
- Operating Temperature: -55°C to +125°C (X7R, COG), -25°C to +85°C (Y5V)
- Capacitance Range: 0.5 pF to 220 uF (varies by dielectric type and size)
- Voltage Range: 10 V to 100 V (varies by dielectric type and size)
- Maximum voltage rating: up to 125 V for X7R, 100 V for others
- Insulation Resistance: > 210 GΩ at Up
- Dissipation Factor: varies with dielectric, typically below 20%
- Aging Rate: 0% per decade (COG), up to 12.5% per decade (Y5V)
- Size Options: 0402, 0603, 0805, 1206, 1210
- Surface Mount Technology: Yes
- RoHS Compliant: Yes
- Terminations: Sn (matt), Ni barrier, noble metal electrode systems
- Storage Conditions: Store at 5°C to 40°C, shelf life approximately 1 year
Buy the Buy Vishay Basic Commodity Series Surface Mount Multilayer Ceramic Capacitors Part Number VJ0805Y105KXJTW1BC Online
Order Vishay ceramic chip capacitors online today to ensure your electronic designs benefit from high stability, wide temperature range, and RoHS compliance. These surface-mount components are perfect for consumer devices, telecommunications, and data processing applications. With various sizes like 0402, 0603, and 0805, and dielectric options including COG, X5R, X7R, and YSV, they deliver excellent performance in high-frequency circuits, feature reliable insulation resistance, and are packaged for ease of automation. Secure your supply and optimize your manufacturing process by shopping online now.
Buy Vishay VJ0805Y105KXJTW1BC now and experience unmatched reliability and high stability for your electronic assembly needs.
Frequently Asked Questions
Where can I buy Vishay VJ0805Y105KXJTW1BC?
You can click on the BUY or RFQ button to purchase VJ0805Y105KXJTW1BC from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VJ0805Y105KXJTW1BC?
You can download the VJ0805Y105KXJTW1BC datasheet or visit the Vishay website for support.
Who is the manufacturer of VJ0805Y105KXJTW1BC?
Vishay
