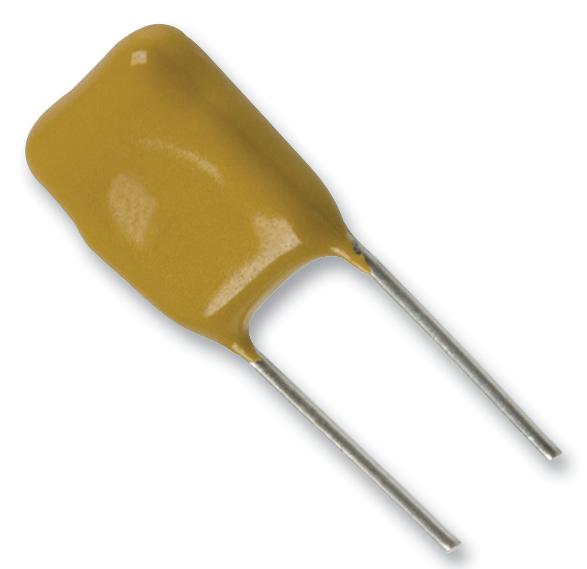

Vishay K101K15C0GF53L2 Multilayer Ceramic Capacitors
Radial leaded multilayer ceramic capacitors designed for general purpose applications, featuring high reliability, small size, and various dielectric classes. Suitable for temperature compensation, coupling, and decoupling, these capacitors operate within -55°C to +125°C depending on dielectric type. They are available in capacitance ranges from 10 pF to 1,000,000 pF, with rated voltages from 50 V to 500 V, and come with straight or kinked leads spaced at 2.5 mm or 5.0 mm. Coated with flame-retardant epoxy and marked per EIA 198 standards, they meet RoHS compliance and various climatic and approval standards for industrial use.
Vishay K101K15C0GF53L2 Multilayer Ceramic Capacitors Specifications:
- Capacitance Range: 10 pF to 1,000,000 pF
- Rated Voltage: 50 V, 100 V, 200 V, 500 V
- Dielectric Classes: 1 (COG, X7R), 2 (YSV, Y5V), 3 (YSV, Y5V)
- Temperature Range: -55°C to +125°C (X7R), -30°C to +85°C (Y5V)
- Dimensions: Lead diameter 0.5 mm, height varies, typical lead length 30 mm + 5 mm
- Lead Spacing: 2.5 mm or 5.0 mm
- Marking: Capacitance value, tolerance (+5%, +10%, +20%, +80%/-20%)
- Climatic Category: 55/125/21 (Classes 1 and 2), 30/85/21 (Class 3)
- Compliance: RoHS compliant, IEC 60384-9, EIA 198
- Encapsulation: Flame-retardant epoxy resin (UL 94 V-0)
Buy the Vishay K Series – Reliable Capacitors for Industrial Applications
Experience superior performance with Vishay K Series multilayer ceramic capacitors, perfect for temperature compensation, decoupling, and high-reliability industrial applications. Available in various dielectric classes, voltages, and sizes, these capacitors meet strict standards for temperature range, environmental resilience, and RoHS compliance. Whether you need small surface-mount devices or radial leaded capacitors, this series offers versatile options to enhance your electronic designs. Purchase online today and benefit from fast delivery, quality assurance, and technical support for your projects.
Buy Vishay K Series capacitors now and ensure high reliability for your industrial applications, with options for various voltages and sizes.
