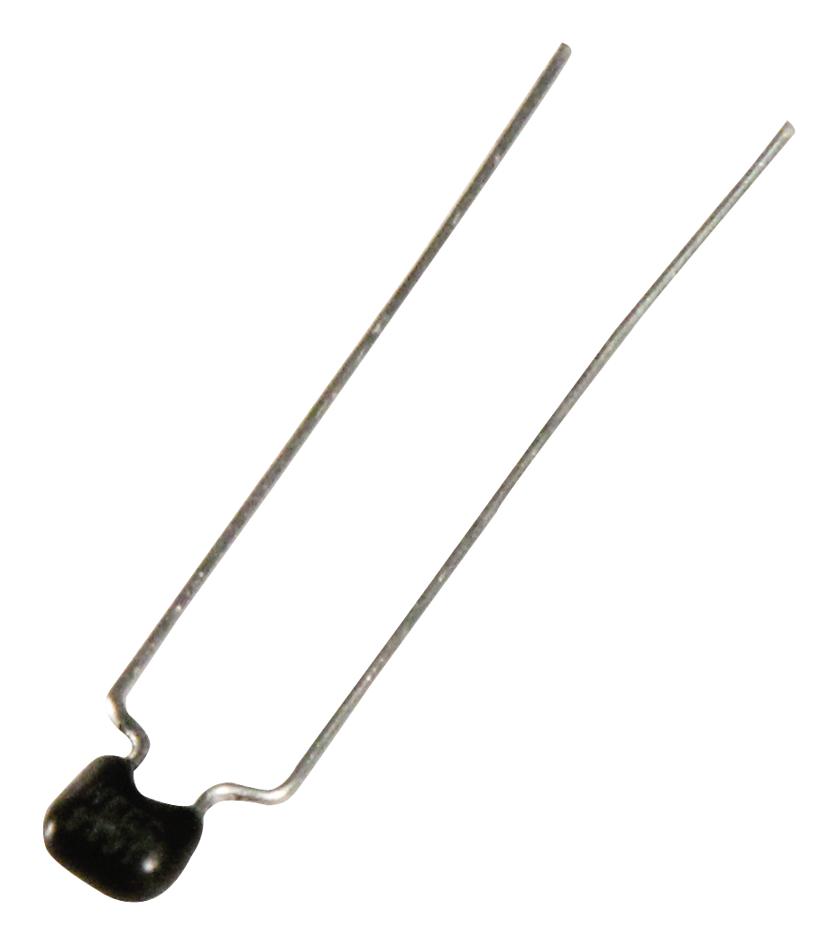

Vishay K102J15C0GF53H5H Automotive Ceramic Capacitor
These high-temperature multilayer ceramic capacitors are designed for automotive applications, enduring temperatures up to 200°C for limited durations. They feature high reliability and high capacitance in small sizes, available with radial mounting, crimp, or straight leads. Suitable for environments requiring strict climatic and voltage tolerance, they meet industry standards like AEC-Q200 and IEC certifications. Ideal for use in automotive electronics, power supplies, and other high-temperature circuits, they offer stable performance with low dissipation factors and high insulation resistance, ensuring durability and dependable operation in demanding conditions.
Vishay K102J15C0GF53H5H Automotive Ceramic Capacitor Specifications:
- Dielectric: COG X7R, XOU, XOV
- Rated Voltage: 50 V, 100 V, 200 V
- Capacitance Range: 100 pF to 1,000,000 pF
- Tolerance: +5 %, +10 %, +20 %
- Operating Temperature Range: -55°C to +200°C for limited hours, unlimited at -55°C to +175°C
- Dissipation Factor: Class 1: 0.1 %, Class 2: 2.5 %
- Insulation Resistance: 10 GΩ at rated voltage within 2 min
- Leads: 0.5 mm or 0.6 mm tinned copper clad steel wire
- Mounting: Radial, straight or kinked leads with 2.5 mm or 5.0 mm spacing
- Climatic Category: 55/125/21
- Certifications: EIA 198, IEC 60384-8, IEC 60384-9, AEC-Q200
- Temperature Characteristics: X7R (+15 %/-15 %), XOU (+22 %/-56 %), XOV (+22 %/-82 %)
- Lead Length: 30 mm + 5 mm for bulk packs, tape, or ammo packaging
- Reel Dimensions: Outer diameter 355.6 mm max., core diameter 90 mm
Buy the Vishay Series K Series Capacitors: K102J15C0GF53H5H
Order the Vishay K102J15C0GF53H5H vehicle-grade ceramic capacitor online today and benefit from high reliability in demanding conditions. Designed for automotive electronics, it operates up to 200°C for limited hours or continuously at lower temperatures. Its compact radial design simplifies installation in high-temperature environments, ensuring long-term performance. With industry-standard certifications and precise capacitance tolerances, this MLCC provides excellent stability, low dissipation, and high insulation resistance, making it ideal for power modules, engine control units, and high-temperature sensor circuits. Purchase now for dependable electrical performance in your automotive applications.
Get Vishay K102J15C0GF53H5H today—built for automotive reliability and enduring temperature tolerance.
Frequently Asked Questions
Where can I buy Vishay K102J15C0GF53H5H?
You can click on the BUY or RFQ button to purchase K102J15C0GF53H5H from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part K102J15C0GF53H5H?
You can download the K102J15C0GF53H5H datasheet or visit the Vishay website for support.
Who is the manufacturer of K102J15C0GF53H5H?
Vishay
