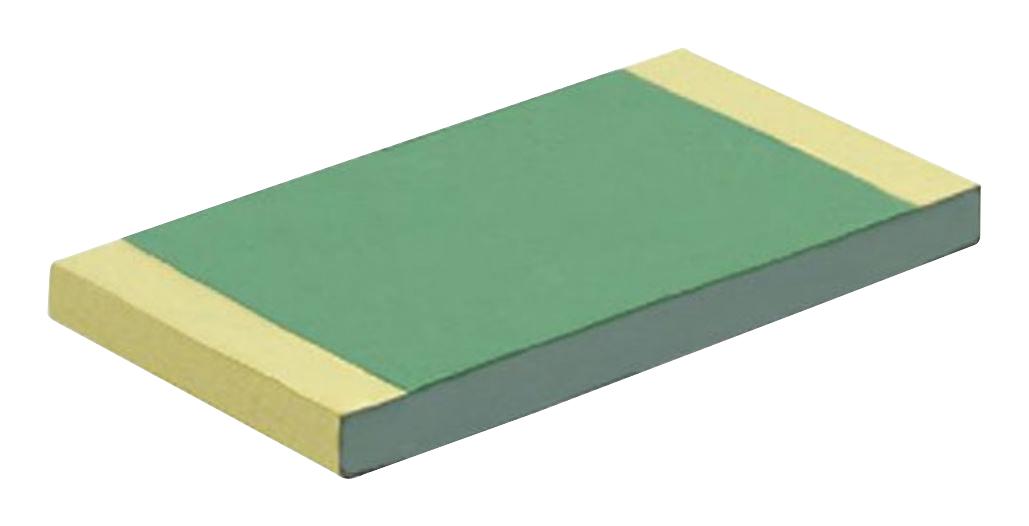

Vishay PEP1206Y1002WNTA High Power Chip Resistor
The PEP series high-precision wraparound, power-enhanced thin film chip resistors are engineered for high power applications, offering low noise, superb stability, and minimal temperature and voltage coefficients. Capable of withstanding temperatures up to 250°C, their robustness depends on termination quality and solder joints. Ideal for applications demanding smaller form factors without compromising power, these resistors feature a load life stability of 0.1% over 2000 hours at 70°C, sulfur resistance, and low voltage coefficient. Terminations are tin-silver over nickel barrier, ensuring durability and reliable performance under demanding conditions.
Vishay PEP1206Y1002WNTA High Power Chip Resistor Specifications:
- Size range: 0402-1206
- Resistance range: 39Ω to 900kΩ
- Rated Power: Up to 1W for 1206 size
- Operating Temperature: -55°C to +155°C
- Resistance Coefficient: ±5 ppm/°C to ±25 ppm/°C
- Termination: Tin silver over nickel barrier
- Climatic Testing: Humid vapor resistance per ASTM B809-95
- Material: Nickel chromium based alloy, thin film technology
- Dimensions (mm): 0402: 1.00 x 0.60, 0603: 1.52 x 0.85, 0805: 1.91 x 1.27, 1206: 3.06 x 1.60
- Compliance: RoHS, halogen-free
- Mounting: Surface-mount technology
- Resistance stability: <0.1% typical at 2000 hours
- Humidity resistance: Sulfur resistant, tested per ASTM B809-95
- Packaging options: Waffle pack, tape and reel, paper tape
- Temperature TCR: +5ppm/°C to +50ppm/°C
Buy the Buy Vishay Sfernice PEP1206Y Part Number PEP1206Y1002WNTA Online
Purchase Vishay Sfernice PEP1206Y power resistor online today. Perfect for high power, low noise, and highly stable electronic applications. These surface-mount resistors provide reliable performance under demanding conditions, with excellent resistance stability and sulfur resistance. Their compact size allows for efficient PCB design without sacrificing power handling. With fast ordering options, secure packaging, and worldwide shipping, you can ensure your projects are supported by high-quality components made for durability and precise performance. Order now for fast delivery and technical support.
Get Vishay Sfernice PEP1206Y today—built for precision, high power capacity, and long-lasting durability.
Frequently Asked Questions
Where can I buy Vishay PEP1206Y1002WNTA?
You can click on the BUY or RFQ button to purchase PEP1206Y1002WNTA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PEP1206Y1002WNTA?
You can download the PEP1206Y1002WNTA datasheet or visit the Vishay website for support.
Who is the manufacturer of PEP1206Y1002WNTA?
Vishay
