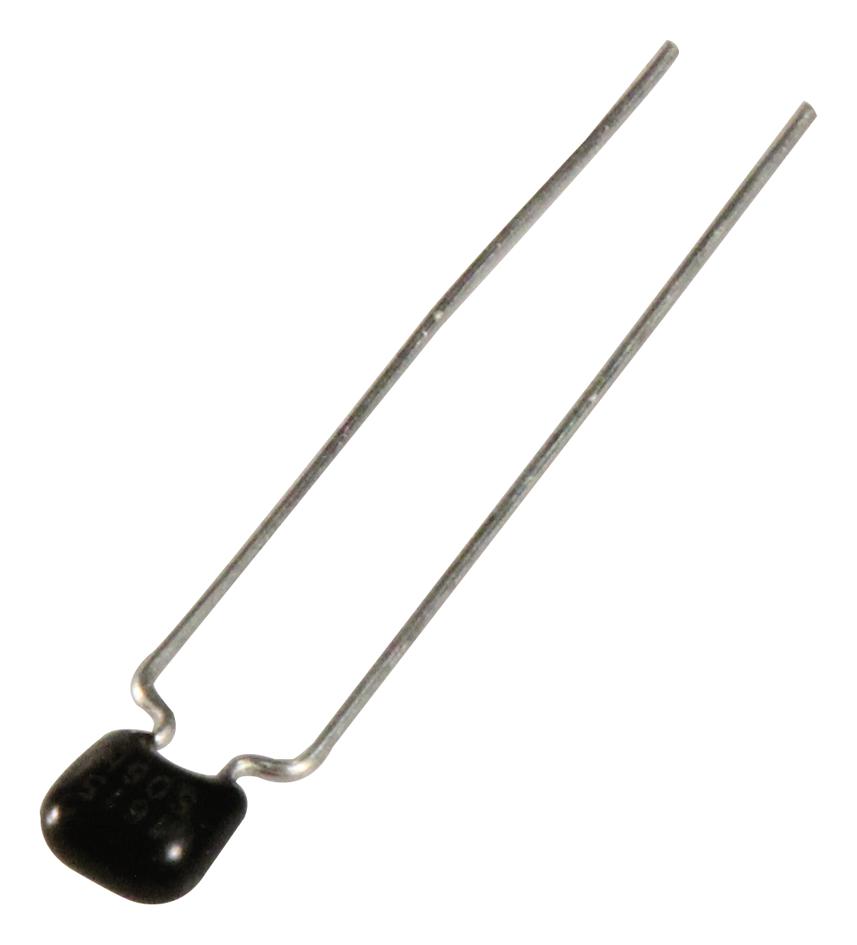

Vishay K103Z15Y5VE5TH5 Ceramic Capacitor
The Vishay K103Z15Y5VE5TH5 is a multilayer ceramic capacitor designed for various electronic applications. With a capacitance of 10000pF and a rated voltage of 25VDC, it provides stable performance in circuits requiring energy storage and filtering. The Y5V dielectric material offers a good balance of capacitance and stability over temperature. This capacitor is suitable for use in power supplies, timing circuits, and other general-purpose applications. Its compact size and reliable performance make it a valuable component for engineers and designers.
Vishay K103Z15Y5VE5TH5 Ceramic Capacitor Specifications:
- Rated Voltage: 25 VDC
- Test Voltage: 62.5 VDC
- Capacitance: 10000.00pF
- Tolerance: +80%/-20%
- DF/Q: At 5 % MAX 1KHZ/1.0VRMS
- Temp.chart./coefficient: Y5V
- Operating Temp: -30°C to 85°C
- Coating: Epoxy
- SPQ: 4000
- Insulation Resistance: 10G�MIN AT 25 VDC
- Wb-Body Width: 3.81 MAX
- H-Body Height: 3.81 MAX
- T-Thickness: 2.54 MAX
- F-Lead Spacing: 5.0 + 0.6 - 0.4
- L-Lead Length: Taping
- SH-Seat Height: 2.54 MAX
- DR-Run Down: No Excess
- K-Kink Off: 1.60±0.15
- Kink Angle: 110±10
- Resistance to Soldering Heat: 260±5°C,10±1s
- Packing: REEL
- Pitch between Components: 12.7
- Feed-hole Pitch: 12.7 ± 0.3 MM
- Feed-hole Diameter: 4.0 ± 0.2 MM
- Height to Seating Plane: 16 ± .5 MM
- Top of Component Height: 32 MM MAX
- Carrier Tape Width: 18.0 +1.0/-0.5MM
- G-Wire Diameter: 0.5
- Lead Style: H
