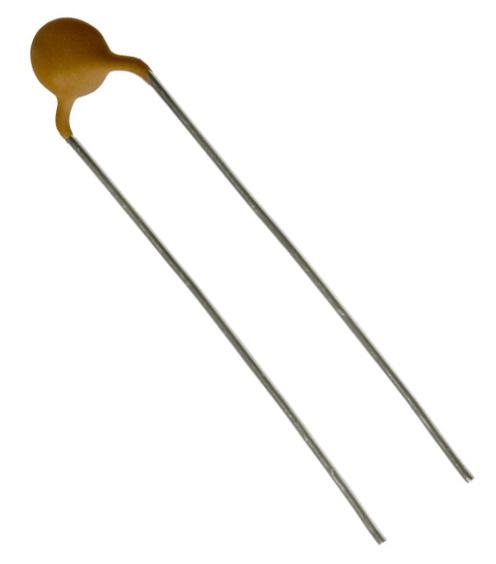

Vishay 561R10TCCV10 Ceramic Disc Capacitor
The 561R10TCCV10 is a radial leaded, single-layer ceramic disc capacitor designed for temperature compensation and low-voltage applications. It features a ceramic disc with silver-plated surfaces, and the connection leads are made of tinned copper or tinned copper-clad steel with a diameter of 0.020 inches. The capacitor may be supplied with radial kinked leads, with a lead spacing of 0.250 inches. It is coated with flame-retardant epoxy resin compliant with UL94V-0 standards. This capacitor offers ultra-stable performance over temperature and voltage, making it suitable for applications requiring exceptional stability.
Vishay 561R10TCCV10 Ceramic Disc Capacitor Specifications:
- Capacitance range: 10 pF to 10 nF
- Rated voltage: 1000 Vpc
- Ceramic dielectric: C0G, U2J (Class 1), X5F, X7R (Class 2)
- Lead diameter: 0.020 inches (0.51 mm) or 0.025 inches (0.64 mm)
- Lead spacing: 0.250 inches (6.35 mm) or 0.375 inches (9.5 mm)
- Mounting: Radial leads
- Insulation resistance: Min. 1000 MΩ or 50,000 MΩ
- Temperature range: -55°C to +125°C
- Coating: Flame-retardant epoxy resin (UL 94V-0)
- Disipation factor: Max. 2.0% at 1 kHz; 1 V
Buy the VISHAY Series 561R Ceramic Disc Capacitor: 561R10TCCV10
Purchase the VISHAY ceramic disc capacitor online today. Designed for temperature compensation and high stability with flame-retardant epoxy coating, this capacitor offers excellent performance in low-voltage, high-reliability circuits. Its radial lead design with precise lead spacing and silver-plated surfaces ensures low losses and stable capacitance over temperature and voltage variations. Perfect for bypassing, resonant circuits, and coupling applications, this capacitor combines durability and accuracy for demanding electronic systems. Buy now to enhance your circuit's reliability and stability.
Get VISHAY 561R10TCCV10 today—built for precision, stability, and long-lasting durability in your electronic applications.
Frequently Asked Questions
Where can I buy Vishay 561R10TCCV10?
You can click on the BUY or RFQ button to purchase 561R10TCCV10 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 561R10TCCV10?
You can download the 561R10TCCV10 datasheet or visit the Vishay website for support.
Who is the manufacturer of 561R10TCCV10?
Vishay
