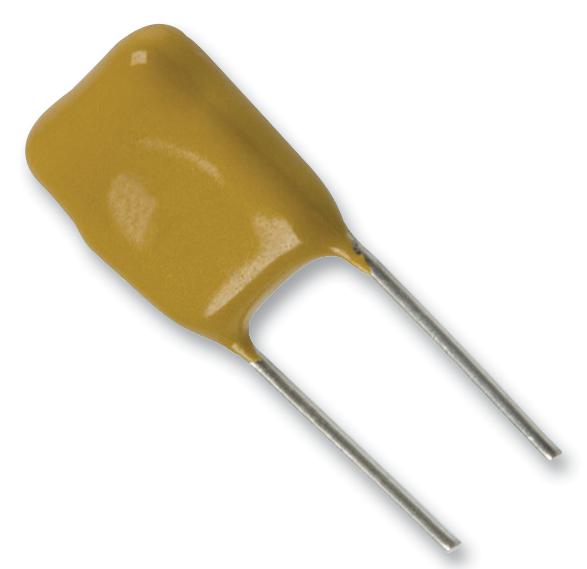

Vishay K104K10X7RF53L2 Radial Leaded Ceramic Capacitor
The Vishay K104K10X7RF53L2 is a radial leaded multilayer ceramic capacitor, part of the K Series, engineered for general-purpose applications. This capacitor features high capacitance within a compact form factor, ensuring efficient space utilization in circuit designs. Its construction incorporates high-reliability materials and offers both crimp and straight lead styles to accommodate diverse mounting requirements. The capacitor's dielectric options, including C0G, X7R, and Y5V, cater to a wide range of electrical characteristics. Typical applications include temperature compensation circuits, coupling and decoupling applications, and general electronic circuitry where a stable and reliable capacitance is required. The capacitor is available in various voltage ratings and capacitance values to meet specific design needs.
Vishay K104K10X7RF53L2 Radial Leaded Ceramic Capacitor Specifications:
- Description: Radial Leaded Multilayer Ceramic Capacitors
- Features: High capacitance with small size, High reliability, Crimp and straight leadstyles
- Applications: Temperature compensation, Coupling and decoupling
- Ceramic Class: 1, 2, 3
- Ceramic Dielectric: C0G, X7R, Y5V
- Voltage (VDC): 50, 100, 200, 500
- Min. Capacitance (pF): 10, 33
- Max. Capacitance (pF): 10000, 5600, 3900, 1800, 1000000, 560000, 220000, 47000
- Mounting: Radial
- Capacitance Range: 10 pF to 1 μF
- Tolerance on Capacitance: ± 5 %, ± 10 %, ± 20 %, + 80 %/- 20 %
- Operating Temperature Range: - 55 °C to + 125 °C (C0G, X7R), - 30 °C to + 85 °C (Y5V)
- Rated Voltage: 50 VDC, 100 VDC, 200 VDC, 500 VDC
- Temperature Characteristics: Class 1: C0G, Class 2: X7R, Class 3: Y5V
- Test Voltage: 50 VDC and 100 VDC: 250 % of rated voltage, 200 VDC: 150 % of rated voltage + 100 VDC, 500 VDC: 130 % of rated voltage + 100 VDC
- Climatic Category: Class 1 and 2: 55/125/21, Class 3: 30/85/21
- Approvals: EIA 198, IEC 60384-9
- Design: Consists of a general purpose MLCC, Lead wires are 0.5 mm tinned copper clad steel wire, May be supplied with straight or kinked leads
- Insulation Resistance at 500 VDC: 50 VDC and 100 VDC: 100 G or 1000 F, 200 VDC and 500 VDC: 10 G or 100 F
- Dissipation Factor: Class 1: 0.1 % max., Class 2: 2.5 % max., Class 3: 5 % max.
Buy the K104K10X7RF53L2 VISHAY Radial Leaded Ceramic Capacitor | myMectronic
Purchase the Vishay K104K10X7RF53L2 Radial Leaded Ceramic Capacitor securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Vishay K104K10X7RF53L2?
You can click on the BUY or RFQ button to purchase K104K10X7RF53L2 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part K104K10X7RF53L2?
You can download the K104K10X7RF53L2 datasheet or visit the Vishay website for support.
Who is the manufacturer of K104K10X7RF53L2?
Vishay
