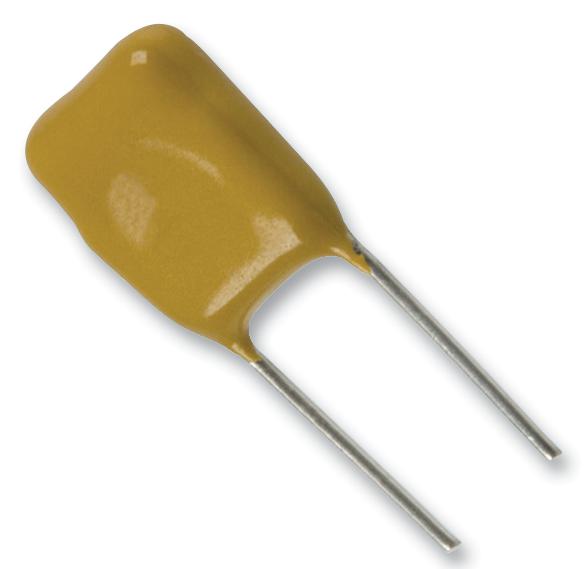

Vishay K331K15X7RH53L2 Ceramic Capacitor
The Vishay K Series ceramic multilayer capacitor offers high reliability and compact size, making it suitable for temperature compensation, coupling, and decoupling applications. With Class 1, 2, and 3 dielectric options such as COG, X7R, and Y5V, it covers a voltage range from 50 V, 100 V, up to 500 V. Designed with tin-plated copper-steel leads, available in straight or kinked options, and coated with flame-retardant epoxy resin, this capacitor ensures consistent performance across diverse environments and temperature ranges.
Vishay K331K15X7RH53L2 Ceramic Capacitor Specifications:
- Dielectric Type: COG, X7R, Y5V
- Capacitance Range: 10 pF to 1,000,000 pF (1 μF)
- Rated Voltage: 50 Vp¢, 100 Vp¢, 200 Vp¢, 500 Vp¢
- Capacitance Tolerance: +5 %, +10 %, +20 %, +80% / -20 %
- Temperature Range: -55°C to +125°C (X7R), -30°C to +85°C (Y5V), -55°C to +125°C (COG)
- Climatic Category: 55/125/21 (Class 1 & 2), 30/85/21 (Class 3)
- Lead Diameter: 0.5 mm, Lead Styles: Straight or Kinked
- Package Quantities: Reels (370x370x60mm for 100 pcs), Ammo, Bulk options
- Tape Dimensions: Width 18 mm, pitch 12.7 mm, tape thickness <0.9 mm
- Reel Outer Diameter: 355.6 mm, Inner Core: 90 mm
Buy the Vishay Series K Capacitors: K331K15X7RH53L2
Purchase the Vishay Series K331K15X7RH53L2 ceramic capacitor online today to benefit from high reliability, small size, and versatile applications including temperature compensation, decoupling, and coupling. This capacitor features class 1, 2, and 3 dielectrics like COG, X7R, and Y5V, with voltage ratings up to 500 V. Its available in straight or kinked leads, coated with flame-retardant epoxy resin, and designed for consistent performance across a wide temperature range. Enjoy quick delivery, secure packaging, and excellent technical support when buying online now.
Order your Vishay Series K331K15X7RH53L2 ceramic capacitor today and ensure high reliability and compact performance for your electronic projects.
Frequently Asked Questions
Where can I buy Vishay K331K15X7RH53L2?
You can click on the BUY or RFQ button to purchase K331K15X7RH53L2 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part K331K15X7RH53L2?
You can download the K331K15X7RH53L2 datasheet or visit the Vishay website for support.
Who is the manufacturer of K331K15X7RH53L2?
Vishay
