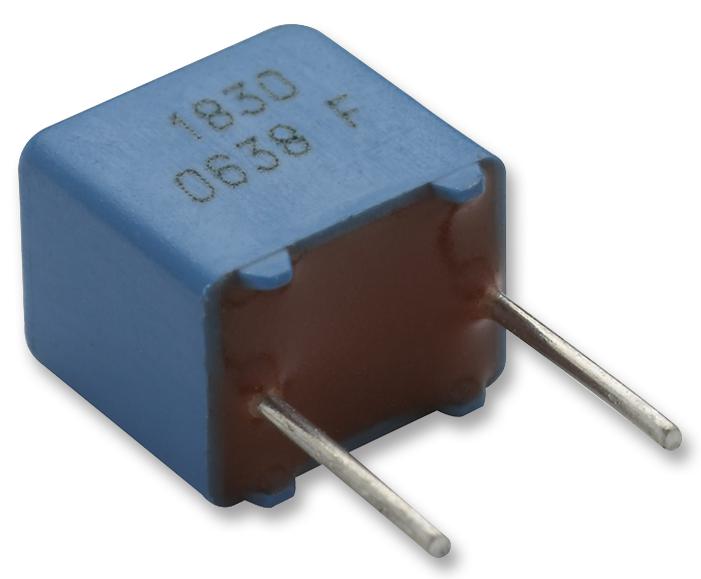

Vishay KP1830247251 AC and Pulse Film Capacitor
Vishay Roederstein KP 1830 series AC and pulse film foil capacitors are designed for high-frequency applications such as oscillators, LC/RC filters, and digital/analog IC coupling. Made with polypropylene film dielectric and tin foil electrodes, these mono construction capacitors offer rated voltages up to 630 V DC and 250 V AC, with capacitance from 100 pF to 0.022 µF. Encased in flame-retardant epoxy resin, they feature a 5 mm lead pitch, are RoHS compliant, and undergo rigorous climatic and vibration testing, ensuring durability and reliable performance in demanding environments.
Vishay KP1830247251 AC and Pulse Film Capacitor Specifications:
- Dielectric: Polypropylene film
- Electrodes: Tin foil
- Construction: Mono construction
- Rated DC Voltages: 63 V, 250 V, 630 V
- Rated AC Voltages: 40 V, 160 V, 250 V
- Capacitance Range: 100 pF to 0.022 µF
- Capacitance Tolerance: ±10%, +5%, +25%, +2%, +1%
- Lead Pitch: 5 mm
- Encapsulation: Plastic case, epoxy resin sealed, UL-class 94 V-0
- Maximum Application Temperature: 100 °C
- Climatic Testing Class: 55/100/56 according to IEC 60068-1
- Size: Length approximately 45 mm, Width 6 mm, Height varies with type
- Body Material: Flame-retardant epoxy resin
- Mounting: Suitable for PCB automatic insertion, with mechanical fixing for vibration resistance
- RoHS compliant and Halogen-Free
Buy the Vishay Series KP AC and Pulse Film Capacitors: KP1830247251
Order Vishay KP1830247251 online today to ensure high-performance operation in oscillators, timing circuits, and filters. These polypropylene film capacitors deliver rated voltages up to 630 V DC and 250 V AC, with capacitance from 100 pF to 0.022 µF. Featuring a flame-retardant epoxy resin encapsulation and robust construction, they are suitable for demanding environments requiring durability and precision. Ideal for high-frequency applications, their standardized lead pitch and RoHS compliance make installation easy and eco-friendly. Purchase now for reliable, long-lasting circuit performance.
Get Vishay KP1830247251 today—built for high-frequency oscillators, filters, and digital IC coupling with reliable, flame-retardant design.
Frequently Asked Questions
Where can I buy Vishay KP1830247251?
You can click on the BUY or RFQ button to purchase KP1830247251 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part KP1830247251?
You can download the KP1830247251 datasheet or visit the Vishay website for support.
Who is the manufacturer of KP1830247251?
Vishay
