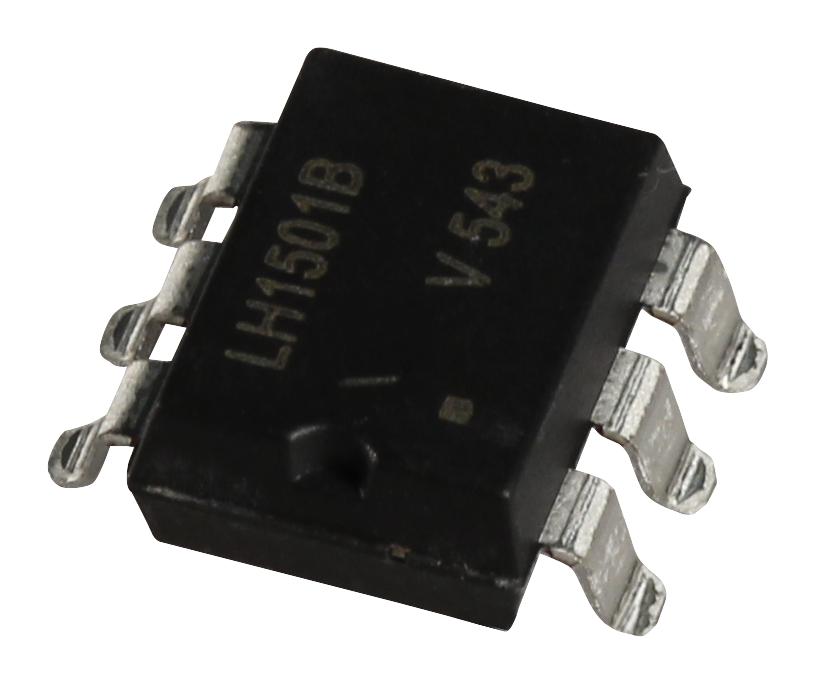

Vishay LH1501BAB Solid State Relay
The LH1501BAB is a solid-state relay with SPST-NC configuration, designed as a multi-chip hybrid device that uses an infrared LED for optoelectronic control. It features photodiode array coupled with MOSFET switches for clean, bounce-free switching, low power dissipation of 550mW, and swift turn-on and turn-off times of up to 3ms. Operating across -40°C to 85°C, it’s ideal for communications, instrumentation, automation, and security applications. The relay supports AC/DC or DC-only configurations and complies with RoHS standards, ensuring reliable and efficient performance in critical electronic systems.
Vishay LH1501BAB Solid State Relay Specifications:
- Input: Infrared LED forward current 50 mA, reverse voltage 5 V
- Output: Load voltage up to 350 V, load current up to 200 mA (DC), peak load current 350 mA for 100 ms
- Isolation voltage: 3750 Vams, SMD package, RoHS compliant
- Operating temperature: -40°C to +85°C, storage -40°C to +125°C
- Power dissipation: 550 mW, pin soldering temperature max 260°C for 10 seconds
- Switching times: Turn-on 2-3 ms, turn-off 1-3 ms
Buy the Vishay Series LH1501 Solid State Relay: LH1501BAB
Purchase the Vishay LH1501BAB solid state relay online today to ensure reliable, bounce-free switching with quick response times. This SPST-NC device features an infrared LED control system, capable of handling voltages up to 350 V and currents up to 200 mA, making it suitable for telecom, security, instrumentation, and industrial automation applications. Its compact SMD package is RoHS compliant, with low power dissipation of 550mW and a wide operating temperature range of -40°C to 85°C. Order now for high performance and flexible AC/DC operation in your electronic projects.
Buy Vishay LH1501BAB now and experience unmatched reliability with low power consumption and fast switching ideal for communications and control systems.
Frequently Asked Questions
Where can I buy Vishay LH1501BAB?
You can click on the BUY or RFQ button to purchase LH1501BAB from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part LH1501BAB?
You can download the LH1501BAB datasheet or visit the Vishay website for support.
Who is the manufacturer of LH1501BAB?
Vishay
