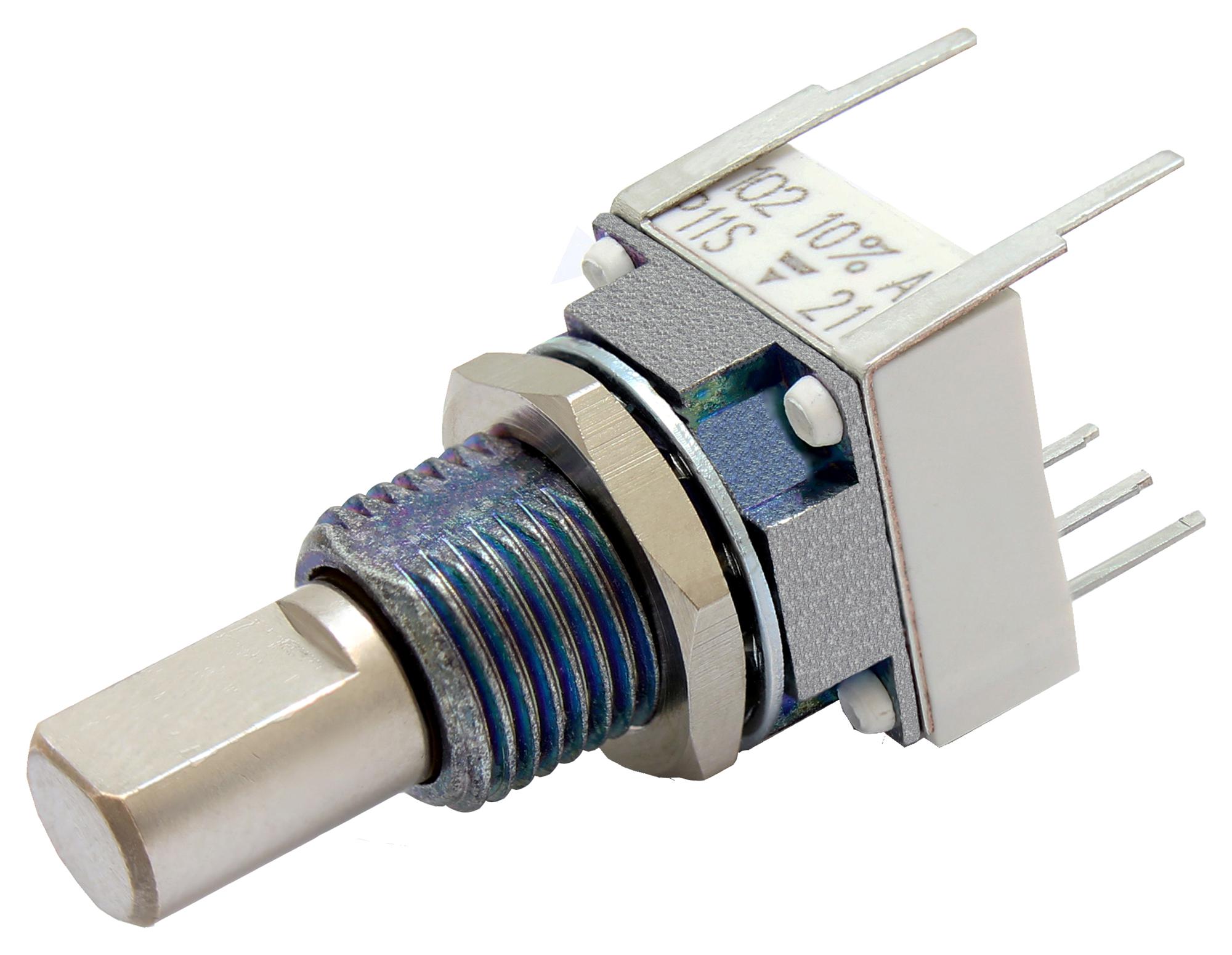

Vishay P11H1F0GHFW10472KA High Torque Panel Potentiometer
The P11H series is a highly versatile, modular high torque panel potentiometer designed for demanding industrial environments. Featuring a 12.5 mm square single turn control with a 6.35 mm shaft, it offers high mechanical stability under vibrations and shocks, with an IP64 sealing level. It supports up to 7 modules, includes a switch module option, and is customizable with various shaft, taper, and wiring options. Suitable for precise, durable adjustments with a lifespan of 50,000 cycles, it complies with CECC 41000 and IEC 60393-1 standards, making it ideal for industrial control panels and automation systems.
Vishay P11H1F0GHFW10472KA High Torque Panel Potentiometer Specifications:
- Resolution: 270° travel with 10° initial travel
- Resistance range: 1 kΩ, 4.7 kΩ, 10 kΩ, 47 kΩ, 100 kΩ ± 20% tolerance
- Power Rating: 1 W (single module), 0.5 W per module at 70°C
- Electrical voltage: 350 V maximum
- Mechanical travel: 300° ± 5°
- Operating torque: 8 Ncm ± 2 Ncm, end stop torque max 80 Ncm
- Sealing level: IP64
- Environmental temp. range: -55°C to +125°C
- Endurance: 50,000 cycles
- Dimensions: 12.5 mm square, shaft diameter 6.35 mm, modules supported: up to 7
- Switch module: Yes, optional with various switch types and configurations
- Material: Cermet resistive element, robust construction for industrial applications
- Certifications: CECC 41000, IEC 60393-1
- Weight: 7 to 9 grams per module
Buy the VISHAY P11H1F0GHFW10472KA – Reliable High Torque Industrial Control Potentiometer
Purchase the Vishay P11H1F0GHFW10472KA high torque panel potentiometer online today to ensure your industrial projects benefit from precise, durable control solutions. Featuring IP64 sealing, support for up to 7 modules, and customizable options for shafts and wiring, this robust rotary control component is ideal for demanding industrial automation and control panel applications. With a lifespan of 50,000 cycles and compliance with strict standards, buying online guarantees fast delivery and quality assurance for your manufacturing needs.
Order your Vishay Series P11H1F0GHFW10472KA high torque panel potentiometer today and enhance the durability and precision of your industrial control systems.
Frequently Asked Questions
Where can I buy Vishay P11H1F0GHFW10472KA?
You can click on the BUY or RFQ button to purchase P11H1F0GHFW10472KA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part P11H1F0GHFW10472KA?
You can download the P11H1F0GHFW10472KA datasheet or visit the Vishay website for support.
Who is the manufacturer of P11H1F0GHFW10472KA?
Vishay
