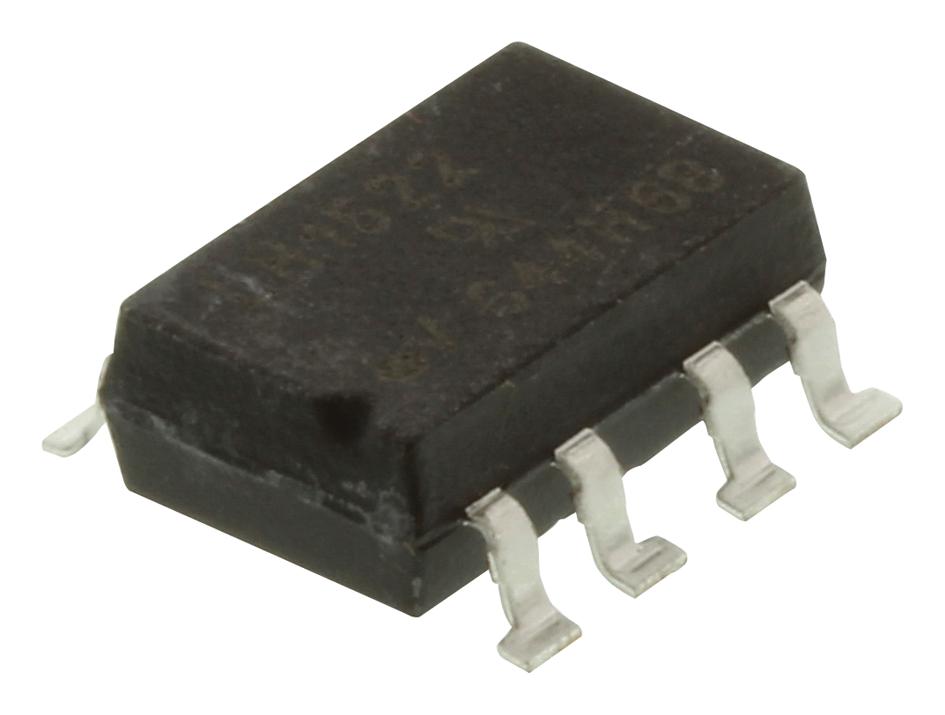

Vishay LH1502BACTR Solid-State Relay
The LH1502BACTR is a dual solid-state relay with 1 form A and 1 form B switches, designed for high surge capability and low power consumption. It features an infrared LED control, photodiode array with MOSFET switches, 3750 Vams isolation test voltage, load voltage up to 350 V, and load current of 150 mA. Suitable for telecom, instrumentation, and industrial controls, it meets UL, CSA, and FIMKO approvals, offering reliable and bounce-free switching in compact packages.
Vishay LH1502BACTR Solid-State Relay Specifications:
- Input: LED forward current 50 mA, reverse voltage 8 V
- Output: Load voltage 350 V, load current 150 mA, peak load 350 mA
- Isolation test voltage 3750 Vams, pole-to-pole 1600 V
- Ambient operating temperature -40°C to +85°C, storage -40°C to +125°C
- Output resistance: NO 20 Ω typical, NC 42 Ω typical
- Switching times: turn-on approximately 2–6 ms, turn-off 0.8–3 ms
- Output power dissipation 600 mW, insulation and RoHS compliant
- Package options: DIP-8, SMD-8 (tape and reel or tube), footprint and schematic available
- Approvals: UL1577, CSA certification, FIMKO
- Designed for telecom switching, on/off hook control, ground fault protection, industrial controls, instrumentation
Buy the Buy Vishay Solid-State Relay Part Number LH1502BACTR Online
Purchase the Vishay LH1502BACTR solid-state relay online now to ensure reliable switching performance. Featuring high surge capacity, 3750 V isolation, load voltage up to 350 V, and low power consumption, it is ideal for telecom, instrumentation, and industrial applications. Available in DIP-8 and SMD-8 packages with RoHS compliance, UL, CSA, and FIMKO approvals, this relay ensures bounce-free operation and robust durability in demanding environments. Buy now and upgrade your control systems with confidence.
Order your Vishay Series LH1502BACTR high surge solid-state relay today and enhance your telecom and industrial control projects with dependable quality.
Frequently Asked Questions
Where can I buy Vishay LH1502BACTR?
You can click on the BUY or RFQ button to purchase LH1502BACTR from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part LH1502BACTR?
You can download the LH1502BACTR datasheet or visit the Vishay website for support.
Who is the manufacturer of LH1502BACTR?
Vishay
