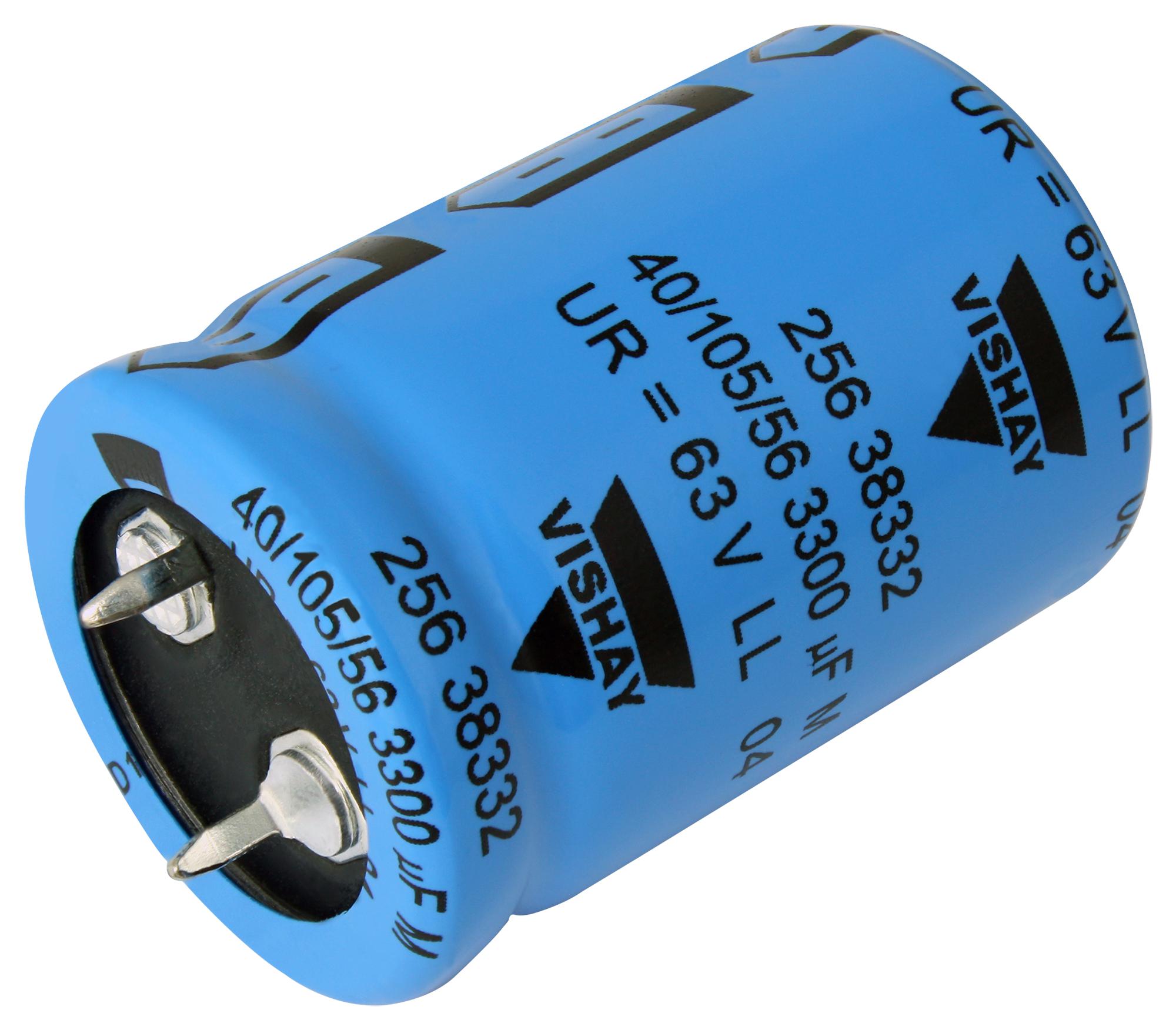

Vishay MAL219357331E3 Aluminum Electrolytic Capacitors
Vishay BCcomponents offers the 193 PUR-SI Aluminum Electrolytic Capacitors, designed for high ripple current applications across industrial power, solar inverters, motor controls, and filtering systems. These polarized, non-solid electrolyte capacitors feature a compact snap-in design, with useful life up to 5000 hours at 105°C, and are available up to 500V. They are RoHS compliant, marked for easy polarity identification, and meet IEC 60384-4 standards, ensuring high reliability and durability in demanding environments.
Vishay MAL219357331E3 Aluminum Electrolytic Capacitors Specifications:
- Nominal case size: 22x 25 to 35 x 60 mm
- Rated capacitance range: 47 UF to 820 UF
- Tolerance on capacitance: +20%
- Rated voltage range: 400 V to 500 V
- Category temperature: -40°C to 105°C
- Endurance test at 105°C: 2000 hours
- Useful life at 105°C: 5000 hours
- Shelf life at 0 V, 105°C: 1000 hours
- Ripple current: up to 1070 mA at 100 Hz
- Leakage current: < 0.01 Ca x Un after 5 min at rated voltage
- Equivalent series resistance (ESR): Max 1.3 x specified at 100 Hz
- Maximum surge voltage: > 400 V with 10% margin
- Impedance at 10 kHz: Max 1.5 x specified
- Dimensions: 22x 25 mm to 35x 60 mm depending on capacitance
- Material: Aluminum oxide dielectric, non-solid electrolyte
- Markings include capacitance, voltage, date code, and polarity indicator
- Compliance: IEC 60384-4, RoHS
Buy the Vishay 193 PUR-SI U+2013 Reliable Aluminum Electrolytic Capacitors for Industrial Applications
Buy Vishay 193 PUR-SI aluminum electrolytic capacitors online today for reliable performance in industrial power,, filtering, solar inverters, and motor control applications. These durable, compact capacitors feature high ripple current, long life at elevated temperatures, and RoHS compliance. Their snap-in design allows for easy installation in various configurations. Engineered for demanding environments, they ensure stability, efficiency, and longevity in power electronics. Secure your stock now and benefit from their proven reliability for your industrial and power electronic needs.
Get Vishay 193 PUR-SI today—built for precision, high ripple current, and long-lasting durability in industrial environments.
