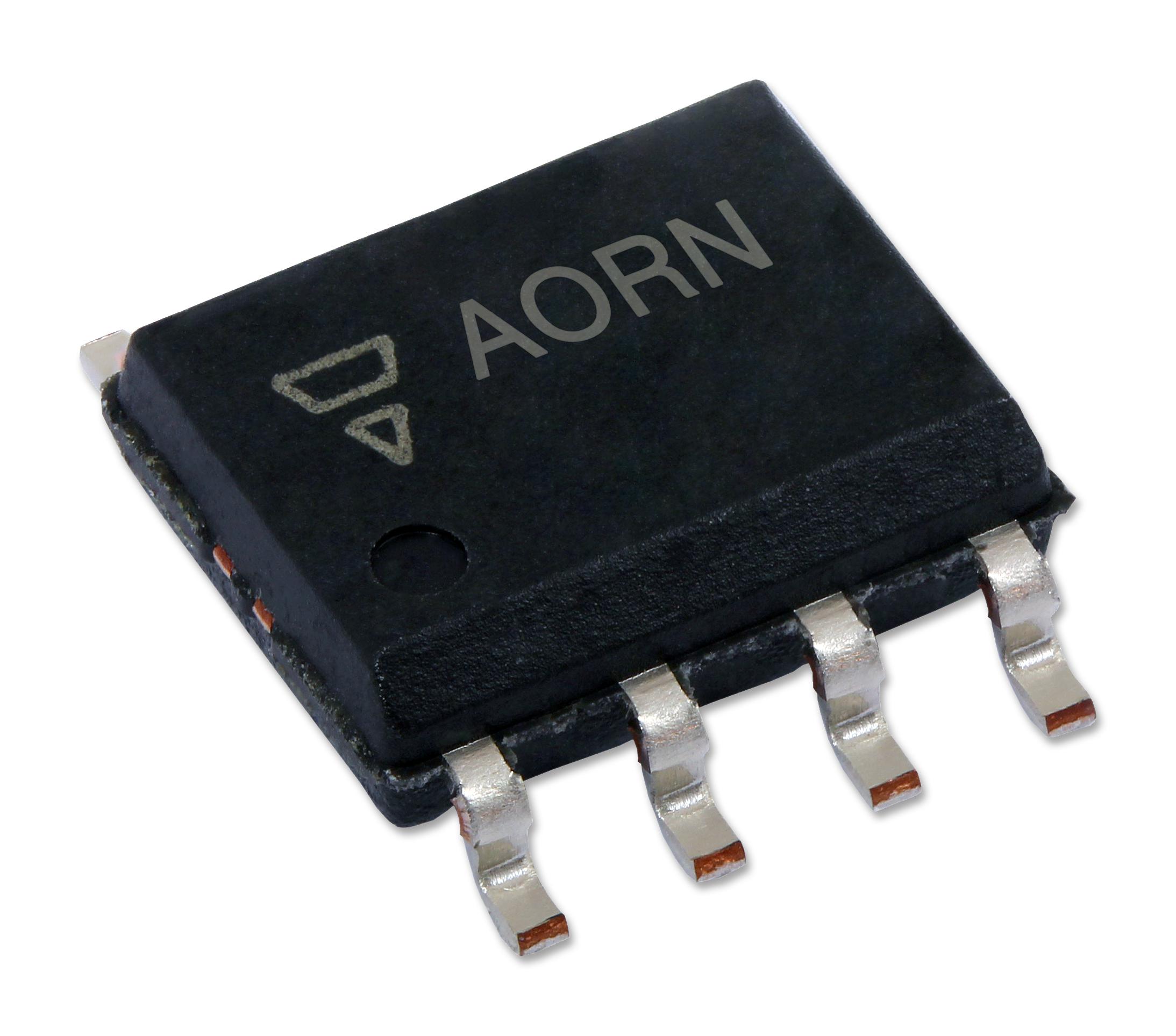

Vishay AORN101AT3 Resistor Network
The AORN series features a compact 8-pin narrow body SMT package with a tantalum nitride resistive film on high purity alumina substrate for enhanced moisture resistance and ESD protection. Ideal for voltage divider, engine control, signal conditioning, and feedback circuits, it offers excellent ratio stability (AR + 0.015%), low TCR (+5 ppm/°C), and rugged construction. Meets MIL STD 202, JESD22, and AEC-Q200 standards, providing reliable performance in automotive, industrial, and electronic applications with temperature ratings up to +155°C and resistance range from 1kΩ to 100kΩ.
Vishay AORN101AT3 Resistor Network Specifications:
- Material: Tantalum nitride (Ta2N)
- Resistance Range: 1 kΩ to 100 kΩ per resistor
- Number of Pins: 8
- TCR: Absolute 25 ppm/°C, Tracking 5 ppm/°C
- Tolerance: +0.10% to +1% (absolute), +0.05% to +0.1% (ratio)
- Power Rating: 100 mW at +70°C; 400 mW package at +70°C
- Maximum Working Voltage: 100 V
- Operating Temp Range: -55°C to +155°C
- Dimensions: Length 0.157 inches (3.99 mm), width 0.050 inches (1.27 mm), height 0.195 inches max (4.93 mm)
- Environmental: MIL STD 202, JESD22, AEC-Q200 compliant, moisture resistant, sulfur resistant, RoHS and Halogen-Free
- Mechanical: Molded epoxy body, copper alloy terminals with Ni/Pd/Au finish
- Noise: < -30 dB, Thermal EMF: 0.08 μV/°C
Buy the Vishay Series AORN Resistor Network: AORN101AT3
Discover the high-quality Vishay Series AORN101AT3 resistor network, engineered for durability and precision in automotive, industrial, and signal conditioning circuits. Its compact design, 8-pin SMT package, and robust construction ensure consistent performance under harsh conditions, including high temperatures up to +155°C. Perfect for voltage dividers, feedback loops, and engine control units, this network offers excellent stability, low TCR, and moisture resistance. Purchase online today for dependable, premium electronic components that meet strict industry standards and enhance your project reliability.
Order your Vishay Series AORN101AT3 precision resistor network today and ensure reliable, high-stability performance in your electronic applications.
Frequently Asked Questions
Where can I buy Vishay AORN101AT3?
You can click on the BUY or RFQ button to purchase AORN101AT3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part AORN101AT3?
You can download the AORN101AT3 datasheet or visit the Vishay website for support.
Who is the manufacturer of AORN101AT3?
Vishay
