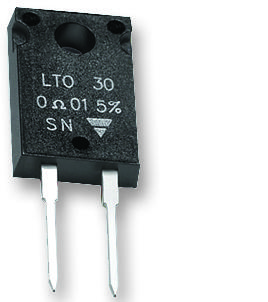

Vishay LTO030F20001FTE3 High Power Resistor
The LTO 30 Watt Power Resistor from Vishay employs thick film technology with a ceramic mounting design, providing reliable performance in high-power applications. It features a compact TO-220 package with an isolated case, broad resistance range from 0.010 to 550K ohms, and a power rating of 30 W at 25°C. This resistor exhibits excellent thermal stability, a low inductance of less than 0.1 μH, and high dielectric strength. It is RoHS compliant, suitable for high-temperature environments from -55°C to +150°C, and designed for direct mounting on heatsinks for optimal heat dissipation.
Vishay LTO030F20001FTE3 High Power Resistor Specifications:
- Power Rating: 30 W at +25°C case temperature
- Resistance Range: 0.010 Ω to 550 kΩ
- Tolerance: ±1% to ±10%
- Temperature Range: -55°C to +150°C
- Thermal Resistance: Rθ(c–h): 4.2 °C/W
- Dielectric Strength: 1500 Vrms for 1 minute
- Insulation Resistance: >10 MΩ
- Inductance: <0.1 μH
- Maximum Overload Voltage: 375 V
- Case Dimensions: Standard TO-220 package, dimensions in millimeters as specified
- Climatic Category: 55/155/56
Buy the Buy Vishay LTO 30 Watt Power Resistor Part Number LTO030F20001FTE3 Online
Purchase the Vishay high power resistor online to benefit from its durable thick film construction, broad resistance options, and excellent thermal stability. Perfect for high-temperature environments and industrial applications, this resistor offers reliable performance, low inductance, and easy mounting in a compact TO-220 package. Raising your equipment’s reliability, it ensures efficient heat dissipation with direct ceramic mounting compatibility. Order now to optimize your high-power circuits with Vishay’s trusted resistor technology, ensuring long-lasting and stable operation in demanding conditions.
Buy Vishay LTO030F20001FTE3 now and ensure reliable high-power performance with its robust thick film technology and compact design.
