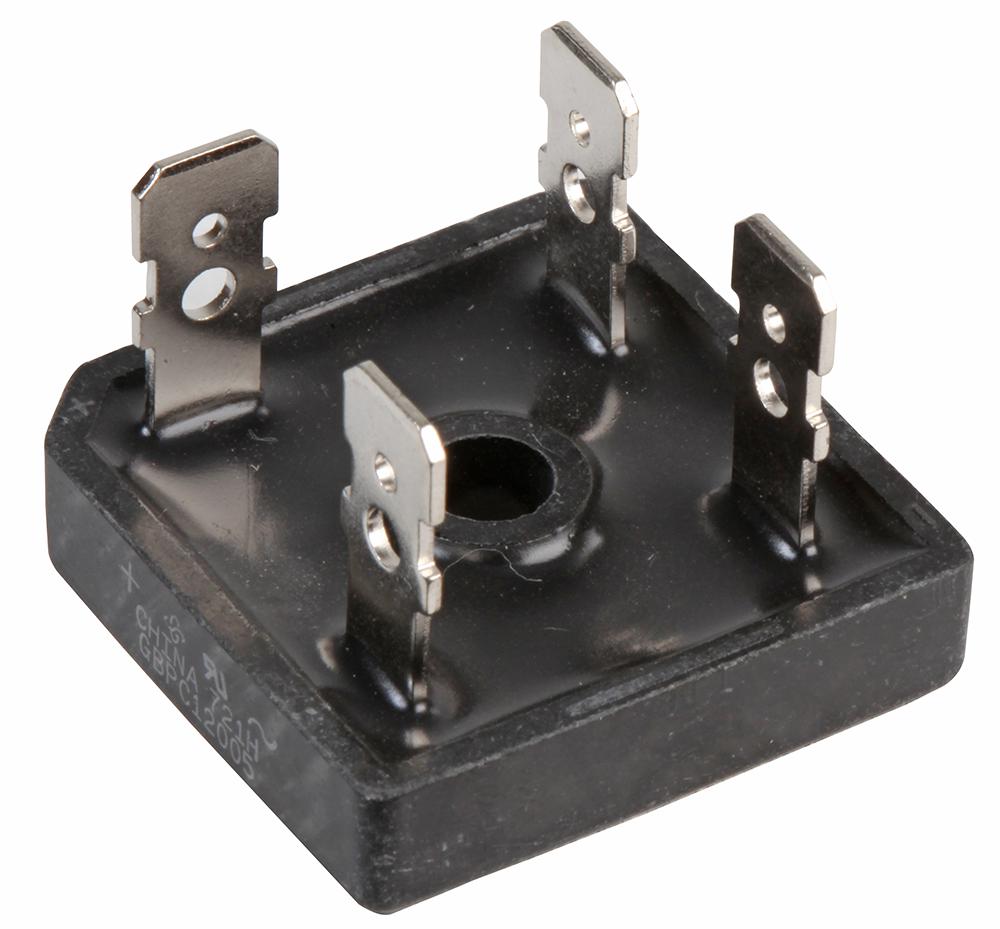

Vishay VSGBPC2506A Bridge Rectifier
The VGA series consists of highly efficient, compact single-phase bridge rectifiers suitable for general power and instrumentation applications. Designed with glass passivated diode chips and high thermal conductivity packages, these modules offer excellent power/volume ratio and are rated for currents up to 35A with voltage ratings from 200V to 1200V. They feature universal terminals including push-on, wrap-around, or solder options, and are qualified for industrial and consumer use, with UL approval and RoHS compliance, ensuring reliable performance under demanding conditions.
Vishay VSGBPC2506A Bridge Rectifier Specifications:
- Current Ratings: 25A, 35A
- Voltage Range: 200V to 1200V
- Maximum repetitive peak AC voltage: 200V - 1200V
- Peak forward surge current: 420A (25A) / 500A (35A)
- Peak non-repetitive surge current: 1130A / 1300A
- Average forward current: 25A / 35A
- Temperature Range: -55°C to +150°C
- Junction to case thermal resistance: 1.4 K/W
- Thermal resistance, case to heatsink: 0.2 K/W
- Mounting torque: 2.0 Nm
- Weight: 16g (25A) / 9g (W version)
- Isolation Voltage: 2700 V
- UL approval: E300359
- Materials: Glass passivated diode chips, RoHS-compliant package
- Packaging: Standard package, wire lead (W) or push-on terminals
Buy the Buy Vishay Semiconductors SeriesVSGBPC2506A Part Number VSGBPC2506A Online
Simplify your power supply design by purchasing the Vishay SeriesVSGBPC2506A bridge rectifier online. This reliable component supports up to 35A current and 1200V voltage ratings, making it ideal for power and instrumentation applications. With high thermal conductivity, UL approval, and RoHS compliance, it ensures safety and efficiency. Easy to install, with universal terminals including push-on, wrap-around, or solder, this compact rectifier is a perfect choice for engineers seeking durable, high-performance power modules for demanding environments. Order now to upgrade your systems with dependable technology.
Order your Vishay SeriesVSGBPC2506A single-phase bridge rectifier today for reliable power conversion with high surge current capacity and UL approval, perfect for industrial and consumer applications.
