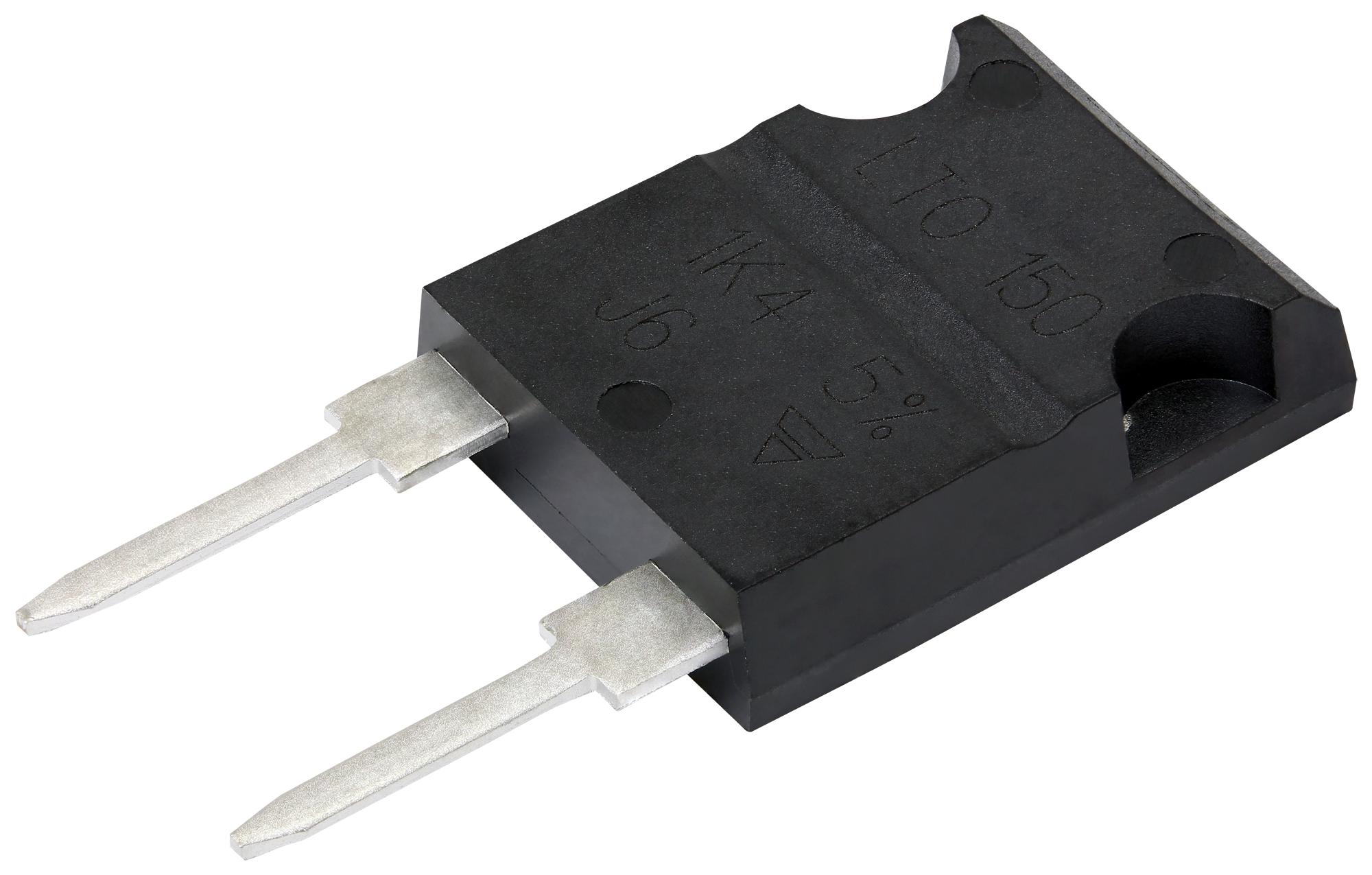

Vishay LTO150F470R0JTE3 Power Resistor
The LTO150 power resistor features thick film technology, designed for direct heatsink mounting with a clip. It delivers 150 W at case temperatures up to 45°C, with a broad resistance range from 0.03Ω to 1.3MΩ. Suitable for industrial and automotive applications, it complies with RoHS and EN45545-2 standards. The compact TO-247 package enables easy installation, featuring high thermal dissipation, mechanical robustness, and a low thermal resistance of 0.87°C/W. Certified for AEC-Q200, it withstands harsh environments with excellent electrical and mechanical specifications.
Vishay LTO150F470R0JTE3 Power Resistor Specifications:
- Power Rating: 150 W at +45 °C case temperature
- Resistance Range: 0.03Ω to 1.3MΩ
- Thermal Resistance: 0.87 °C/W
- Case Temperature Range: -55 °C to +175 °C
- Mechanical Protection: Molded onto heatsink with clip mount
- Dielectric Strength: 3000 V AC for 1 min
- Insulation Resistance: > 210 MΩ at 25 °C
- Temperature Coefficient: ±200 ppm/°C
- Weight: Max. 4g
- Certifications: RoHS, UL, EN45545-2, AEC-Q200
Buy the Buy Vishay Sfernice LTO Series Power Resistor Part Number LTO150F470R0JTE3 Online
Discover the high-performance power resistor designed for industrial and automotive applications. The Vishay Sfernice LTO150F470R0JTE3 offers 150W power handling, broad resistance options, and robust construction. Its compact TO-247 package makes installation straightforward, with excellent thermal management and electrical characteristics. Built to meet RoHS, UL, and EN45545-2 standards, this resistor ensures reliable operation even in harsh environments. Optimize your power systems with this durable, high-quality resistor available for easy online purchase today.
Buy Vishay Sfernice LTO150F470R0JTE3 now and experience unmatched reliability and high power dissipation for demanding industrial and automotive applications.
Frequently Asked Questions
Where can I buy Vishay LTO150F470R0JTE3?
You can click on the BUY or RFQ button to purchase LTO150F470R0JTE3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part LTO150F470R0JTE3?
You can download the LTO150F470R0JTE3 datasheet or visit the Vishay website for support.
Who is the manufacturer of LTO150F470R0JTE3?
Vishay
