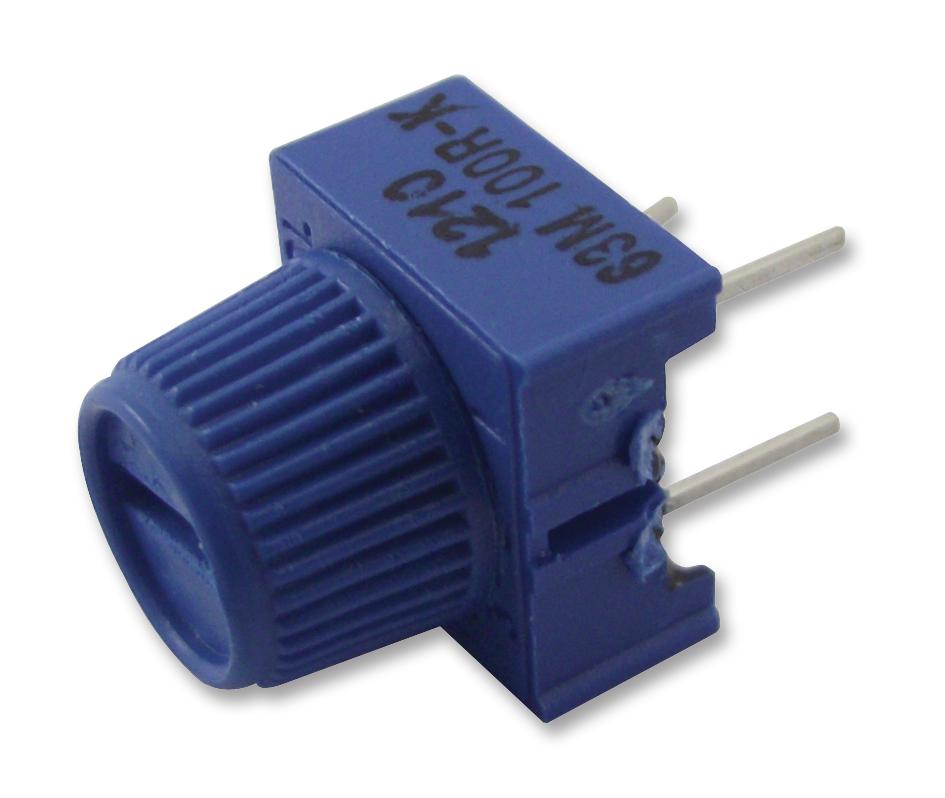

Vishay M63M101KB30T607 Cermet Trimmer
The Vishay Spectrol 63 series is a reliable 3/8 inch square single-turn cermet trimmer designed for precise, repeatable adjustments in electronic circuits. Featuring arrow and graduations for repeatable settings, an O-ring seal for solvent and aqueous washing, and a solid end stop, it ensures durability and consistent performance. Available in multiple pin configurations with a resistance range from 100Ω to 2MΩ and a tolerance of ±10%, it is suitable for diverse industrial applications requiring precise resistance tuning and high reliability.
Vishay M63M101KB30T607 Cermet Trimmer Specifications:
- Resistance range: 100Ω to 2MΩ
- Resistance tolerance: ±10%
- Effective travel: 270° nominal
- Temperature coefficient: + 100 ppm/°C
- Power rating: 0.5 W at +70°C, derated to 0 W at 125°C
- Maximum voltage: 250 V
- Dielectric withstand voltage: 1000 Vac at sea level; 250 Vac at 80,000 ft
- Insulation resistance: > 1000 MΩ at 600 V
- Contact resistance variation: 1% or 1Ω
- Mechanical travel: 300° +50
- Starting torque: 35 mNm max
- Temperature range: -55°C to +125°C
- Sealing: IP64
- Climatic category: 56/125/21
- Terminal material: Pure Sn (code 3)
- Weight: approx. 0.85 g
Buy the VISHAY M63M101KB30T607 – Reliable Cermet Trimmer for Industrial Applications
Purchase the VISHAY M63 series cermet trimmer online today—engineered for industrial precision, with a sealed design for durability, a wide resistance range from 100Ω to 2MΩ, and tolerance of ±10%. Perfect for accurate voltage and current adjustments in industrial automation, communication, and control systems. Its IP64 sealing and high resistance to environmental factors make it ideal for demanding applications. Secure your supply of high-quality trimmers, ensuring reliable operation and long-lasting performance in your projects today.
Get VISHAY M63M101KB30T607 today—built for precision, durability, and easy adjustment in demanding industrial environments.
Frequently Asked Questions
Where can I buy Vishay M63M101KB30T607?
You can click on the BUY or RFQ button to purchase M63M101KB30T607 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M63M101KB30T607?
You can download the M63M101KB30T607 datasheet or visit the Vishay website for support.
Who is the manufacturer of M63M101KB30T607?
Vishay
