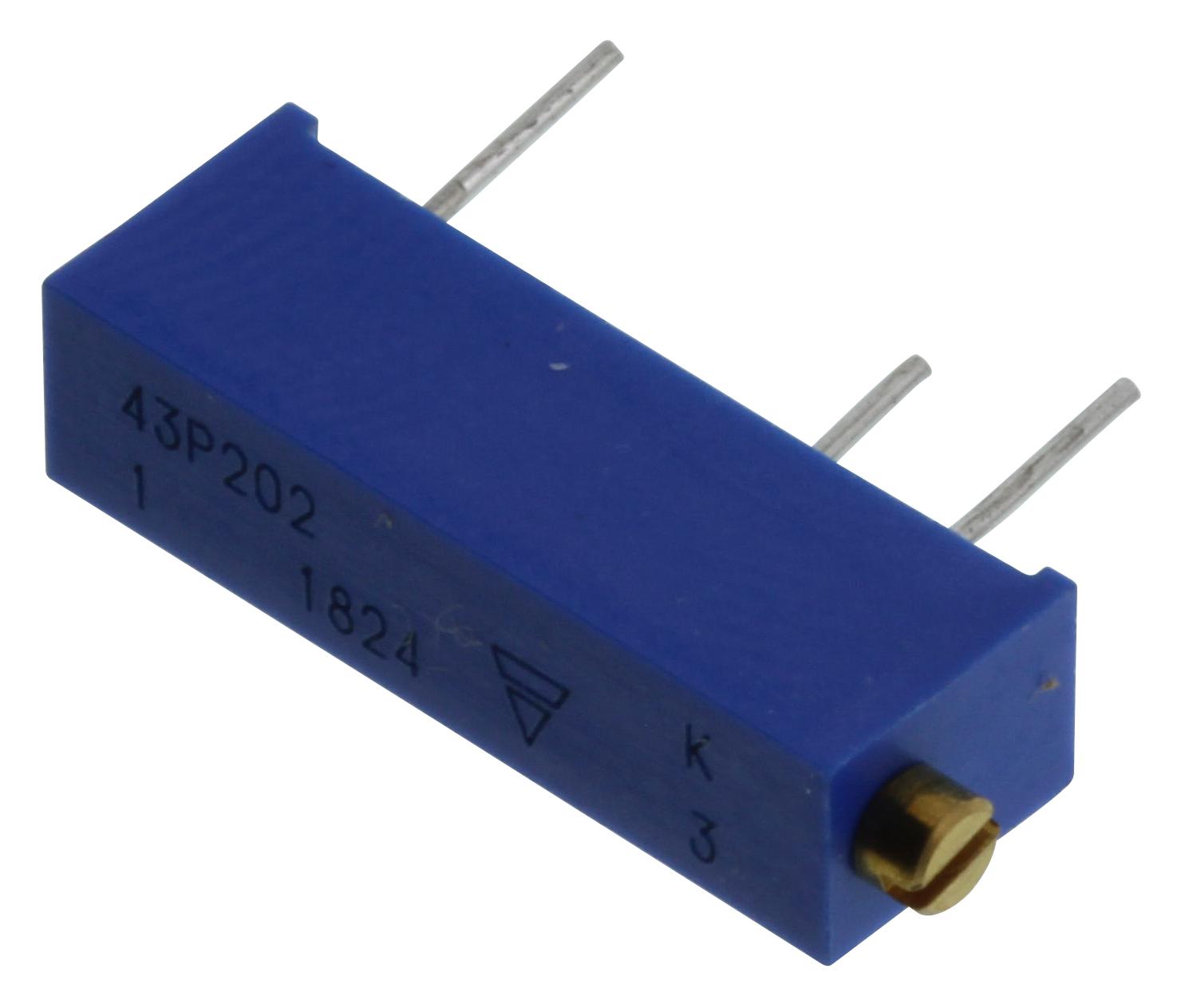

Vishay M43P202KB40 Multi-turn Cermet Trimmer
The Vishay Spectrol 3/4 inch rectangular multi-turn cermet trimmer offers precise resistance adjustment with a wide ohmic value range from 100 Ω to 5 MΩ, suitable for various electronic applications. It features a robust 0.75 W power rating at 70°C, sealed IP67 for durability, and a mechanical travel of 18 turns plus 5%. Its RoHS compliance and built-in multi-finger wiper ensure high reliability, making it ideal for calibration, control, and fine-tuning in industrial and electronic equipment.
Vishay M43P202KB40 Multi-turn Cermet Trimmer Specifications:
- Resistive element: Cermet
- Resistance range: 100 Ω to 5 MΩ
- Power rating: 0.75 W at 70°C
- Tolerance: +10%
- Mechanical travel: 18 turns +5
- Operating torque: maximum 3.5 Nem
- End resistance: 1% or 20 Ohms
- Dielectric strength: 4000 V RMS
- Insulation resistance: > 20 MO at 500 V
- Temperature range: -55°C to +125°C
- Sealing: Fully sealed, IP67
- Temperature coefficient: See standard resistance element table
- Limiting voltage: 400 V
- Contact resistance variation: Max 1%
- Net weight: Max 4.2 g
- Wiper travel: Approx. 50%
- Terminals: Pure Sn (code 63)
Buy the VISHAY Series Spectrol 3/4 Inch Multi-Turn Cermet Trimmer: M43P202KB40
Purchase the Vishay Spectrol multi-turn cermet trimmer online today to ensure accurate resistance tuning for your electronic and industrial applications. With a resistance range from 100 Ω to 5 MΩ, IP67 sealing, and a robust 0.75 W power rating at 70°C, this precision component is ideal for calibration, control, and fine-tuning tasks. Its durable construction, compliance with RoHS, and easy adjustment make it a must-have for engineers and technicians seeking reliable performance in demanding environments.
Buy Vishay M43P202KB40 now and experience unmatched reliability and precise resistance adjustment in your electronic projects.
Frequently Asked Questions
Where can I buy Vishay M43P202KB40?
You can click on the BUY or RFQ button to purchase M43P202KB40 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M43P202KB40?
You can download the M43P202KB40 datasheet or visit the Vishay website for support.
Who is the manufacturer of M43P202KB40?
Vishay
