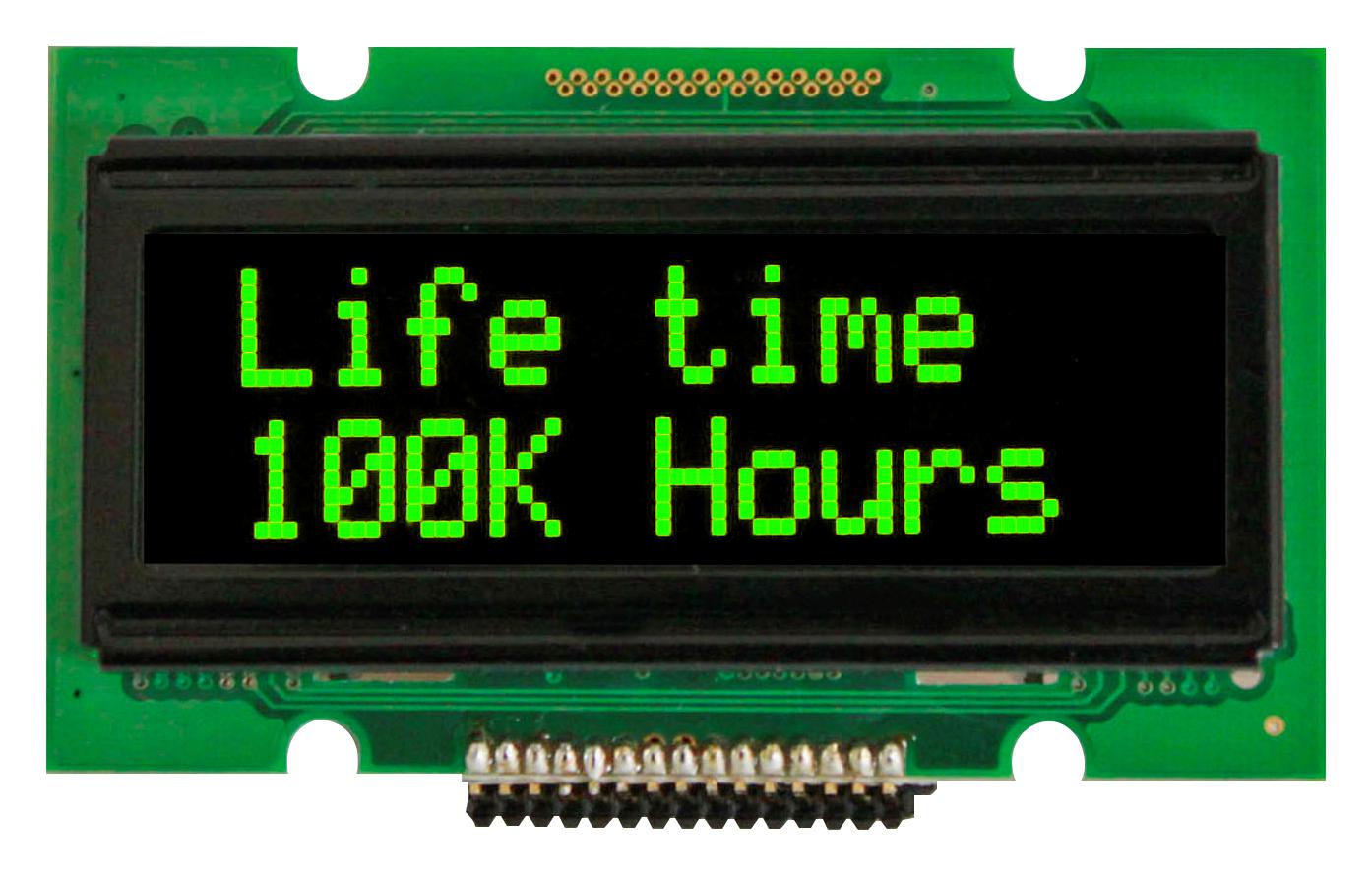

Vishay O012N002AGPP5N0000 OLED Character Display
The OLED module features a bright green-emitting display capable of showing 12 by 2 characters, with integrated controller, operates on 5V power, and has a 1/16 duty cycle for refresh. Dimensions include 55.7mm width, 32mm height, and 11mm depth, with a viewing area of 46mm by 14.5mm and active area of 38.95mm by 11.8mm. Dot size measures 0.45mm by 0.6mm with a pitch of 0.55mm by 0.7mm. Suitable for imaging, video, and vision applications, it uses passive matrix technology with polarized options for sunlight readability.
Vishay O012N002AGPP5N0000 OLED Character Display Specifications:
- Display format: 12 x 2 characters
- Material: OLED passive matrix
- Display color: Green
- Supply voltage: 5V (±0.5V)
- Operating voltage: 3V optional
- Module dimensions: 55.7mm x 32.0mm x 11.0mm
- Viewing area: 46.0mm x 14.5mm
- Active area: 38.95mm x 11.80mm
- Dot size: 0.45mm x 0.6mm
- Dot pitch: 0.55mm x 0.70mm
- Character size: 2.65mm x 5.5mm
- Character pitch: 3.6mm x 6.3mm
- Duty cycle: 1/16
- Interface options: 6800, 8080, SPI
- Power consumption: approximately 32mA at 5V
- Mounting holes: 31.2mm by 30mm
Buy the Buy Vishay OLED-012N002A Part Number O012N002AGPP5N0000 Online
Purchase the Vishay OLED-012N002A online today to enhance your imaging, video, or vision system. This compact 12x2 character green OLED display includes an integrated controller, operates reliably on 5V power, and features a duty cycle of 1/16 for clear and stable visuals. Its dimensions are optimized for space-constrained environments, with a viewing area of 46mm by 14.5mm and active area of 38.95mm by 11.8mm. Perfect for demanding industrial and electronic applications requiring high visibility and durability.
Get Vishay OLED-012N002A today—built for precision and long-lasting brightness in display applications.
