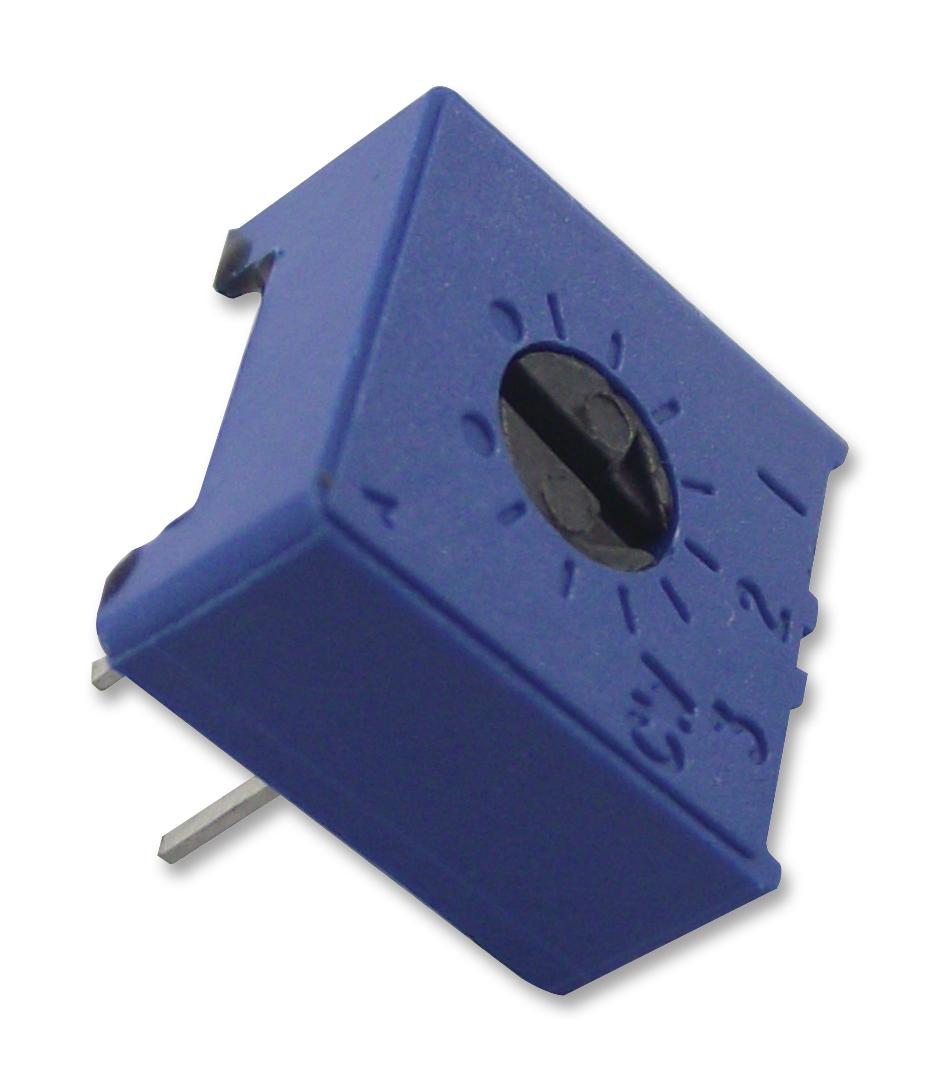

Vishay M63M105KB40 Single-Turn Cermet Trimmer
The Vishay Spectrol 3/8 inch Square Single-Turn Cermet Trimmer offers precise and repeatable settings with arrow and graduations, ideal for electronic adjustment and calibration. Its RoHS-compliant hermetically sealed design features a multi-finger wiper for better contact resistance, an “O” ring seal for solvent and aqueous washing, and solid end stops for durability. Available in multiple pin configurations with a resistance range of 100 ohms to 2 megaohms, it provides reliable performance across temperature ranges of -55°C to +125°C, making it suitable for various electronic control applications.
Vishay M63M105KB40 Single-Turn Cermet Trimmer Specifications:
- Resistance range: 100Ω to 2MΩ
- Resistance tolerance: ±10%
- Temperature coefficient: +100 ppm/°C (typical)
- Power rating: 0.5 W at +70°C, derated to 0 W at 125°C
- Effective travel: 270° nominal
- Mechanical travel: 300° ±50°
- End resistance: 2Ω or 1% whichever is greater
- Dielectric withstand voltage: 1000 Vac at sea level
- Insulation resistance: 1000 MΩ minimum
- Climatic category: 56/125/21
- Sealing: IP64
- Temperature range: -55°C to +125°C
- Contact resistance variation: 1% or 1Ω, whichever is greater
- Terminals: Pure Sn (code 3)
Buy the Buy Vishay Spectrol Single-Turn Cermet Trimmer Part Number M63M105KB40 Online
Experience reliable performance with the Vishay Spectrol Single-Turn Cermet Trimmer, offering highly precise resistance adjustments from 100 ohms to 2 megaohms. Its sealed IP64 design ensures durability and protection against environmental factors, making it suitable for calibration, tuning, and control applications. With a rugged construction and a 270° effective travel, this trimmer provides accurate, repeatable settings. Perfect for professional electronics, it’s available for quick online purchase, ensuring fast delivery and excellent quality for your demanding projects.
Get Vishay Spectrol M63M105KB40 today—built for precise adjustments and long-lasting durability in electronic calibration.
Frequently Asked Questions
Where can I buy Vishay M63M105KB40?
You can click on the BUY or RFQ button to purchase M63M105KB40 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M63M105KB40?
You can download the M63M105KB40 datasheet or visit the Vishay website for support.
Who is the manufacturer of M63M105KB40?
Vishay
