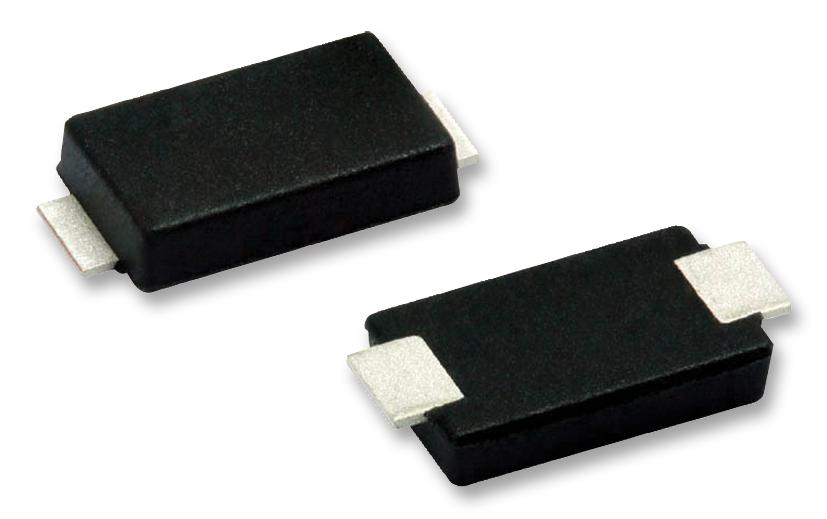

Vishay VSS8D5M6M3H Schottky Diode
The VSS8D5M6M3H is a high-performance surface-mount Schottky diode in a SlimSMAW (DO-221AD) package, ideal for high-frequency inverters, DC/DC converters, and automotive applications. It features a maximum repetitive peak reverse voltage of 60V, an average forward rectified current of 27A, and low forward voltage drop of approximately 0.52V at 5A and 125°C. Its compact and halogen-free design ensures reliable operation, rated UL 94 V-0 for flammability, with a thermal resistance of 12-15°C/W, making it suitable for demanding industrial and automotive environments.
Vishay VSS8D5M6M3H Schottky Diode Specifications:
- Maximum Repetitive Peak Reverse Voltage: 60 V
- Average Forward Rectified Current: 27 A
- Peak Forward Surge Current: 60 A
- Operating Junction Temperature Range: -40°C to +175°C
- Storage Temperature Range: -55°C to +175°C
- Thermal Resistance Junction-to-Ambient: 12-15°C/W
- Package: SlimSMAW (DO-221AD), halogen-free, UL 94 V-0 rated
- Material: Matte tin plated leads, solderable per J-STD-002 and JESD 22-B102
- Mechanical Dimensions: 0.228 inches (6.80 mm) ref., with cathode band for polarity amid the compact package design
Buy the Buy Vishay VSS8D5M6M3H Part Number VSS8D5M6M3H Online
Acquire the Vishay VSS8D5M6M3H Schottky diode today—built for high efficiency, low forward voltage, and rapid switching in demanding industrial, automotive, and power conversion applications. Its compact SlimSMAW package ensures easy mounting on compact PCBs while providing excellent thermal performance, rated UL 94 V-0 for safety. Ideal for high-frequency inverters, polarity protection, and DC/DC converters, this diode guarantees long-lasting durability, efficient energy conversion, and reliable operation in harsh environments. Order online now to enhance your power systems with confidence.
Get Vishay VSS8D5M6M3H today—engineered for high current, low forward voltage, and reliable switching in industrial and automotive power modules.
Frequently Asked Questions
Where can I buy Vishay VSS8D5M6M3H?
You can click on the BUY or RFQ button to purchase VSS8D5M6M3H from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VSS8D5M6M3H?
You can download the VSS8D5M6M3H datasheet or visit the Vishay website for support.
Who is the manufacturer of VSS8D5M6M3H?
Vishay
