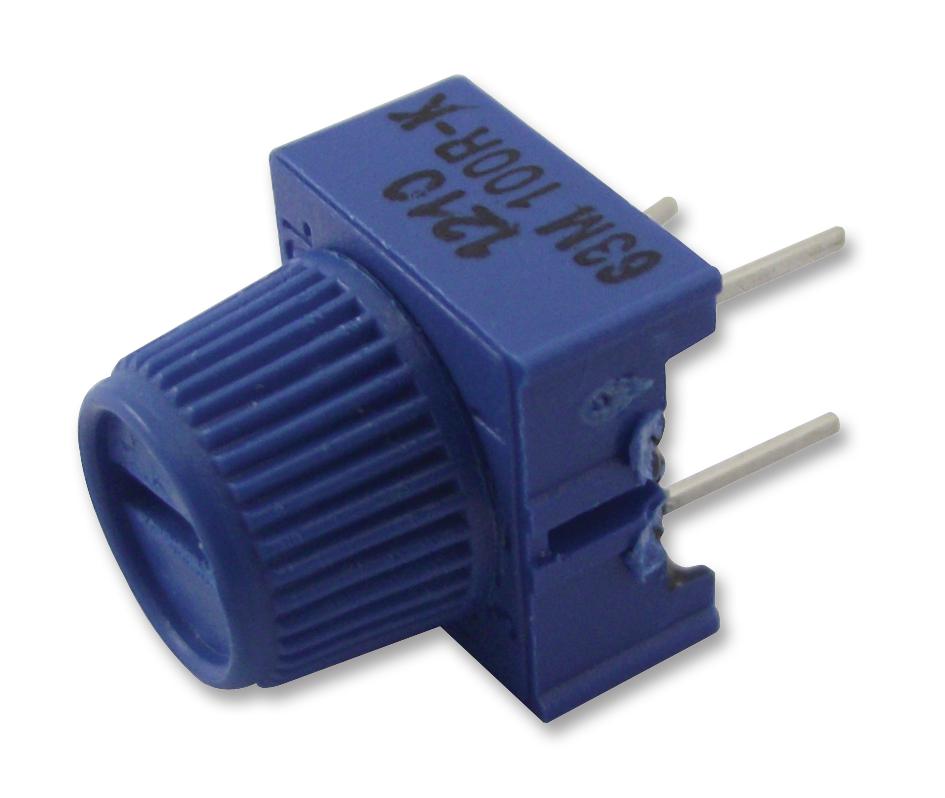

Vishay M63M203KB30T607 Cermet Trimmer
The Vishay Spectrol Model 63 cermet trimmer is a precision single-turn potentiometer with a 270° effective travel, ideal for fine adjustments in electronic circuits. It features multiple pin configurations for top or side adjustment, high mechanical and electrical stability, RoHS compliance, and a robust IP64 sealing rating. The unit boasts a resistance range of 100Ω to 2 MΩ with ±10% tolerance, a maximum power rating of 0.5 W at +70°C, and a temperature range from -55°C to +125°C, making it suitable for demanding industrial applications.
Vishay M63M203KB30T607 Cermet Trimmer Specifications:
- Resistance Range: 100Ω to 2 MΩ
- Resistance Tolerance: ±10%
- Effective Travel: 270°
- Mechanical Travel: 300° ±50
- Power Rating: 0.5 W at +70°C, derated to 0 W at 125°C
- Temperature Range: -55°C to +125°C
- Dielectric Withstand Voltage: 1000 Vac at sea level
- Insulation Resistance: ≥1000 MΩ at 600 V
- Circuit Diagram: Available
- Sealing: IP64
- Weight: Approx. 0.85 g
- Terminals: Pure Sn (code 3)
Buy the Vishay Series 63 Cermet Trimmer: M63M203KB30T607
Experience precise electronic tuning with the Vishay Series 63 Cermet Trimmer. Featuring a 270° travel, resistance from 100Ω to 2 MΩ, IP64 sealing, and RoHS compliance, this high-quality component ensures reliable performance in demanding industrial and electronic circuits. Its robust construction and wide temperature range of -55°C to +125°C make it suitable for various demanding environments. Effortlessly install with multiple pin configurations for top or side adjustment, making it an essential part for engineers and technicians seeking durability and accuracy.
Buy Vishay Series 63 cermet trimmer M63M203KB30T607 now and experience unmatched reliability and precision in electronic adjustments for industrial applications.
Frequently Asked Questions
Where can I buy Vishay M63M203KB30T607?
You can click on the BUY or RFQ button to purchase M63M203KB30T607 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M63M203KB30T607?
You can download the M63M203KB30T607 datasheet or visit the Vishay website for support.
Who is the manufacturer of M63M203KB30T607?
Vishay
