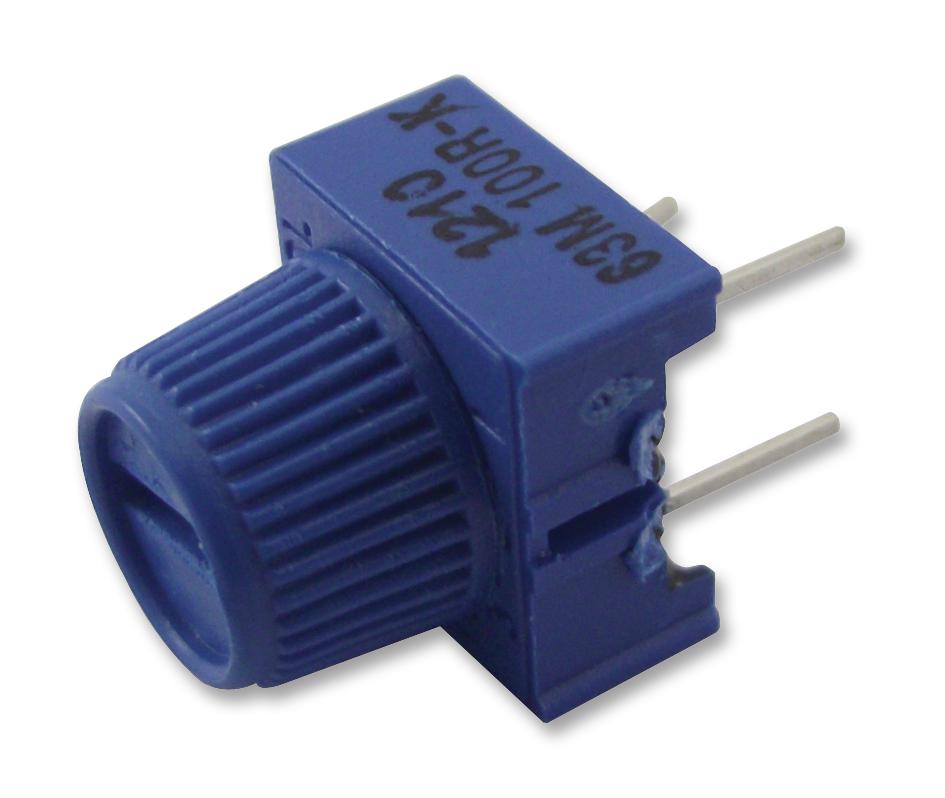

Vishay M63M504KB30T607 Cermet Trimmer
The Vishay Spectrol 3/8 inch Square Single-Turn Cermet Trimmer offers precise, repeatable adjustments with arrow guides, a solid end stop, and an O-ring seal for solvent washing. Designed for high reliability, it features multi-finger wipers for better contact resistance, a robust housing with secured pins, and complies with RoHS standards. Available in various pin configurations and with multiple knob styles, it suits applications requiring stable resistance in compact packages. Its resistance range spans 100Ω to 2MΩ with a tolerance of ±10%, ideal for precision electronic adjustments and circuit calibration.
Vishay M63M504KB30T607 Cermet Trimmer Specifications:
- Effective travel: 270° nominal
- Resistance range: 100Ω to 2MΩ
- Resistance tolerance: ±10%
- End resistance: 2Ω or 1% whichever is greater
- Temperature coefficient: + 100 ppm/°C
- Power rating: 0.5 W at +70°C, derated to 0 W at 125°C
- Maximum voltage: 250 V
- Dielectric withstand voltage: 1000 Vac at sea level
- Insulation resistance: 1000 MΩ minimum
- Mechanical travel: 300° +50°
- Starting torque: 35 mNm max.
- Weight: 0.85 g
- Terminals: Pure Sn (code 3)
- Sealing: IP64
- Climatic category: 56/125/21
- Vibration: 98 m/s², 10Hz to 500Hz
- Mechanical life: 200 cycles
- Terminal strength: 1 kg min.
- Temperature range: -55°C to +125°C
- Certifications: RoHS compliant
Buy the Buy Vishay Spectrol Square Single-Turn Cermet Trimmer Part Number M63M504KB30T607 Online
Purchase the Vishay Spectrol Cermet Trimmer online today to benefit from high accuracy, rugged construction, and sealed design ideal for precise electronic adjustments. Its 3/8 inch square form factor and single-turn operation provide excellent control for circuit calibration and fine-tuning. With a resistance range of 100Ω to 2MΩ and a tolerance of ±10%, it ensures reliable performance in various environmental conditions. Speed up your projects by ordering this sealed, RoHS-compliant trimmer with multiple configurations available for quick, efficient assembly.
Order your Vishay SeriesM63M504KB30T607 precision trimmer today and enhance your circuit calibration with reliable, compact, and sealed adjustment solutions.
Frequently Asked Questions
Where can I buy Vishay M63M504KB30T607?
You can click on the BUY or RFQ button to purchase M63M504KB30T607 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M63M504KB30T607?
You can download the M63M504KB30T607 datasheet or visit the Vishay website for support.
Who is the manufacturer of M63M504KB30T607?
Vishay
