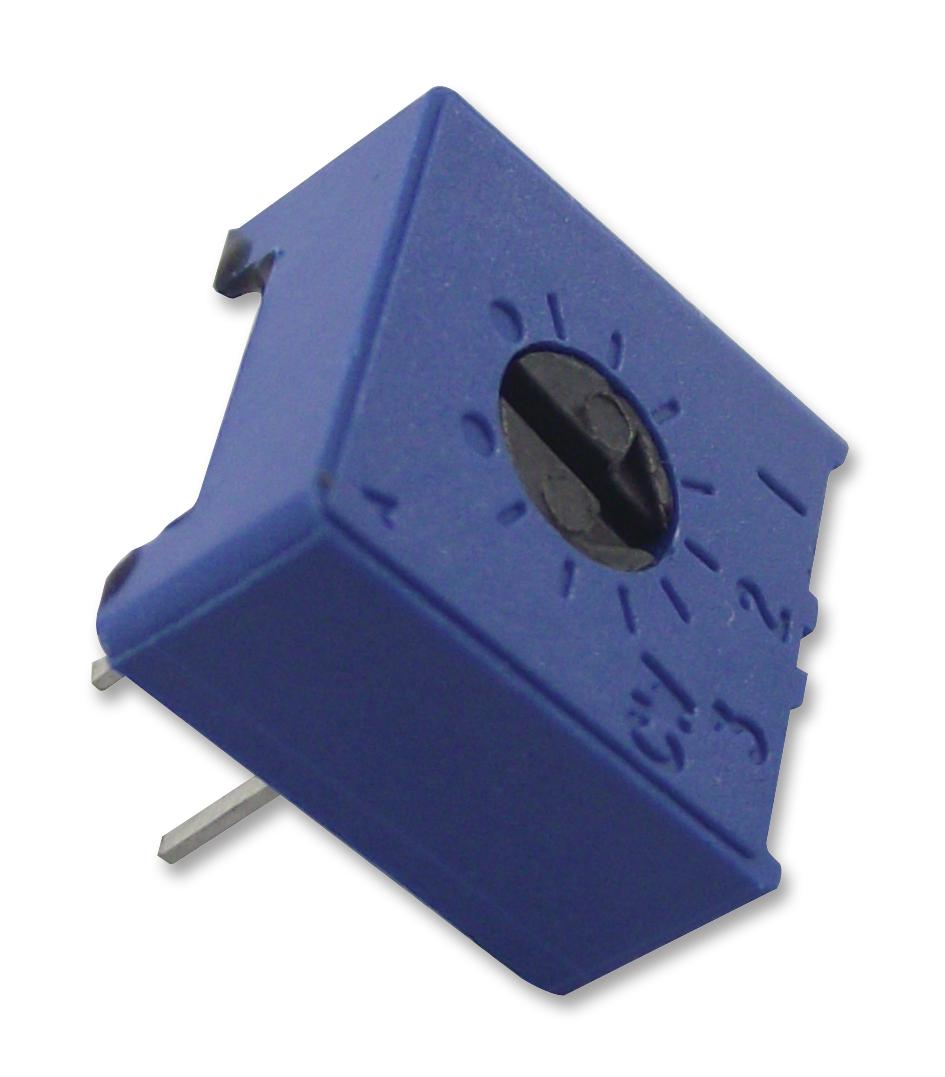

Vishay M63P103KB40 Precision Trimmer
The Vishay Spectrol 63P series is a reliable 3/8-inch square single-turn cermet trimmer potentiometer designed for precise, repeatable adjustments in electronic circuits. Equipped with arrow and graduations for easy setting, an 'O' ring seal for solvent and aqueous washing, and multi-finger wiper contacts, it ensures low contact resistance and stability. Suitable for high-precision applications, this model features a resistance range from 100Ω to 2MΩ with a tolerance of ±10%, and a thermal coefficient of +100 ppm/°C, making it ideal for automatic control and calibration tasks.
Vishay M63P103KB40 Precision Trimmer Specifications:
- Resistance range: 100Ω to 2MΩ
- Resistance tolerance: ±10%
- Effective travel: 270° nominal
- Temperature coefficient of resistance: +100 ppm/°C
- Power rating: 0.5 W at +70°C, derated to 0 W at 125°C
- Maximum voltage: 250 V
- Dielectric withstand voltage: 1000 Vac at sea level
- Insulation resistance: ≥1000 MΩ at 600 V
- Mechanical travel: 300° +50
- Starting torque: ≤35 mNm
- Environmental temp range: -55°C to +125°C
- Sealing: IP64
- Climatic category: 56/125/21
- Terminals: Pure Sn (code 3)
Buy the VISHAY 63P103KB40 – Reliable Trimmer for Industrial Applications
Discover the Vishay 63P series precision trimmer, a compact and reliable component for electronic fine-tuning. Featuring a sealed IP64 design, multi-finger wiper, and a resistance range from 100Ω to 2MΩ with ±10% tolerance, it offers stable performance in calibration, control, and automation applications. Easy to adjust with arrow graduations for repeatability, this high-quality cermet trimmer ensures durability under harsh environmental conditions, operating effectively at temperatures from -55°C to +125°C, making it ideal for demanding industrial uses.
Order your Vishay Series 63P103KB40 trimmer today and enhance your electronic calibration projects with dependable precision and sealed performance.
Frequently Asked Questions
Where can I buy Vishay M63P103KB40?
You can click on the BUY or RFQ button to purchase M63P103KB40 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M63P103KB40?
You can download the M63P103KB40 datasheet or visit the Vishay website for support.
Who is the manufacturer of M63P103KB40?
Vishay
